Summary of Contents for Pilz PSS u2 P0 F/S PN
- Page 1 PSS u2 P0 F/S PN Remote I/O system PSS u2 Operating Manual-1003986-EN-08...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
..........................System reaction times ......................Substitute values ........................Installation ..........................General installation guidelines....................Dimensions in mm ........................Installing the head module......................Interfaces ..........................Wiring ............................General wiring guidelines ......................Connecting the module......................Operating Manual PSS u2 P0 F/S PN 1003986-EN-08... - Page 4 X3, X4 ............................8.1.6 RUN and DIAG ......................... 8.1.7 SO............................. Technical Details ........................Safety characteristic data ......................Order reference ........................10.1 Accessories ..........................EC declaration of conformity ....................UKCA-Declaration of Conformity ..................Operating Manual PSS u2 P0 F/S PN 1003986-EN-08...
-
Page 5: Introduction
This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. This documentation is valid for the product PSS u2 P0 F/S PN hardware version 3.0 or higher. It is valid until new documentation is published. - Page 6 It also highlights areas within the text that are of particular import- ance. INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PSS u2 P0 F/S PN 1003986-EN-08...
-
Page 7: Overview
Overview Overview Module features Application of the product PSS u2 P0 F/S PN: Head module to connect the system to PROFINET with PROFIsafe profile. The head mod- ule can be connected to an IO controller as an IO device. The product has the following features:... -

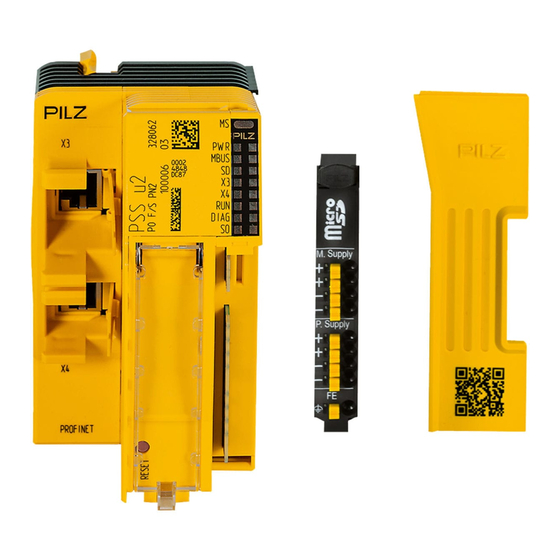

Page 8: Front View
Overview Front view [2] [3] [10] Fig.: Front view PSS u2 P0 F/S PN Legend Order number Hardware version Devices MAC address LED to display the device status and PROFINET status Terminal block for connecting the supply voltages (supplied with the device) -
Page 9: Safety
Safety Safety Intended use The module PSS u2 P0 F/S PN may only be used in the PSS u2 system. The module is designed for use in: Safety-related applications with – PROFINET with PROFIsafe profile Non-safety-related applications with – PROFINET The module meets the requirements of EN IEC 61508 up to SIL CL 3. -
Page 10: Safety Regulations
In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSS u2 P0 F/S PN | 10 1003986-EN-08... -
Page 11: Function Description
Data Periphery (FS/ST) Supply +24 V DC Fig.: Block diagram PSS u2 P0 F/S PN Supply voltage Module supply – Supplies voltage to the head module. – Supplies voltage to downstream modules (right-hand side) Periphery supply – Supplies voltage to the sensors, actuators and test pulses When the supply voltage is fed in separately, the module supply and periphery supply are galvanically isolated. -
Page 12: Integrated Protection Mechanisms
Operational entry in the error stack Impact after a restart: Inputs retain their current input values Substitute values are used for the outputs until the connection to the controller has been re-established. Operating Manual PSS u2 P0 F/S PN | 12 1003986-EN-08... -
Page 13: Profinet
– If a fault occurs, the module switches off the connected failsafe output modules. – The F-address is set via DIP switches or via the "PASconfig" tool. All the project data is stored in the head module. Operating Manual PSS u2 P0 F/S PN | 13 1003986-EN-08... -
Page 14: Mac Addresses
A maximum of 12 FS modules can be used A maximum of 4 FS input modules of type PSS u2 EF 8DI can be used A maximum of 8 FS output modules can be used Operating Manual PSS u2 P0 F/S PN | 14 1003986-EN-08... -
Page 15: Setting The F-Address
In the event of an error in the PROFIsafe group for the FS outputs – The VALID bit of the output modules becomes "0" – The PIO is set to its safe value (=zero). Operating Manual PSS u2 P0 F/S PN | 15 1003986-EN-08... -
Page 16: Projects
FS reaction time (max.) = 3 x FS cycle time + tProc = 6 ms + tProc tProc: Processing time of the input and output modules (see Technical details in the oper- ating manual for the respective modules). Operating Manual PSS u2 P0 F/S PN | 16 1003986-EN-08... -
Page 17: Substitute Values
Communication is stopped (even during firmware update) – FS modules and ST modules with expanded diagnostics (e.g. PSS u2 ES 16DOD 0.5A) use the substitute values "0" for all the inputs/outputs on the module. Operating Manual PSS u2 P0 F/S PN | 17 1003986-EN-08... -
Page 18: Installation
Damage due to electrostatic discharge! Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Operating Manual PSS u2 P0 F/S PN | 18 1003986-EN-08... -
Page 19: Dimensions In Mm
Installation Dimensions in mm 49,7 60,4 64,1 110,1 62,7 Fig.: Dimensions in mm Operating Manual PSS u2 P0 F/S PN | 19 1003986-EN-08... -
Page 20: Installing The Head Module
The mounting rail inter- lock must be in the open position, to the left. 2. Rotate the mounting rail interlock to the right to lock the head module on the mounting rail Operating Manual PSS u2 P0 F/S PN | 20 1003986-EN-08... -
Page 21: Interfaces
(e.g. through shock, vibration). Such measures include, for example, fixed installation and strain relief (see graphic "Options for attaching the data cable to the head module"). Operating Manual PSS u2 P0 F/S PN | 21 1003986-EN-08... - Page 22 Interfaces Fig.: Additional options for fastening the data cable on the head module and locking the connector using cable ties Remove the cable ties before pulling the plug. Operating Manual PSS u2 P0 F/S PN | 22 1003986-EN-08...
-
Page 23: Wiring
Details of the minimum range for cable cross sections on connection terminals can be found under "Technical details [ 29]". Use copper wiring. The mounting rail must be earthed on both sides. Operating Manual PSS u2 P0 F/S PN | 23 1003986-EN-08... -
Page 24: Connecting The Module
+24 V DC 0 V DC +24 V DC 0 V DC Earthing Infeed for Infeed for module supply periphery supply Fig.: Separate power supplies for module supply and periphery supply Operating Manual PSS u2 P0 F/S PN | 24 1003986-EN-08... - Page 25 Infeed for periphery supply Earthing Fig.: Common power supply for module supply and periphery supply Use the following fuses: Module supply: max. 6 A characteristic B/C Periphery supply: max. 10 A characteristic B/C Operating Manual PSS u2 P0 F/S PN | 25 1003986-EN-08...
-
Page 26: Operation
The head module contains a number of status LEDs, which provide information on the status of various system sections. MBUS DIAG Fig.: LEDs on the head module PSS u2 P0 F/S PN Legend LED on LED flashes LED flashes briefly LED off 8.1.1... -
Page 27: X3, X4
LED. Various operating and fault states are displayed via the LEDs. X3, X4 Colour State Meaning No network connection Green Network connection present Green Data traffic is error-free Operating Manual PSS u2 P0 F/S PN | 27 1003986-EN-08... -
Page 28: Run And Diag
Other PROFIsafe groups may be in operation. green One or more PROFIsafe groups in operation green One or more PROFIsafe groups require reintegra- tion (e.g. after swapping an FS module) Operating Manual PSS u2 P0 F/S PN | 28 1003986-EN-08... -
Page 29: Technical Details
IO-Device Environmental data Climatic suitability EN 60068-2-1, EN 60068-2-14, EN 60068-2-2, EN 60068-2-30, EN 60068-2-78 Ambient temperature In accordance with the standard EN 60068-2-14 Temperature range 0 - 60 °C Operating Manual PSS u2 P0 F/S PN | 29 1003986-EN-08... - Page 30 2500 V Potential isolation between Module Supply and PROFINET Type of potential isolation Functional insulation Rated surge voltage 1500 V Mechanical data Material Housing PC, PPE Bottom Connection type Spring-loaded terminal Operating Manual PSS u2 P0 F/S PN | 30 1003986-EN-08...
-
Page 31: Safety Characteristic Data
The safety-related characteristic data (PFH, PFD) are mean values. They have been calcu- lated at an average ambient component temperature of 40 °C and apply for the ambient temperature range stated in the technical details. Operating Manual PSS u2 P0 F/S PN | 31 1003986-EN-08... -
Page 32: Order Reference
Labelling strips for electronic module 23.5 x 328913 (10 pcs.) 10.5 mm (10 x DIN A4 sheet) PSS u2 A LA E2 Labelling strips for electronic module 103 x 328914 (10 pcs.) 10.5 mm (10 x DIN A4 sheet) Operating Manual PSS u2 P0 F/S PN | 32 1003986-EN-08... -
Page 33: Ec Declaration Of Conformity
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany Operating Manual PSS u2 P0 F/S PN... -
Page 34: Ukca-Declaration Of Conformity
2008. The complete UKCA Declaration of Conformity is available on the Internet at www.pilz.com/ support/downloads. Representative: Pilz Automation Technology, Pilz House, Little Colliers Field, Corby, Northamptonshire, NN18 8TJ United Kingdom, eMail: mail@pilz.co.uk Operating Manual PSS u2 P0 F/S PN... - Page 35 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
