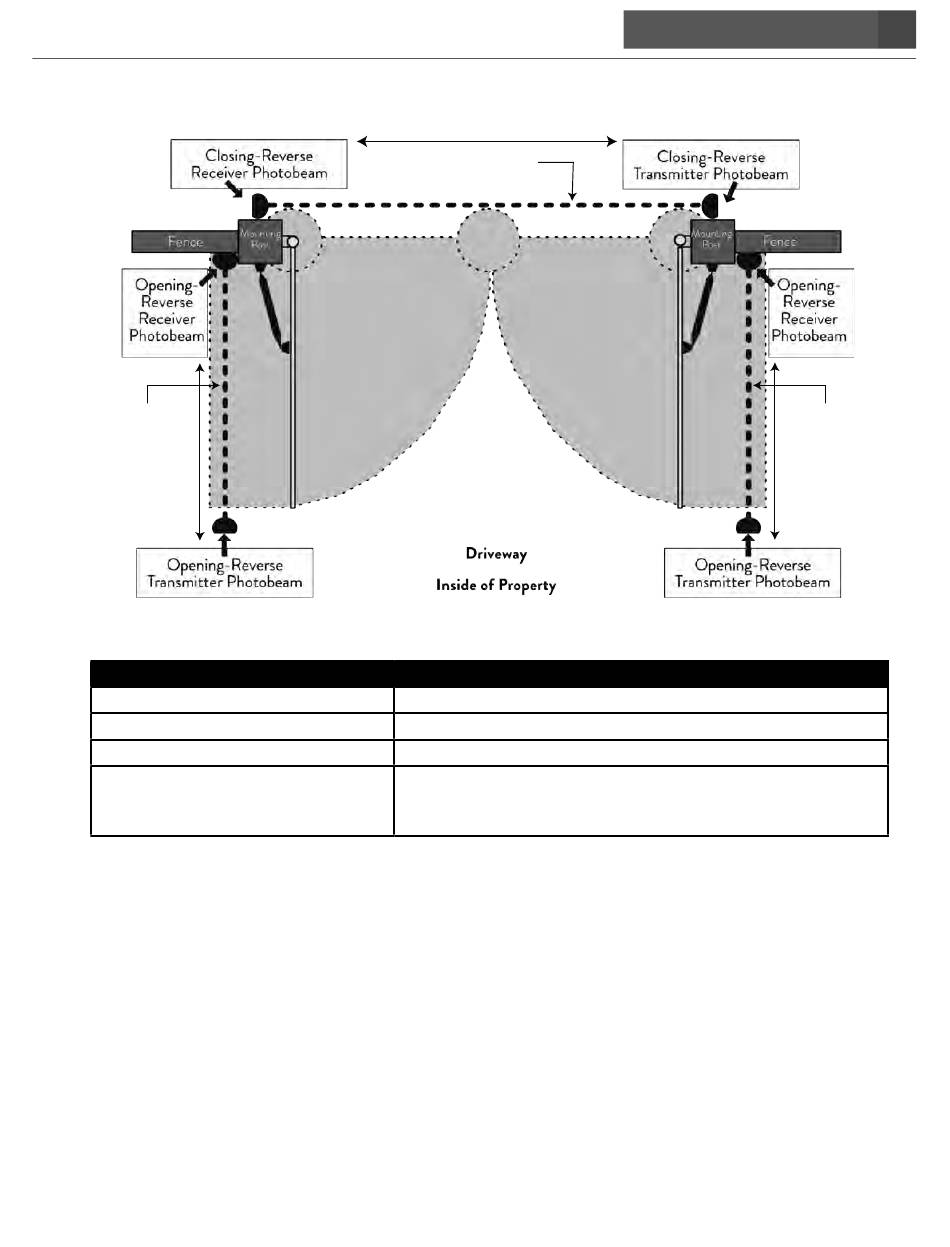

PHOTO BEAM
PAIR 2
Optional
ENTRAPMENT AREA
Between gate and post
Pinch point between opener and gate
Path of the moving gate
Leading edge of gate and pinch point
between gates in a dual gate installation
PHOTO BEAM
PAIR 1
Optional
Keep hands, feet, and pets away from this area when gate is in motion.
Keep hands, feet, and pets away from this area when gate is in motion.
All one zone
The leading edge of the gate in motion can easily cause injury to
people, pets, or livestock, and will damage property including
vehicles if it comes into contact with them.
