INSTALLING THE CONTROL BOX AND BATTERY BOX*
FOR YOUR PULL-TO-OPEN SYSTEM
*IF YOU DO NOT HAVE A BATTERY BOX (ABBT2) AND ARE USING A
DEEP CYCLE MARINE BATTERY INSTALL THE CONTROL BOX.
STEP 7. Determine the mounting location for the control and battery box. The battery and control
box must be located within 4 feet of each other. Then install.
NOTE
Mount the control and battery box a minimum of 3 feet above the ground to keep dirt and water from damaging the
control board and within 4 feet of the operator arm in order for the operator cable to reach the control box.

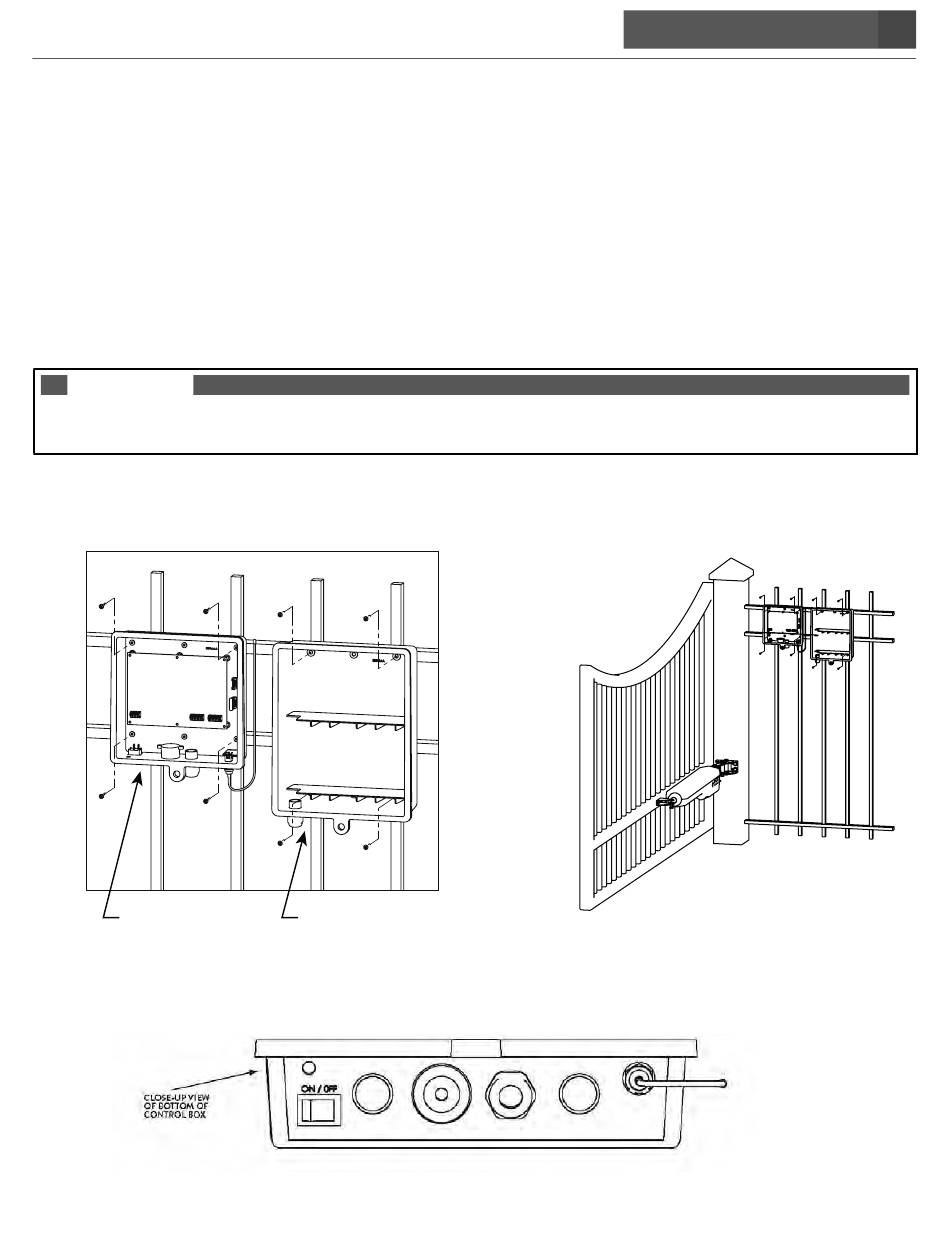

A . Pre-drill (4) holes (7/32˝ drill bit) in backside of control and battery box, and through the fencing where you
will be securing the control and battery box to.
Control Box
B. Now use the (4) supplied phillips screws for both boxes to mount the control and battery box to the fence.
C. Make sure the on/off switch on the bottom of control box is in the off position.
Battery Box
