HARDWARE INSTALLATION

Step 1. Connect Network Interfaces
Connect the device to a local network using any of the available physical network interfaces. All interfaces
will receive a dynamic address via DHCP and DHCPv6.

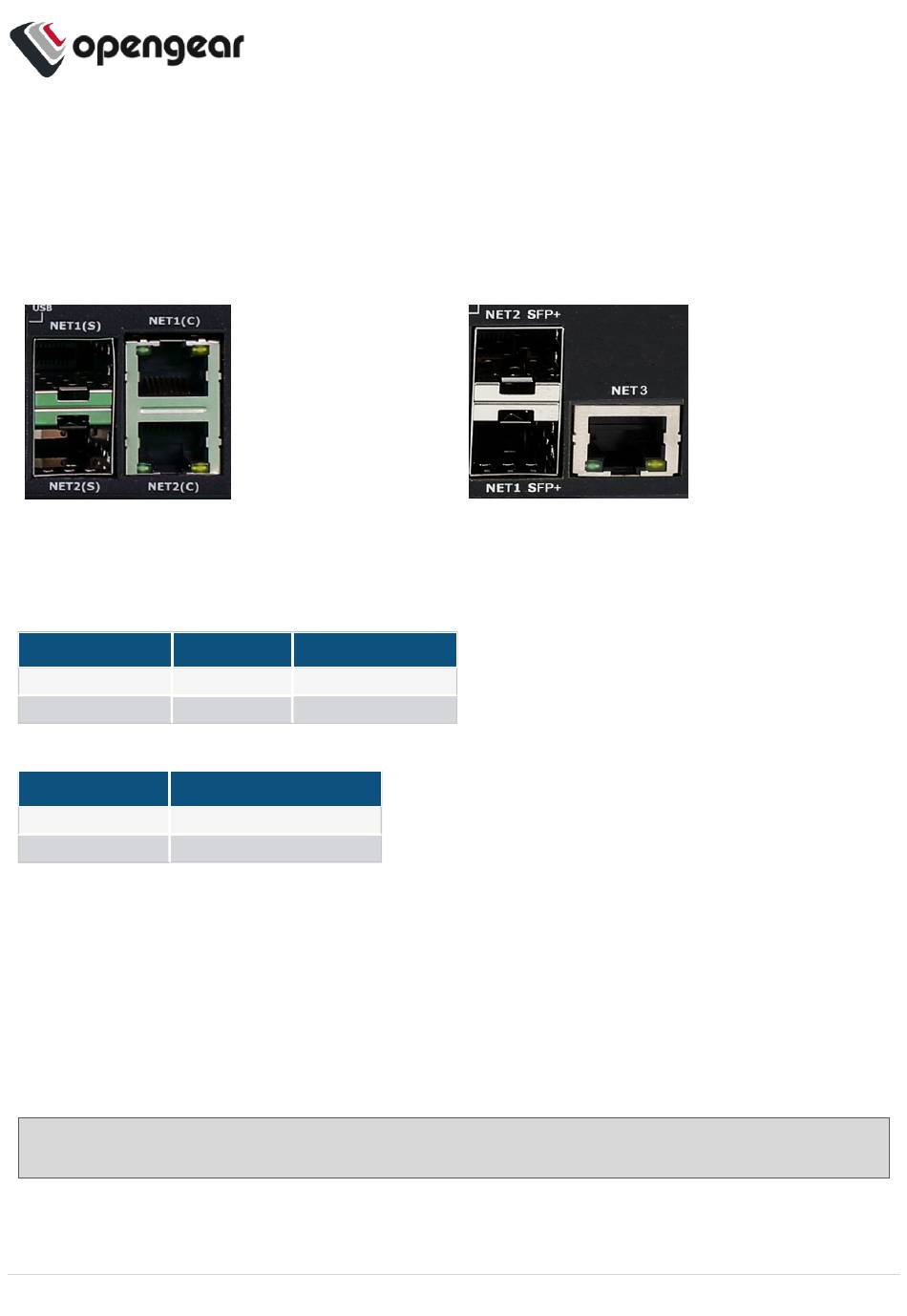

Figure: Network interfaces for 1Gb Ethernet models
Additionally, the device can be accessed from a computer or local network via a static IPv4 address as
shown in Table: Default static interface
Model Interface
1Gb Ethernet NET1
10Gb Ethernet NET3
Table: Default static interface connection
Firewall Zone Network Interfaces
WAN , NET3
LAN NET2
Table: Default firewall zones for interfaces
Step 2. Connect Cellular Antennas
For -L models, attach the included antennas or external mount to the CELL (MAIN) and CELL (AUX)
connectors.
If you have a data plan, insert a carrier-provided mini-SIM into the first SIM card slot (slot 1) with contacts
facing upward.
Note: You will hear a click when it is correctly inserted.
Figure: Network interfaces for 10Gb Ethernet models
connection.
Static Address
192.168.0.1/24
192.168.0.1/24
