REGISTER
This Quick Start Guide covers basic installation and configuration of the OM2200. For detailed guidance,
consult the Operations Manager User Guide: https://opengear.com/support/documentation/.
Register your product:
When you register, you:
Activate your warranty.
l
Get notified when firmware updates are released: https://opengear.com/support/device-updates/
l

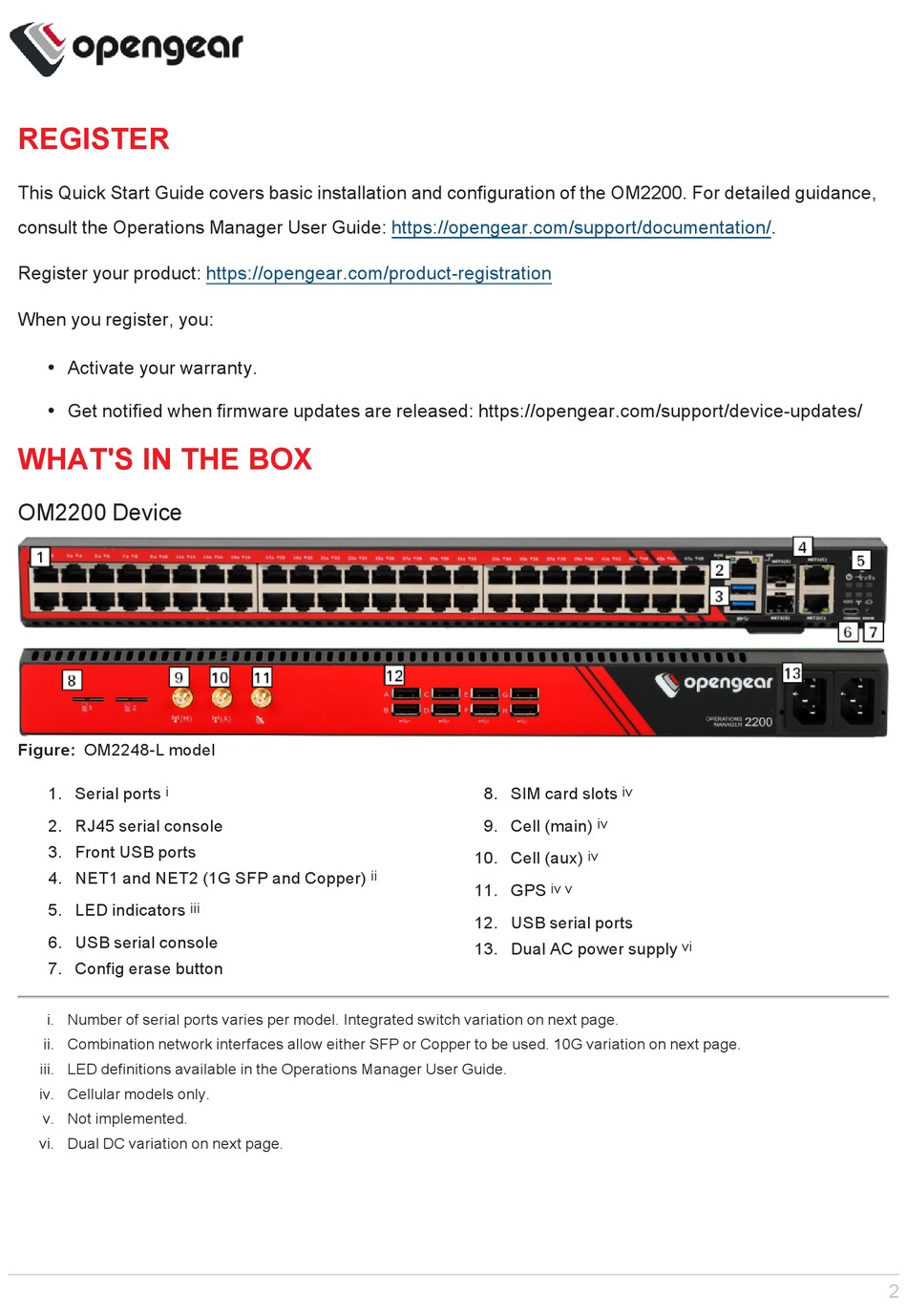

WHAT'S IN THE BOX

OM2200 Device
Figure: OM2248-L model
i
1. Serial ports
2. RJ45 serial console
3. Front USB ports
4. NET1 and NET2 (1G SFP and Copper)
5. LED indicators
6. USB serial console
7. Config erase button
i. Number of serial ports varies per model. Integrated switch variation on next page.
ii. Combination network interfaces allow either SFP or Copper to be used. 10G variation on next page.
iii. LED definitions available in the Operations Manager User Guide.
iv. Cellular models only.
v. Not implemented.
vi. Dual DC variation on next page.
https://opengear.com/product-registration
iii
8. SIM card slots
9. Cell (main)
10. Cell (aux)
ii
11. GPS
12. USB serial ports
13. Dual AC power supply
iv
iv
iv
iv v
vi
2
