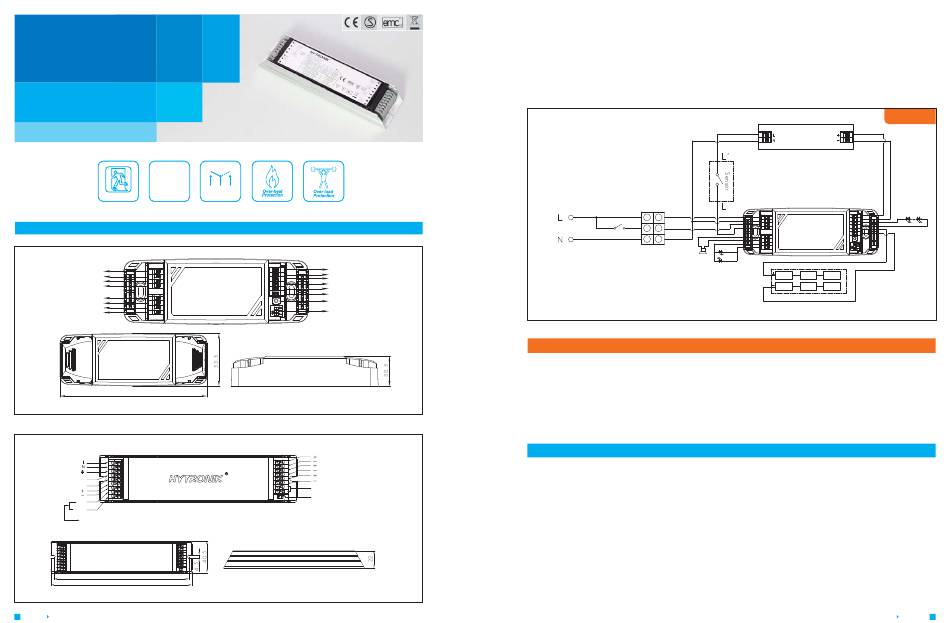

Hytronik HEM06-T Quick Start Manual

Emergency LED Driver

Advanced Version
Model: HEM06-T HEM07-T
EL -T
Self-testing
Emergency Driver
Emergency

Mechanical Structure

Model: HEM06-T
L
N
Lin
Lout
+
Buzzer
-
Red
LED
Black
150
Model: HEM07-T
Lin
Lout
Buzzer
Red
Black
LED indication
172.5
180
Hytronik LED driver
25
3W 6W
Dual Wattage
Emergency Driver
+
From LED driver
-
+
Output to LEDs
-
+
Battery supply
-
Reset
3W output
6W output
From driver
Output to LEDs
Battery supply
Reset
Emergency time
selection
This emergency lighting module is designed to convert a wide range of LED types, and is an ideal choice for converting most standard LED
luminaires and arrays containing from 4 to 22 ( HEM06-T ) or 4 to 20 ( HEM07-T ) LEDs in series.
This unit is designed to utilize the existing LED driver and panel layout (no need to break into the LED circuit) to be dimmed to 3W/6W in case
of emergency.
The driver can automatically adjust the output LED current to provide the optimum match between the battery and the load, which enables
maximum illumination whilst ensuring full battery duration. The driver is compatible with a wide range of LEDs such as Philips Fortimo DLM, SLM
and LLM ranges, Bridgelux LS/ES/RS ranges, Citizen 4~41W ranges, GE Infusion, Xicato and many others.
Connection
Unswitched
On-off

Highlights

• Dual wattage and duration selection:
HEM06-T: 3W @ 3 hrs; 6W @ 1h / HEM07-T: 3W @ 3hrs; 3W @ 1h
• Built-in MCU programed self-testing, maintenance free
• Automatic output current adjustment
• Wide range of LEDs in series (HEM06-T: 12~70V / HEM07-T: 12~55V)
• With both LED indication and Buzzer warning

Self-testing Feature

Carrying out routine test on emergency lighting and holding records of the test result is requred by the law. (IEC62034, BS5266, EN50172).
Hytronik advanced LED emergency control model HEM06-T has a internal clock, programmed to interrupt the permanent mains supply at
pre-determined intervals to perform the requested routine testing: 3min. funcitonal test every month, and 1h (3W) & 20min (6W) function test
every 6 months, and 3h (3W) & 1h (6W) function test every 12 months.
----- - Self-test starts after the luminaire are connected to mains for continued 48 hours.
----- - Auto-commissioning, save manpower and maintenance.
----- - Permanently monitors battery and charge condition
----- - Dual failure indication: failures are clearly identified on the luminaire by red LED and buzzer.
----- - MCU programmed test schedule:
HEM06-T: 3min @ every month;1h (3W) & 20min (6W) @ 6 months; 3h (3W) & 1h (6W) @ 12months.
HEM07-T: Emergency time 3h: 3min @ every month;1h (3W) @ 6 months; 3h (3W) @ 12months. (ex-work defaut value)
Emergency time 1h: 3min @ every month;20min (3W) @ 6 months; 1h (3W) @ 12months.
----- - Au tom atic delay ed test in case of po wer f ail ure at p ro gramed testing period .

Wiring Diagram

LED Driver
LED
From LED Driver +
L
-
N
+
Lin Output to LEDs
-
Lout
+
HEM06-T Battery supply
-
+
Buzzer Reset
-
Red 3W
LED Indication Output
Black 6W
Red
Green
1.2V 1.2V 1.2V
1.2V 1.2V 1.2V
Battery
Good compatibility with various brands of LED in the market
•
• Deep discharge protection
• Constant current charger •
• High temperature NiMH/Nicd cells
• 5-Year product warranty
