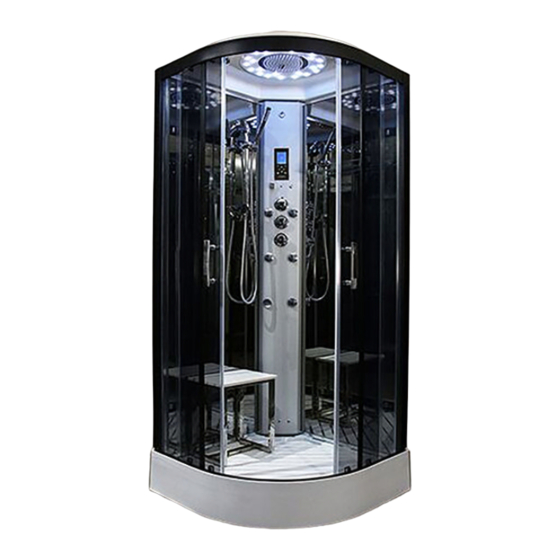

Insignia Platinum 900 Installation Manual

Hide thumbs Also See for Platinum 900:
Table of Contents

Advertisement

Quick Links

Download this manual

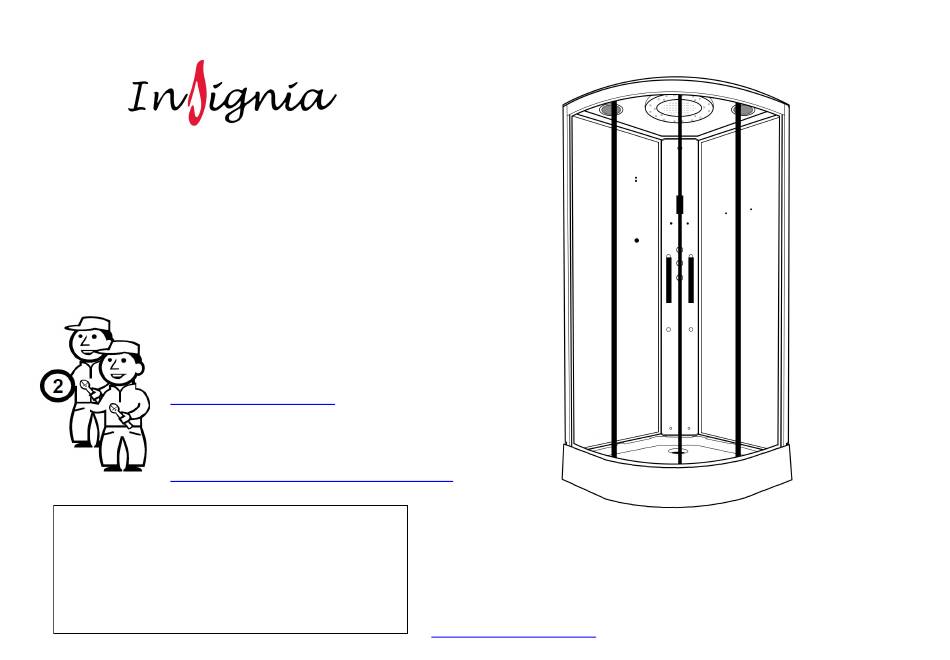

INSTALLATION MANUAL
800|900|1000
Platinum Series
30 Day Technical Support:
Call 01908 317512 and request technical support for aiding your
installation.
Replacements Parts:
https://www.insigniashowers.com, click support and make a
warranty claim.
Spares/Replacements Parts:
https://www.insigniashowers.com/replacement-parts.html
ATTENTION INSTALLERS:
These instructions must be
left with the customer
www.insigniashowers.com
Inside of your warranty period visit:
Outside of your warranty period visit
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
WARRANTY REG NO: _______________________
To claim your full 5 year warranty, register your shower within 90 days visit:
https://www.insigniashowers.com, click support and register for your warranty
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!
Last Modified: 22/04/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum 900 and is the answer not in the manual?

Questions and answers

Related Manuals for Insignia Platinum 900

Summary of Contents for Insignia Platinum 900

  • Page 1 www.insigniashowers.com Last Modified: 22/04/2022 INSTALLATION MANUAL 800|900|1000 Platinum Series 30 Day Technical Support: Call 01908 317512 and request technical support for aiding your installation. Replacements Parts: Inside of your warranty period visit: https://www.insigniashowers.com, click support and make a warranty claim. Spares/Replacements Parts: Outside of your warranty period visit https://www.insigniashowers.com/replacement-parts.html...

  • Page 2: Table Of Contents

    www.insigniashowers.com Last Modified: 22/04/2022 Contents Installation Assistance (Video Links) Water Valve Connections Control Panel Connections Thank you for your purchase Tips for assembly Steam Generator Connections Signing off your shower Braided Hose QR Code/Link Control Panel Operating Instructions Electrical/Pressure/Tool requirements Spare Parts List Box contents Steam Room &...

  • Page 3: Installation Assistance (Video Links)

    www.insigniashowers.com Last Modified: 22/04/2022 Installation Assistance Looking for assistance with the Install? GREAT NEWS! We have our easy to follow Installation videos live online NOW to make your installation process easier than ever before! Simply click the link below and watch the installation process.
  • Page 4 Last Modified: 22/04/2022 Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
  • Page 5 TIP 4—Sealing When using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and will not adhere as intended. Rubbergum is immediately waterproof and will gain additional strength over time.
  • Page 6 www.insigniashowers.com Last Modified: 22/04/2022...
  • Page 7 www.insigniashowers.com Last Modified: 22/04/2022 Electrical Requirements Pressure/Water Requirements Tools Required STEAM VERSION We recommend a BAR pressure between 2.5 and 3.4 BAR. If You will require: you have a combi boiler system no problem should be Voltage Rating 220-240AC experienced. If you have a gravity feed older type installation •...

  • Page 8: Box Contents

    10mm Screws ST16 16mm Screws VERY IMPORTANT ST20 or WN20 20mm Nut and Bolt or Wing Nut Have you got everything? If not please contact the Insignia directly on 01908 317 512. AMI01 Jubilee Clip (For steam version only) Remember NEVER book your tradesman until everything has arrived, been checked and is present.
  • Page 9 www.insigniashowers.com Last Modified: 22/04/2022 Step 1 — Level the Tray and connecting the waste Twist to adjust Waste connection HOUSE to SHOWER. Always use a McAlpine or similar approved 40mm compression joint fitting. Never use glued joints! Your waste hose is specifically designed not to accept glued joint fittings.
  • Page 10 www.insigniashowers.com Last Modified: 22/04/2022 Step 2 — Connecting framework Framework securing clips x4 Internal View Wider rail on top Narrow rail at the bottom...
  • Page 11 www.insigniashowers.com Last Modified: 22/04/2022 Step 3 — RubberGum the tray Apply RubberGum to raised sections of the tray and remove backing paper. Step 4 — Fix framework to the tray PRESS FRAME DOWN FIRMLY ONTO THE RUBBERGUM.
  • Page 12 www.insigniashowers.com Last Modified: 22/04/2022 Step 5 — Connecting the back panels ST16 x12 PRESS PANELS DOWN FIRMLY ON TO THE RUBBERGUM. DO NOT SCREW BACK PANELS TO THE TRAY.
  • Page 13 www.insigniashowers.com Last Modified: 22/04/2022 Step 6—AMI Install— Please note: If supplied with this version, it may already be fitted. If it is, please skip this step. Place in middle hole first Turn Tri-Jet to tighten Use Allen key to tighten left chrome outlet Use Allen key to tighten right chrome outlet Note: Connect the 1 metre...
  • Page 14 www.insigniashowers.com Last Modified: 22/04/2022 Step 7 — Column Connection ST20 x 12 SW9 x 12 WN20 x 12 Rear View (attach nuts and bolts or wing nuts from rear) Below diagram shows the nut/bolt install ———————— ———————— NOTE: Column features varies between models...
  • Page 15 www.insigniashowers.com Last Modified: 22/04/2022 Step 8 — Fixed Glass Connection ST16 x 2 Internal View Use outer hole Slide glass in Repeat process for other side Attach Upright...
  • Page 16 www.insigniashowers.com Last Modified: 22/04/2022 Step 9 — Fitting the glass seals Fit seal inside the shower between the glass and framework 12mm 2x 12mm Seals 2x 7mm Seals Step 10 — Fitting the door stops Internal View — Top Rail ST10 x8 SP072 x8 Internal View —...
  • Page 17 www.insigniashowers.com Last Modified: 22/04/2022 Step 11 — Attaching the Roof Screw from the rear ST16 x6 Step 12 — Fit door handles, seals and magnets...
  • Page 18 www.insigniashowers.com Last Modified: 22/04/2022 Step 13 — Fit top door wheels x 4 Tighten to secure wheels into door runners. DO NOT OVERTIGHTEN Slide cover off Door Step 14 — Fit bottom door wheels x 4 Slide cover off Door Step 15 —...
  • Page 19 www.insigniashowers.com Last Modified: 22/04/2022 Step 16 — Accessory Installation Slide cover off Slide cover off...
  • Page 20 www.insigniashowers.com Last Modified: 22/04/2022 Step 17 — Valve/Water Connections Monsoon Head Jets Hand Shower 2 x Washers located on the back of the valve Cold Water Inlet Hot Water Inlet Outlet for Steam version only...

  • Page 21: Control Panel Connections

    www.insigniashowers.com Last Modified: 22/04/2022 Step 18 — Control Panel Connections Steam Version Shower Cabin Version Roof Light Speaker Power Supply Antenna Speaker...

  • Page 22: Steam Generator Connections

    Water Inlet: When installing the water line for the steam generator, there are 2 options available: • Purchase Insignia’s WRAS approved braided hoses—different packs are available for different shower types. • Install a static water line from the shower valve (middle feed) to the steam generator. Even with a static water line, flexible hosing will still be required for the hot and cold water feeds.

  • Page 23: Signing Off Your Shower

    3. Do not aim the hand shower directly at the joints of your shower as this does not fall under “normal showering conditions”. However, due to Insignia’s unique design of the shower tray, water will only leak back in to the tray so you won’t get flooded.

  • Page 24: Control Panel Operating Instructions

    Press once to turn on the panel. Simply press again to turn it off. When powering down the 03 will automatically start and last for approximately 10 minutes. After this the screen will power off. To see our tutorial videos for operating Insignia control panel’s, please search for “Insignia Showers” on YouTube and find our “Insignia Control Panel”...
  • Page 25 www.insigniashowers.com Last Modified: 22/04/2022 Bluetooth Connectivity and Radio Tuning Instructions Connecting to Bluetooth Step 2 Step 1 Then simply go on your device and pair To connect a device via up with the shower which should be Bluetooth, press the music shown as “INS”.
  • Page 26 When the Bluetooth is activated this will skip to the next song in your playlist. To see our tutorial videos for operating Insignia control panel’s, please search for “Insignia Showers” on YouTube and find our “Insignia Control Panel” Playlist, or you can...
  • Page 27 Last Modified: 22/04/2022 Parts List Part Code Part Description SP337 Insignia Control Panel (non SP300 Waste hose -steam version only) SP333 Monsoon Shower head SP301 White insulated pipe SP078 Ozone Module (steam version only) SP020 Insignia Control Panel (steam version only)

  • Page 28: Steam Room & Shower Safety Guide

    www.insigniashowers.com Last Modified: 22/04/2022 Steam Room & Shower Safety Guide Never leave children unattended in the shower or bath. Never bath children (under 12) using whirlpool function if fitted. Regulate the temperature of water before showering. Never allow children to use the steam function. This function is for ADULTS ONLY. Always be aware of the steam outlet position.

  • Page 29: Steam Room Usage Guide

    www.insigniashowers.com Last Modified: 22/04/2022 Steam Room Usage Guide To use the steam room, turn the control panel on. (1) Press the steam button (2) and your generator will be fed with water and the heating element will begin to heat the water to create steam. (You should be seeing steam from your outlet in approximately 60-90 seconds) To set the temperature you want the cabin to reach, press the function button (3) once the steam is active.

  • Page 30: How To Use Ami System

    www.insigniashowers.com Last Modified: 22/04/2022 How to use AMI System (2nd Gen) Your platinum shower is fitted with the latest AMI system (Aromatherapy Modular Infusion) which takes your steam experience to new heights by enjoying fresh, clean, natural fragrance with the AMI Oil Diffuser Steam Guard. Perfectly designed to deliver the maximum amount of aroma in a matter of minutes.

  • Page 31: Bathroom Electrical Zones

    www.insigniashowers.com Last Modified: 22/04/2022 Bathroom Electrical Zones...
  • Page 32 www.insigniashowers.com Last Modified: 22/04/2022 There are 3 bathroom electrical zones that have been distinguished in the IEE wiring guidelines and these are: Zone 0 is the area inside a bath, basin or shower. It's characterised as 'any area within a bathroom that can hold water'. Any fitting or electrical appliance utilised inside zone 0 must be a maximum of 12 volts (SELV) and completely secured against both partial and total submersion in water (minimum of IPX7) Zone 1 is the region straight above zone 0 to the height of 2.25m from the base of the bath or shower.

  • Page 33: Weee Compliance Statement

    (EEE) have to fulfil certain obligations. Under the WEEE directive Insignia is considered the producer of certain products we supply and in line with the demands of the legislation we are pleased to offer the op- portunity to return these products to us for treatment and recycling.
  • Page 34 www.insigniashowers.com Last Modified: 22/04/2022...
