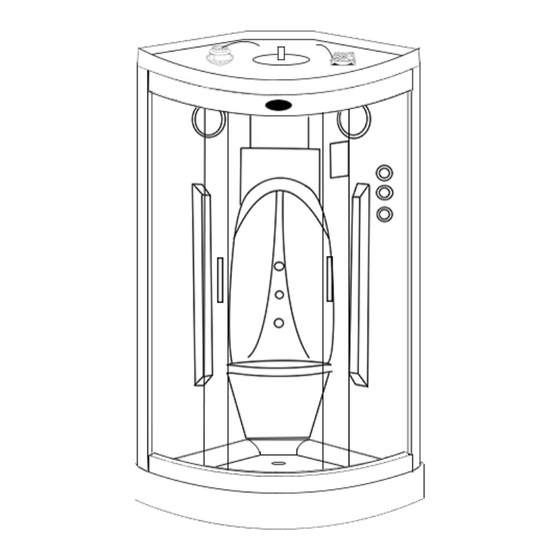

INSTALLATION MANUAL
GT9014
ATTENTION INSTALLERS:
These instructions must be
left with the customer
www.insigniarange.com
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!
WARRANTY REG NO: __________________________
to claim your full 5 year warranty, register your shower within 90 days at: www.insigniarange.co.uk/warrantyreg.aspx
Last Modified:27/01/2017
www.insigniarange.co.uk
30 Day Technical Support:
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier's details and your postcode to hand before calling)
Email:
customerservice@insigniarange.co.uk
Replacements Parts:
inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts:
outside of your warranty
contact 0844 800 3069
01908 226545
Advertisement
Related Manuals for Insignia GT9014
Summary of Contents for Insignia GT9014
- Page 1 Last Modified:27/01/2017 www.insigniarange.co.uk INSTALLATION MANUAL 30 Day Technical Support: 01908 226545 GT9014 (NOTE: This service is only available to customers from the day of delivery, please have your supplier’s details and your postcode to hand before calling) Email: customerservice@insigniarange.co.uk Replacements Parts: inside of your warranty contact: www.insigniarange.co.uk/customerService.aspx...
- Page 2 www.insigniarange.com Last Modified:27/01/2017 Contents Introduction Electrical Requirements What’s In The Boxes? Screw Pack Contents Plumbing Requirements Schematics Starting The Installation Electric Box Connections Sealing and Water Testing Control Panel Instructions Help Book Information Parts List...
- Page 3 Last Modified:27/01/2017 Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
- Page 4 www.insigniarange.com Last Modified:27/01/2017 ASSEMBLY AND PLUMBING THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILL AND FEELS CONFIDENT IN THEIR ABILITY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLE, READ THROUGH THE FOLLOWING PAGES IN DETAIL THEN DECIDE.
- Page 5 www.insigniarange.com Last Modified:27/01/2017 TOTAL ELECTRICAL REQUIREMENTS Voltage Rating 220 -240AC Frequency Rating 50HZ Power Rating 2.8KW Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation. UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way due to continued additions to current regulations.
- Page 6 www.insigniarange.com Last Modified:27/01/2017 Tool Requirements None Supplied Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill Adhesive Requirements Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints) Not Supplied Not Supplied Not Supplied Hardware Requirements A Hydro-Massage Shower requires 2 x 1 Metre Braided Hose...
- Page 7 www.insigniarange.com Last Modified:27/01/2017 Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word “DRY RUN”...
- Page 8 Note: In some cases you may have more screws than needed, this is done so you have spares! VERY IMPORTANT Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been checked and is present.
- Page 9 www.insigniarange.com Last Modified:27/01/2017 Pressure Requirements from your house supply We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump. We cannot advise on which type of pump is used, location or design because all house plumbing layouts vary.
- Page 10 www.insigniarange.com Last Modified:27/01/2017...
- Page 11 Please note the ‘U’ shaped channel is meant to face inwards to allow the glass to fit correctly. (Insignia logo on top rail) PLEASE NOTE The screw head needs to bypass the OUTER hole. If this...
- Page 12 www.insigniarange.com Last Modified:27/01/2017 Step 2 Take the 2 x pieces of flat side glass and run the plastic seal down 1 side of each piece and cut to length if required. Step 3 Align the 2 x side glass panels with the rubber seal into the glass frame as shown below and push tightly in to position.
- Page 13 www.insigniarange.com Last Modified:27/01/2017 Step 4 Offer your glass frame up to the tray Step 5 Taking the pre-fabricated back wall, offer it up to the tray and align to the front glass. Once you are happy with the overall position, remove the back wall and run a bead of silicone under the bottom of the back wall and place back on the tray.
- Page 14 www.insigniarange.com Last Modified:27/01/2017 Step 6 Screw the back wall to the tray using screw type ST25...
- Page 15 www.insigniarange.com Last Modified:27/01/2017 Step 7 Align the roof on to the top of the shower as shown below and secure in to position using screw type ST20 screws. Fill in any gaps with white silicone to seal the roof in place. Step 8 Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels are at their lowest position and hang on the inner curved rails with the wheels facing the...
- Page 16 www.insigniarange.com Last Modified:27/01/2017 Accessory Installation Handle Ensuring that the inner thread is protruding out from the handle far enough, place the handle on the outside of the door and secure by tightening the inner chrome knob to the protruding inner thread. Monsoon Head Attach the grey hose from your valve to the inner black tube using PTFE tape (please note this only needs to be...
- Page 17 Connect the corresponding hoses to the rear of the valve as shown. Device output may differ from the image. Please refer to your outer chrome faceplate in- side your Insignia shower as a reference point. IF YOUR DIAL DOES NOT CORROSPOND TO THE APPROPRIATE DEVICE: Turn on your water to the shower and note which output the water exits from then turn off the water and swap over the relevant hose.
- Page 18 www.insigniarange.com Last Modified:27/01/2017 Electric Box Connections Connect the cables below to the corresponding devices on the shower Roof Light Antenna RJ11 Phone Connection Speaker Back Lights 12V power Supply...
- Page 19 www.insigniarange.com Last Modified:27/01/2017 Silicone Seal where shown in red on the inside of the shower TESTING FOR WATER LEAKS LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALENT TO CURE AND ENSURE THE SHOWER IS AWAY FROM ITS FINAL POSITION TO ALLOW REAR VIEWING Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model dependent) on your shower.
- Page 20 www.insigniarange.com Last Modified:27/01/2017 TL-2070GS Control Panel Instructions Button 1 (+ VOL) Button 7 (FM) Volume Up Radio On/Off Button 2 (Down Arrow) Button 8 (LIGHT) Radio Search Down On/Off Button 3 (Up Arrow) Button 9 (FAN) On/Off Radio Search Up Button 4 (- VOL) Volume Down Button 5 (Power)
- Page 21 Last Modified:27/01/2017 Need Help? If so then simply download Insignia’s free comprehensive help and troubleshooting brochure now! Simply visit: www.insigniarange.co.uk/help.aspx...
- Page 22 Part Code Part Description Part Code Part Description Part Code Part Description SP063 Monsoon Shower head SP300 Waste hose GT9014-3 Bottom Rail SP040 Massage jet—2 open ends HOSE1MBB 1M braided hose w/ blue band SP040A Massage jet—1 open, 1 closed GT9014-4...
- Page 23 All images are registered with ImageTraker Insignia™ is a registered trademark of Maclean International Ltd All images are subject to copyright. Images may not be used in any way shape or form with out written permission from Maclean International Ltd. Images are NOT permitted...
