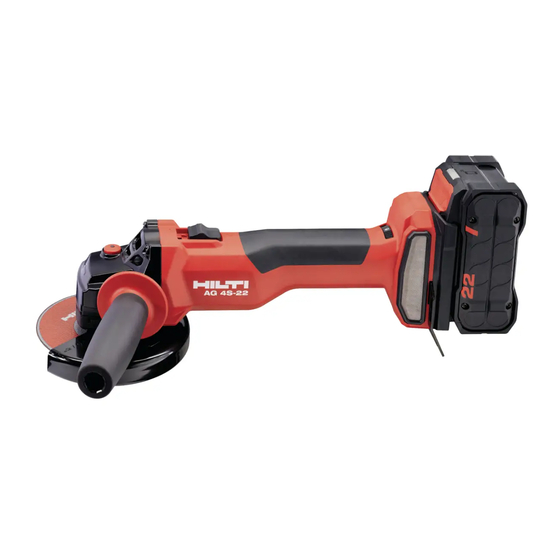

Hilti NURON AG 4S-22-125 Manual
  1. Manuals
  2. Brands
  3. Hilti Manuals
  4. Grinder
  5. NURON AG 4S-22-125
  6. Manual

Hilti NURON AG 4S-22-125 Manual

Hide thumbs Also See for NURON AG 4S-22-125:

Advertisement

Quick Links

Download this manual
AG 4S-22­125
English
1
‫ת י‬
‫ר ב‬
‫ע‬
20

Advertisement

loading
Need help?

Need help?

Do you have a question about the NURON AG 4S-22-125 and is the answer not in the manual?

Questions and answers

Related Manuals for Hilti NURON AG 4S-22-125

Summary of Contents for Hilti NURON AG 4S-22-125

  • Page 1 AG 4S-22­125 English ‫ת י‬ ‫ר ב‬ ‫ע‬...
  • Page 6 AG 4S-22­125 Original operating instructions ........‫ת...
  • Page 7 Comply with the operating instructions Instructions for use and other useful information Dealing with recyclable materials Do not dispose of electric equipment and batteries as household waste Hilti Li­ion battery Hilti charger 1.2.3 Symbols in illustrations The following symbols are used in illustrations: These numbers refer to the illustrations at the beginning of these operating instructions.

  • Page 8: Product-Dependent Symbols

    The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
  • Page 9 The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Work area safety ▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • Page 10 ▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 11 of filtrating particles generated by the particular application. Prolonged exposure to high intensity noise may cause hearing loss. ▶ Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
  • Page 12 ▶ Do not use worn down wheels from larger power tools. A wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst. ▶ When using dual purpose wheels always use the correct guard for the application being performed. Failure to use the correct guard may not provide the desired level of guarding, which could lead to serious injury.
  • Page 13 ▶ Dirty or dusty products that have been used frequently for work on conductive materials should be checked at regular intervals by Hilti Service. Dust (especially dust from conductive materials) or dampness adhering to the surface of the power tool may, under unfavorable conditions, lead to electric shock.
  • Page 14 Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".
  • Page 15 • For these batteries, use only Hilti chargers of the type series stated in the table at the end of these operating instructions. Items supplied Angle grinder, side handle, standard guard, front cover, clamping flange, clamping nut, pin wrench, dust filter, operating instructions.
  • Page 16 The Li-ion battery is completely discharged. Recharge the battery. If the LED again starts quick-flashing after the bat- tery has been charged, consult Hilti Service. One (1) LED quick-flashes yellow The Li-ion battery or the product in which it is in- serted is overloaded, too hot or too cold, or experi- encing some other fault.

  • Page 17: Technical Data

    Wheels Type Application Designation Material Abrasive cut-off wheel Cutting, slitting AC­D Metal Diamond cut-off wheel Cutting, slitting DC-TP, DC­D (SPX, Mineral SP, P) Abrasive grinding wheel Rough grinding AG­D, AF­D, AN­D Metal Diamond grinding wheel Rough grinding DG­CW (SPX, SP, Mineral Wire brush Wire brushes...

  • Page 18: Preparations At The Workplace

    AG 4S-22-125 Spindle length 22 mm Ambient temperature for operation −17 ℃ … 60 ℃ (1 ℉ … 140 ℉) Storage temperature −20 ℃ … 70 ℃ (−4 ℉ … 158 ℉) Battery Battery operating voltage 21.6 V Weight, battery See the end of these operating instructions Ambient temperature for operation...
  • Page 19 ▶ Prior to each use, always check the attachment point of the tool tether for possible damage. Comply with the national regulations for working at heights. As drop arrester for this product, use only a combination of the Hilti retaining strap and the Hilti tool tether #2261970.
  • Page 20 Fitting or removing the guard CAUTION Risk of injury. The accessory tool may be hot or have sharp edges. ▶ Wear protective gloves when fitting, removing or adjusting the accessory tool or other parts and when troubleshooting. ▶ Observe the instructions for fitting the applicable guard. 6.7.1 Installing standard guard The guard has coded locating lugs to ensure that only a guard suitable for use with the product can...
  • Page 21 1. Clean the clamping flange and the clamping nut. 2. Check that the O-ring is in place in the clamping flange and that it is undamaged. ▶ Replace the O-ring if it is missing or damaged. 3. Fit the clamping flange on to the spindle (keyed fit to prevent slipping and rotation). 4.

  • Page 22: Operation

    6. Then release the spindle lock button and remove the open-end wrench. 6.9.6 Fitting the wire brush 1. Fit the side handle. → page 13 2. Install the standard guard. 3. Place the wire brush in position and tighten it hand-tight. 4.

  • Page 23: Care And Maintenance

    To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with your product can be found at your Hilti Store or online at: www.hilti.group...

  • Page 24: Troubleshooting

    ▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.

  • Page 25: Manufacturer's Warranty

    Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions. Further information For more information on operation, technology, environment and recycling, follow this link: qr.hilti.com/manual/?id=2252233&id=2252235&id=2251374 This link is also to be found at the end of the documentation, in the form of a QR code.
  • Page 26 ‫י ב‬ ‫ה‬ ‫ת‬ ‫ל‬ ‫ו ס‬ ‫פ‬ ‫ל‬ ‫ך‬ ‫י ל‬ ‫ש‬ ‫ה‬ ‫ל ן‬ ‫י א‬ Hilti ‫ן‬ - ‫ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת‬ ‫ל ל‬ ‫ו ס‬ ‫ן ע‬ ‫ט‬ ‫מ‬ Hilti ‫ם י‬...
  • Page 27 ‫ו מ‬ ‫ש‬ ‫י‬ ‫נ כ‬ ‫ט‬ ‫ה‬ ‫ד‬ ‫ו ע‬ ‫י ת‬ ‫ה‬ Hilti Entwicklungsgesellschaft mbH | Zulassung Geräte | Hiltistraße 6 | 86916 Kaufering, Germany ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ם י‬ ‫י ל‬ ‫מ‬ ‫ש‬ ‫ח‬...
  • Page 28 ‫ה‬ ‫ט‬ ‫י ל‬ ‫ש‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ד ב‬ ‫א ל‬ ‫ל ו‬ ‫ל ע‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ח‬ ‫ס‬ ‫ו ת‬ ‫ך‬ ‫ת‬ ‫ע ד‬ ‫ם‬ ‫א‬ ‫ו ב‬ ‫ש‬ ‫ו‬ ‫מ י‬ ‫ש‬ ‫ה‬ ‫ך ל‬ ‫ה‬ ‫מ‬...
  • Page 29 ‫ם י‬ ‫י ת‬ ‫כ‬ ‫ת‬ ‫מ‬ ‫ם‬ ‫י צ‬ ‫פ‬ ‫ח‬ ‫ו א‬ ‫ם‬ ‫י ג‬ ‫ר ב‬ ‫, ם‬ ‫י ר‬ ‫מ‬ ‫ס‬ ‫מ‬ ‫, ת‬ ‫ו ח‬ ‫ת‬ ‫פ‬ ‫מ‬ ‫, ת‬ ‫ו ע‬ ‫ב‬ ‫ט‬ ‫מ‬ ‫מ‬...
  • Page 30 ‫ת‬ ‫ו מ‬ ‫י א‬ ‫ת‬ ‫מ‬ ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ת ו‬ ‫י ח‬ ‫נ‬ ‫ה ו‬ ‫ע‬ ‫ת‬ ‫ר‬ ‫. ה‬ ‫א‬ ‫ל ה‬ ‫ן‬ ‫כ ו‬ ‫ל ז‬ ‫ר ב‬ ‫ת‬ ‫ש‬ ‫ר ב‬ ‫מ‬ ‫, ש‬...
  • Page 31 ‫ץ‬ ‫ו צ‬ ‫י פ‬ ‫ו א‬ ‫ת‬ ‫ו ל‬ ‫מ‬ ‫ש‬ ‫ח‬ ‫ת‬ ‫ה‬ ‫ם‬ ‫ו ר‬ ‫ג ל‬ Hilti ‫ק‬ ‫ב‬ ‫ד נ‬ ‫ש‬ ‫ק‬ ‫ב‬ ‫א‬ ‫. ר י‬ ‫ד ס‬ ‫ן פ‬ ‫ו א‬ ‫ב‬ ‫ה‬...
  • Page 32 ‫ה‬ ‫ל י‬ ‫ד כ‬ B 22 ‫ם‬ ‫י מ‬ ‫ג‬ ‫ד ה‬ ‫ת‬ ‫ר‬ ‫ד ס‬ ‫מ‬ Hilti Nuron ‫ל‬ ‫ש‬ ‫ן‬ - ‫ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת ו‬ ‫ל ל‬ ‫ו ס‬ ‫ב‬ ‫ק ר‬...
  • Page 33 , ‫י‬ ‫ת י‬ ‫ו ו ז‬ ‫ת‬ ‫ז ח‬ ‫ש‬ ‫מ‬ www.hilti.group ‫: ת‬ ‫ב‬ ‫ו ת‬ ‫כ ב‬ ‫ו א‬ Hilti Store ‫- ב‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ך ל‬ ‫ש‬ ‫ר צ‬ ‫ו מ‬ ‫ה‬ ‫ר‬ ‫ו ב‬...
  • Page 34 ‫ב‬ ‫ה‬ ‫ב‬ ‫ה ל‬ ‫ה‬ ‫כ‬ ‫י ש‬ ‫מ‬ ‫מ‬ ‫ת‬ ‫י ר ו‬ ‫נ ה‬ ‫ם‬ ‫א‬ Hilti ‫ל‬ ‫ש‬ ‫ת‬ ‫ו ר‬ ‫י ש‬ ‫ל‬ ‫ם י‬ ‫ר ק‬ ‫, י ד‬ ‫מ‬ ‫ם‬ ‫י מ‬ ‫ח‬...
  • Page 35 ‫ש‬ ‫ו‬ ‫מ י‬ ‫ש‬ ‫ב‬ ‫ש‬ ‫ד‬ ‫ו י‬ ‫צ ל‬ ‫ם‬ ‫י ק‬ ‫ס‬ ‫י ד‬ ‫ה‬ ‫ת‬ ‫מ‬ ‫א‬ ‫ת‬ ‫ה‬ DC-TP DG-CW AG­D AP-D AC­D ‫ד ו‬ ‫י צ‬ ‫ט‬ ‫י ר‬ ‫פ‬ DC-D AF­D DD-M14 AN­D ✓...
  • Page 36 EN 60745 ‫י פ‬ ‫ל‬ ‫ש‬ ‫ע‬ ‫ר‬ ‫י‬ ‫כ ר‬ ‫ע‬ ‫ן‬ ‫י ב‬ ‫ה‬ ‫א ו‬ ‫ו ש‬ ‫ה‬ ‫ך‬ ‫ר ו‬ ‫צ ל‬ ‫ם‬ ‫ה‬ ‫ב‬ ‫ש‬ ‫מ‬ ‫ת‬ ‫ש‬ ‫ה ל‬ ‫ן ת‬ ‫י נ ו‬ ‫, י‬...
  • Page 37 ‫י ל‬ ‫נ ו‬ ‫י צ‬ ‫פ ו‬ ) ‫א‬ Hilti ‫ל‬ ‫ש‬ ‫ה‬ ‫ח‬ ‫ט‬ ‫ב‬ ‫א‬ ‫ת‬ ‫ע‬ ‫ו צ‬ ‫ר‬ ‫ת‬ ‫נ ק‬ ‫ת‬ ‫ה‬ ‫ם י‬ ‫ה ו‬ ‫ב ג‬ ‫ת‬ ‫ו מ‬ ‫ו ק‬ ‫מ‬...
  • Page 38 ‫י מ‬ ‫ד‬ ‫ק‬ ‫ה‬ ‫י‬ ‫ו ס‬ ‫י כ‬ ‫ה‬ ‫ל‬ ‫ש‬ ‫ה‬ ‫ר‬ ‫ס‬ ‫ה‬ ‫ו א‬ ‫ה‬ ‫נ ק‬ ‫ת‬ ‫ה‬ ‫י ט‬ ‫ר ד‬ ‫נ ט‬ ‫ס‬ ‫ה‬ ‫ק‬ ‫ס י‬ ‫ד ה‬ ‫ן ג‬ ‫מ‬ ‫ל...
  • Page 39 ‫. ק‬ ‫ו ד‬ ‫י ה‬ ‫ה‬ ‫ם‬ ‫ו א‬ ‫ת‬ ‫א‬ ‫ו י‬ ‫ד ג‬ ‫נ ה‬ ‫ן ג‬ ‫ו א‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ה‬ ‫ק נ‬ ‫. י ר‬ ‫מ‬ ‫ג ל‬ ‫ה נ‬ ‫י ק‬ ‫ת‬ ‫א‬ ‫י...
  • Page 40 ‫( ם‬ ‫ש‬ ‫ג ב‬ ‫ה‬ ‫ת‬ ‫ו א‬ ‫ח‬ ‫י נ‬ ‫ה ל‬ ‫ו א‬ ‫ם‬ ‫י מ‬ ‫ב‬ Hilti ‫ל‬ ‫ש‬ ‫ת‬ ‫ו ר‬ ‫י ש‬ ‫ל‬ ‫ה נ‬ ‫פ ו‬ ‫ק י‬ ‫ל ד‬ ‫א ל‬ ‫ל כ‬...
  • Page 41 ‫ל‬ ‫ש‬ ‫ה‬ ‫ח‬ ‫ו ט‬ ‫ב‬ ‫ה‬ ‫ל ע‬ ‫פ‬ ‫ה‬ ‫ך‬ ‫ר ו‬ ‫צ ל‬ www.hilti.group Hilti Store Hilti ‫: ת‬ ‫ב‬ ‫ו ת‬ ‫כ ב‬ ‫ו א‬ ‫ך ל‬ ‫ש‬ ‫- ב‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ך ל‬...
  • Page 42 ‫ו ח‬ ‫מ‬ ‫ל‬ ‫ו ד‬ ‫ג ה‬ ‫ם‬ ‫ק ל‬ ‫ח‬ ‫ב‬ ‫ם‬ ‫י ר‬ ‫צ ו‬ ‫י מ‬ Hilti ‫ל‬ ‫ש‬ ‫ם י‬ ‫ר צ‬ ‫ו מ‬ ‫ה‬ ‫ק ו‬ ‫ו ש‬ ‫מ‬ ‫ל‬ ‫ו א‬ Hilti ‫ל‬...
  • Page 48 *2252233* 2252233 Hilti = registered trademark of Hilti Corp., Schaan Pos. 1 | 20221017...
