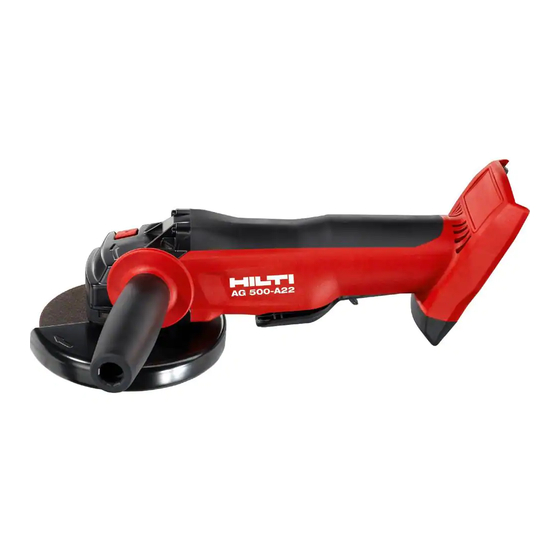

- Page 1 AG 500-A22 English Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 01...
- Page 2 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 01...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
- Page 4 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.
- Page 5 ▶ Remove the battery from the power tool before making any adjustments, changing accessories or storing the tool. This precaution reduces the risk of the power tool starting accidentally. ▶ Store power tools out of reach of children when not in use. Do not allow persons who are not familiar with the tool or these instructions to operate it.
- Page 6 with a live wire, metal parts of the power tool can also become live, causing the operator to receive an electric shock. ▶ Never lay the power tool down before the accessory tool has come to a complete stop. If the rotating accessory tool were allowed to touch the surface on which you are going to place the power tool, you could lose control of the power tool.
- Page 7 ▶ If the battery is too hot to touch, it may be defective. In this case, place the power tool in a non-flammable location, well away from flammable materials, where it can be kept under observation and left to cool down. Contact Hilti Service after the battery has cooled down. Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00...
- Page 8 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 01...
- Page 9 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 01...
- Page 10 3 Description 3.1 Overview of the product Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 01...
- Page 11 (optional accessory). • A dust removal hood together with a suitable Hilti vacuum cleaner must be used for working on mineral materials such as concrete or stone. ▶ Use only Hilti Liion batteries of the B 22 series with this product.
- Page 12 3.6 DC-EX 125/5"C compact dust hood for cutting (accessory) When cutting mineral materials with diamond cutting discs, use the DC-EX 125/5" C compact hood. CAUTION Use of this hood for working on metal is prohibited. 3.7 DG-EX 125/5" dust hood for grinding (accessory) The grinding system is suitable only for occasional use with diamond cup wheels for grinding mineral materials.
- Page 13 4 Consumables Only synthetic resin-bonded, fiber-reinforced discs with a maximum Ø of 5" which are approved for use at a rotational speed of at least 11000/min and a peripheral speed of 80 m/s may be used. The maximum grinding disc thickness is 1/4" and the maximum cutting disc thickness is 1/8". WARNING! When cutting or slitting with abrasive cutting discs always use the standard guard with the additional front cover, or a fully enclosing dust hood.
- Page 14 AG 500A22 Maximum disc diameter 5 in Maximum disc diameter 125 mm Weight 6.0 lb (2.7 kg) Thread diameter 5/8"-11 6 Before use 6.1 Inserting the battery CAUTION Risk of injury. Due to the angle grinder starting unintentionally. ▶ Before fitting the battery, check that the angle grinder is switched off and that the safety lock is activated.
- Page 15 6.2 Removing the battery ▶ Remove the battery. 6.3 Fitting the side handle ▶ Screw the side handle into one of the threaded bushings provided. 6.4 Fitting or removing the guard CAUTION Risk of injury. The accessory tool may be hot or have sharp edges. ▶...
- Page 16 6.4.2 Adjusting the guard ▶ Press the guard release button and then rotate the guard until it engages in the desired position. 6.4.3 Removing the hood 1. Press the guard release button and then rotate the guard until the triangular marks on the guard and the power tool are in alignment.
- Page 17 6.7 Fitting and removing accessory tools WARNING Risk of injury. The accessory tool may work loose due to the braking effect of the motor. ▶ Wait until the accessory tool has come to a standstill before touching or gripping the accessory tool or the clamping nut.
- Page 18 CAUTION Risk of breakage and irreparable damage. If the spindle lockbutton is pressed while the spindle is rotating, this may cause the accessory tool to work loose or detach from the power tool. ▶ Press the spindle lockbutton only when the spindle has stopped rotating. 2.
-
Page 19: Operation
4. If the Kwik lock nut cannot be released by turning it by hand, use a pin wrench to turn the nut in a counterclockwise direction. Note Never use a pipe wrench! A pipe wrench could damage the Kwik lock nut. 5. - Page 20 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00...
-
Page 21: Troubleshooting
▶ Switch the power tool off im- gets very hot. mediately, remove the battery, keep it under observation, allow it to cool down and contact Hilti Service. The tool does not achieve full A battery with inadequate capacity ▶ Use a battery with adequate power. - Page 22 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 23 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 01...
- Page 24 Hilti = registered trademark of Hilti Corp., Schaan 20160609 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 00 Printed: 26.01.2017 | Doc-Nr: PUB / 5292879 / 000 / 01...
