Savant Smart Series Quick Reference Manual

Savant® Smart Series WiSA Soundbar [HST-STUDIO55WS-SUR-xx]
Quick Reference Guide
Box Contents
(1) Smart Series WiSA Soundbar (HST-STUDIO55WS-SUR)
(1) Soundbar (093-3183-xx)
(1) Standard Grille (093-3181-xx)
(1) Power Cord (064-0480-xx)
(2) 6-Pin Control Connector (028-9352-xx)
(1) Install Kit (075-0241-xx)
(2) Wall Mounting Bracket (071-1130-xx)
(1) 3mm Allen Wrench (015-0222-xx)
(4) M5x10mm hex screw (039-0440-xx)
(4) 25mm Washer 10mm ID (039-0438-xx)
(2) Rubber Feet (073-0007-xx)
(1) IR Learner (064-0511-xx)
(1) Product Regulatory Insert (009-1873-xx)
(1) Quick Reference Guide (this document)
Optional Accessories (sold separately)
–
Smart Audio Soundbar TV Mount Hardware
(MNT-STUDIO55WS-TV-xx)
– Custom Grilles matched to Flat Panel TV's
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weights
4.17 in (10.59 cm)
Height
4.61 in (11.71 cm) with included Grille
Width 53.41 in (135.65 cm)
2.25 in (5.71 cm)
Depth
2.40 in (5.93 cm) with included Grille
Net: 21.7 lbs (9.9 kg) with included Grille
Weight
Shipping:
Power
Input 120/240V AC (50/60 Hz) 3.6A
Maximum 250W
Operating Parameters
Frequency
80 Hz - 40 kHz +/- 3 dB
Response
Sensitivity 89 dB @ 2.83V/1 meter
Networking
Supported
IEEE 802.1 AVB/TSN
Standards
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
da Vinci 9.2
Savant Software
Studio 3.1
HST-STUDIO55WS-SUR | 009-1878-00 | 191108
Copyright © 2019 Savant Systems, LLC
27.9 lb (12.7 kg)
WiSA
CE C-Tick

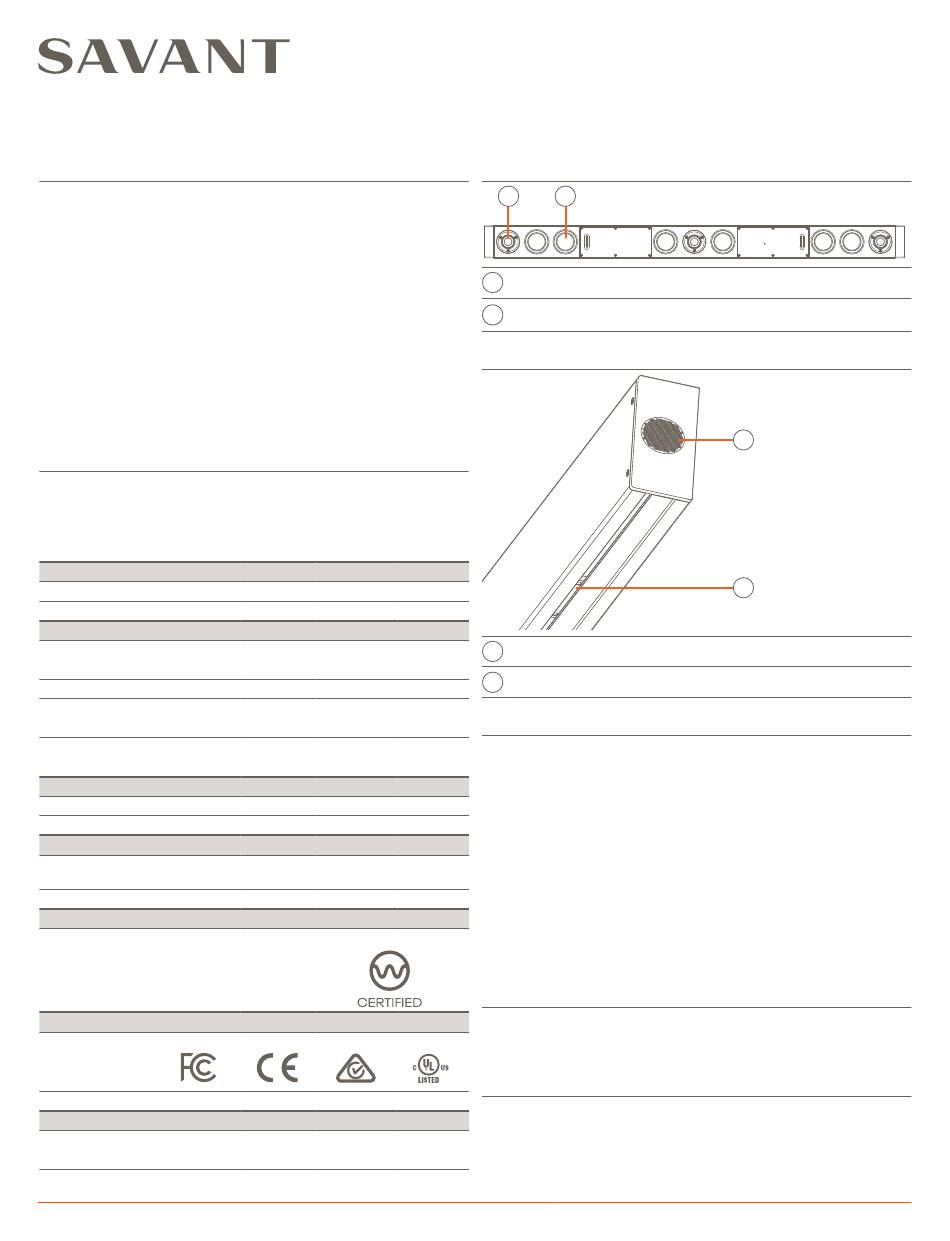

Front Panel
A B
A
Front Tweeters
Midrange/
B
Woofers
Side and Bottom Panel
A
Stage Tweeters
B
Mounting Slide
Installation
Wall Mount
1. Attach the Wall Mounting Brackets to the wall using the appropriate
fasteners to account for the weight of the soundbar.
NOTE: The two wall brackets must be far enough apart so the
soundbar does not wobble on the wall.
2. Make the power and control connections before the soundbar is
attached to the brackets.
3. Attach the Soundbar
Rubber Feet
The included rubber feet must be used with the included grille.
1. Align the foot with the mounting slide.
2. Remove the waxed paper from the adhesive
3. Use one of the included hex screws to attach the foot to the
mounting slide.
4. Repeat for the second rubber foot.
Host Mode
Host mode can be disabled/enabled from the device's Web UI. For
more information see the IP Audio Products with Integrated Host
UL
Deployment Guide (009-1839-xx)
Further Product Information
To view available documentation, detailed product specs, and more:
– Visit the Savant Knowledge tab via the
Community to search all Savant documentation.
1 of 2
(3) 25 mm Vifa XT Super Audio Tweeters
(6) 89 mm Long Throw Carbon Fiber
Midrange/Woofers
A
B
(2) 19mm Silk Tweeters
(2) Captive M5 threaded bracket
Savant Customer
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
