Savant® Smart Series WiSA Soundbar [HST-STUDIO55WS-SUR-xx]
Quick Reference Guide

Box Contents

(1)
Smart Series WiSA Soundbar (HST-STUDIO55WS-SUR)
(1)
Soundbar (093-3183-xx)
(1)
Standard Grille (093-3181-xx)
(1)
Power Cord (064-0480-xx)
(2) 6-Pin Control Connector (028-9352-xx)
(1)
Install Kit (075-0241-xx)
(2) Wall Mounting Bracket (071-1130-xx)
(1)
3mm Allen Wrench (015-0222-xx)
(8) M5x10mm hex screw (039-0440-xx)
(4) 25mm Washer 5mm ID (039-0437-xx)
(2) Bracket Extension 50x90 (071-1112-xx)
(2) Bracket Extension 70x90 (071-1113-xx)
(2) Rubber Feet (073-0007-xx)
(3) IR Emitter (064-0020-xx)
(1)
IR Learner (064-0511-xx)
(1)
Quick Reference Guide (this document)
Optional Accessories (sold separately)
Smart Audio Soundbar TV Mount Hardware
(MNT-STUDIO55WS-TV-xx)
Custom Grilles matched to Flat Panel TV's

Specifications

Environmental
Temperature
32° to 104° F (0° to 40°C)
Humidity
10% to 90% (non-condensing)
Dimensions and Weights
4.17 in (10.59 cm)
Height
4.61 in (11.71 cm) with included Grille
Width
53.41 in (135.65 cm)
2.25 in (5.71 cm)
Depth
2.40 in (5.93 cm) with included Grille
Net: 21.7 lbs (9.9 kg) with included Grille
Weight
Shipping:
Power
Input
120/240V AC (50/60 Hz)
Maximum
250W
Operating Parameters
Frequency
80 Hz - 40 kHz +/- 3 dB
Response
Sensitivity
89 dB @ 2.83V/1 meter
Networking
Supported
IEEE 802.1 AVB/TSN
Standards
Regulatory
FCC Part 15
Safety and
Emissions
Contains FCC ID
Z64-WL18DBMOD
Contains IC
451I-WL18DBMOD
RoHS
Compliant
Minimum Supported Release
da Vinci 9.2
Savant Software
Studio 3.1
HST-STUDIO55WS-SUR | 009-1878-02
Copyright © 2020 Savant Systems, LLC | 200325
27.9 lb (12.7 kg)
CE
C-Tick

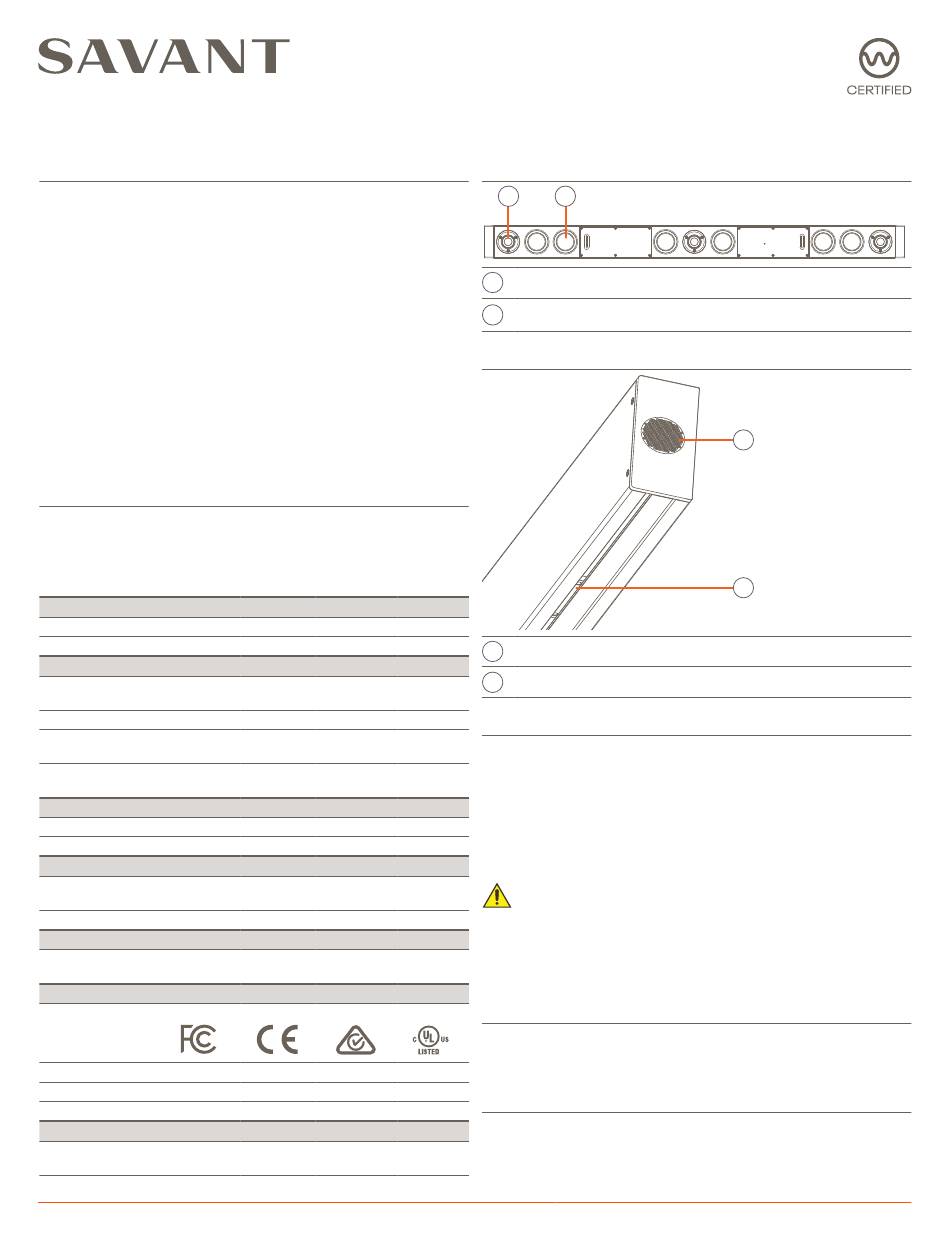

Front Panel

A
B
A
Front Tweeters
Midrange/
B
Woofers

Side and Bottom Panel

A
Stage Tweeters
B
Mounting Slide

Installation

Wall Mount

1. Attach the Wall Mounting Brackets to the wall using the appropriate
fasteners to account for the weight of the soundbar.
NOTE: The two wall brackets must be far enough apart so the
soundbar does not wobble on the wall.
2. Make the power and control connections before the soundbar is
attached to the brackets.
3. Attach the Soundbar.

Rubber Feet

IMPORTANT! The rubber feet must be used with the included
grille.
1. Align the foot under the center speaker of the Right/Left Channel.
2. Remove the waxed paper from the adhesive.
3. Attach the foot to the soundbar.
4. Repeat for the second rubber foot.

Host Mode

UL
Host mode can be disabled/enabled from the device's Web UI. For
more information see the IP Audio Products with Integrated Host
Deployment Guide (009-1839-xx).w

Further Product Information

To view available documentation, detailed product specs, and more:
Visit the Savant Knowledge tab via the
Community
to search all Savant documentation.
1
of
4
(3) 25 mm Vifa XT Super Audio Tweeters
(6) 89 mm Long Throw Carbon Fiber
Midrange/Woofers
A
B
(2) 19mm Silk Tweeters
(2) Captive M5 threaded bracket
Savant Customer
45 Perseverance Way, Hyannis, MA 02601
Savant.com
WiSA
| 508.683.2500
