Savant IP-STUDIO46-2CH Series Quick Reference Manual

Savant® IP Audio Soundbars
Quick Reference Guide
Products
IP-STUDIO46-2CH-xx
IP-STUDIO55-2CH-xx
Box Contents
(1) IP Audio Soundbar
(1) Power Cord
(2) 6-Pin Control Connector (028-9352-xx)
(1) Install Kit (075-0214-xx)
(2) C-Shape Bracket (093-3114-xx)
(2) L-Shape Bracket (093-3115-xx)
(2) Wall Mounting Bracket (071-1130-xx)
(2) Bracket Extension 50x90 (071-1112-xx)
(2) Bracket Extension 70x90 (071-1113-xx)
(2) UMB Stabilizer (015-0223-xx)
(1) 3mm Allen Wrench (015-0222-xx)
(8) M5x10mm hex screw (039-0440-xx)
(4) M4x11.5mm hex screw (039-0441-xx)
(4) M5x11.5mm hex screw (039-0442-xx)
(4) M6x11.5mm hex screw (039-0443-xx)
(4) M8x11.5mm hex screw (039-0444-xx)
(4) M10x11.5mm hex screw (039-0445-xx)
(4) 25mm Washer 5mm ID (039-0437-xx)
(4) 25mm Washer 10mm ID (039-0438-xx)
(1) Product Regulatory Insert (009-1732-xx)
Optional Accessories
– Custom Grilles matched to Flat Panel TV's (sold separately)

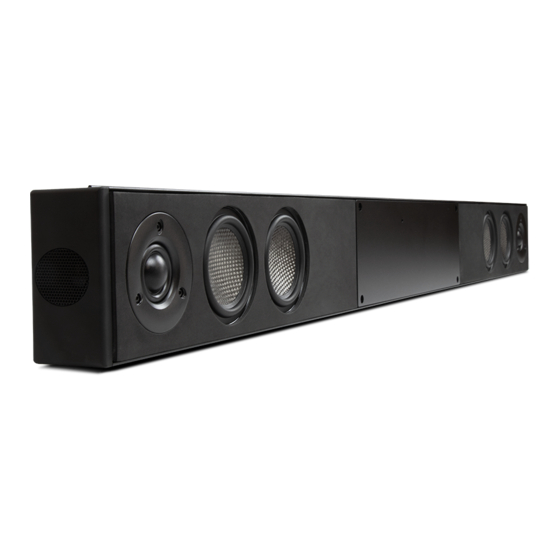

Front Panel
A
B
IP-STUDIO55-2CH-xx
IP-STUDIO46-2CH-xx
(2) 25 mm Vifa XT Super Audio Tweeters
- IP-STUDIO55-2CH-xx
A
Front Tweeters
(2) 25 mm Vifa DX Super Audio Tweeters
- IP-STUDIO46-2CH-xx
Midrange/ (4 or 6) 89 mm Long Throw Carbon Fiber
B
Woofers Midrange/Woofers
Bracket Selection
TV Thickness Bracket
0.9 - 1.2 in C-Shape
1.9 - 2.8 in C-Shape
2.7 - 3.6 in C-Shape
2.1 - 2.5 in L-Shape
3.0 - 4.0 in L-Shape
3.8 - 4.7 in L-Shape
IP Audio Soundbars | 009-1792-01 | 190618
Copyright 2019 Savant Systems, LLC
Extension Minimum wall
mount depth
None 1.1 in
50 mm 1.1 in
70 mm 1.1 in
None None
50 mm None
70 mm None
Specifications
Environmental
Temperature
Humidity
Dimensions and Weight without Grille
Height
Width
Depth
Weight
Power
Input Power
Maximum Power
Draw
Networking
Supported
Standard
Operating Parameters
Frequency
Response
Sensitivity
Regulatory
Safety and
Emissions
RoHS
Minimum Support Requirements
Software
Release
Side and Bottom Panel
A
Stage Tweeters
B
Mounting Slide
1 of 2
32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity (non-condensing)
4.17 in (10.59 cm)
44.76 in (113.70 cm) - IP-STUDIO46-2CH-xx
53.41 in (135.65 cm) - IP-STUDIO55-2CH-xx
2.25 in (5.71 cm)
Shipping:
22.6 lb (10.3 kg) - IP-STUDIO46-2CH-xx
29.3 lb (13.3 kg) - IP-STUDIO55-2CH-xx
100/240V AC (50/60 Hz)
250W
IEEE 802.1 AVB/TSN switches
80 Hz - 40 kHz +/- 3 dB
89 dB @ 2.83V/1 meter
FCC Part 15B CE Mark
Compliant
da Vinci 8.10
A
B
(2) 19mm Silk Tweeters
(2) Captive M5 threaded bracket
45 Perseverance Way, Hyannis, MA 02601
Savant.com
C-Tick UL
| 508.683.2500
