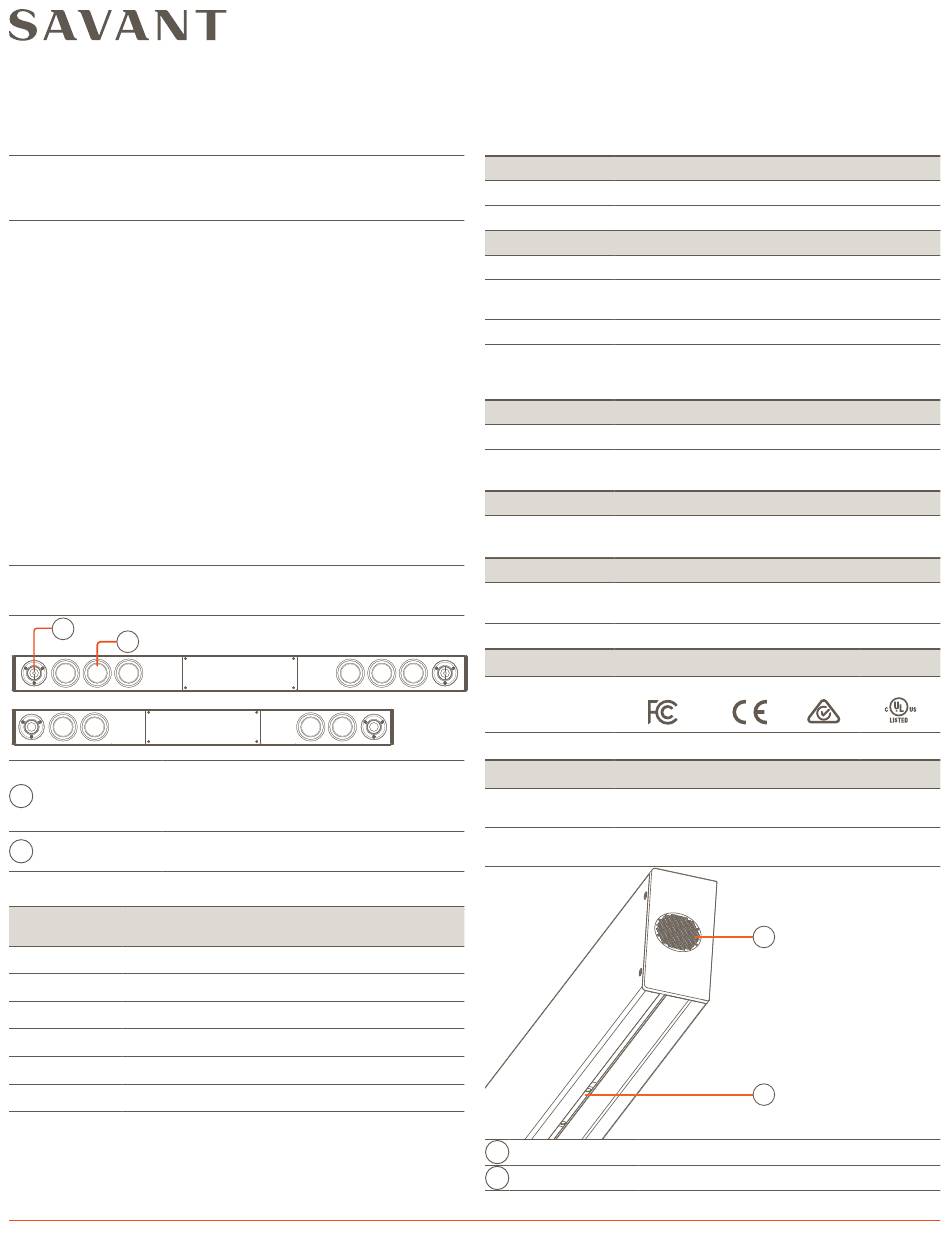

Savant® IP Audio Studio with Integrated Host
Quick Reference Guide

Products

HST-STUDIO46-2CH-00
HST-STUDIO55-2CH-00

Box Contents

(1)
IP Audio Studio SoundBar
(1)
Power Cord
(2) 6-Pin Control Connector (028-9352-00)
(1)
Install Kit (075-0214-00)
(2) C-Shape Bracket (093-3114-00)
(2) L-Shape Bracket (093-3115-00)
(2) Wall Mounting Bracket (071-1130-00
(2) Bracket Extension 50x90 (071-1112-00)
(2) Bracket Extension 70x90 (071-1113-00)
(2) UMB Stabilizer (015-0223-00)
(1)
3mm Allen Wrench (015-0222-00)
(8) M5x10mm hex screw (039-0440-00)
(4) M4x11.5mm hex screw (039-0441-00)
(4) M5x11.5mm hex screw (039-0442-00)
(4) M6x11.5mm hex screw (039-0443-00)
(4) M8x11.5mm hex screw (039-0444-00)
(4) M10x11.5mm hex screw (039-0445-00)
(4) 25mm Washer 5mm ID (039-0437-00)
(4) 25mm Washer 10mm ID (039-0438-00)
(1)
Product Regulatory Insert (009-1732-00)

Optional Accessories

Custom Grilles matched to Flat Panel TV's (sold separately)

Front Panel

A
B
IP-STUDIO55-2CH-00
IP-STUDIO46-2CH-00
(2) 25 mm Vifa XT Super Audio Tweeters
- IP-STUDIO55-2CH-00
A
Front Tweeters
(2) 25 mm Vifa DX Super Audio Tweeters
- IP-STUDIO46-2CH-00
Midrange/
(4 or 6) 89 mm Long Throw Carbon Fiber
B
Woofers
Midrange/Woofers

Bracket Selection

TV Thickness
Bracket
0.9 - 1.2 in
C-Shape
1.9 - 2.8 in
C-Shape
2.7 - 3.6 in
C-Shape
2.1 - 2.5 in
L-Shape
3.0 - 4.0 in
L-Shape
3.8 - 4.7 in
L-Shape
IP Audio Studio with Integrated Host | 009-1835-00 | 190424
Copyright 2019 Savant Systems, LLC
Extension
Minimum wall
mount depth
None
1.1 in
50 mm
1.1 in
70 mm
1.1 in
None
None
50 mm
None
70 mm
None

Specifications

Environmental

Temperature
Humidity
Dimensions and Weight without Grille
Height
Width
Depth
Weight

Power

Input Power
Maximum Power
Draw

Networking

Supported
Standard

Operating Parameters

Frequency
Response
Sensitivity

Regulatory

Safety and
Emissions
RoHS

Minimum Support Requirements

Software
Release
Side and Bottom Panel
A
Stage Tweeters
B
Mounting Slide
1
of
2
32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity (non-condensing)
4.17 in (10.59 cm)
44.76 in (113.70 cm) - IP-STUDIO46-2CH-00
53.41 in (135.65 cm) - IP-STUDIO55-2CH-00
2.25 in (5.71 cm)
Shipping:
22.6 lb (10.3 kg) - IP-STUDIO46-2CH-00
29.3 lb (13.3 kg) - IP-STUDIO55-2CH-00
100/240V AC (50/60 Hz)
250W
IEEE 802.1 AVB/TSN switches
80 Hz - 40 kHz +/- 3 dB
89 dB @ 2.83V/1 meter
FCC Part 15B
CE Mark
Compliant
da Vinci 9.1
A
B
(2) 19mm Silk Tweeters
(2) Captive M5 threaded bracket
45 Perseverance Way, Hyannis, MA 02601
Savant.com
C-Tick
UL
| 508.683.2500
