D G F r
6000-3560-0000-1XX 35600-2021 V103 03 ⁄ 2021
211x
®
PREMASGARD
212x ⁄ 212x - SD
®
PREMASGARD
D

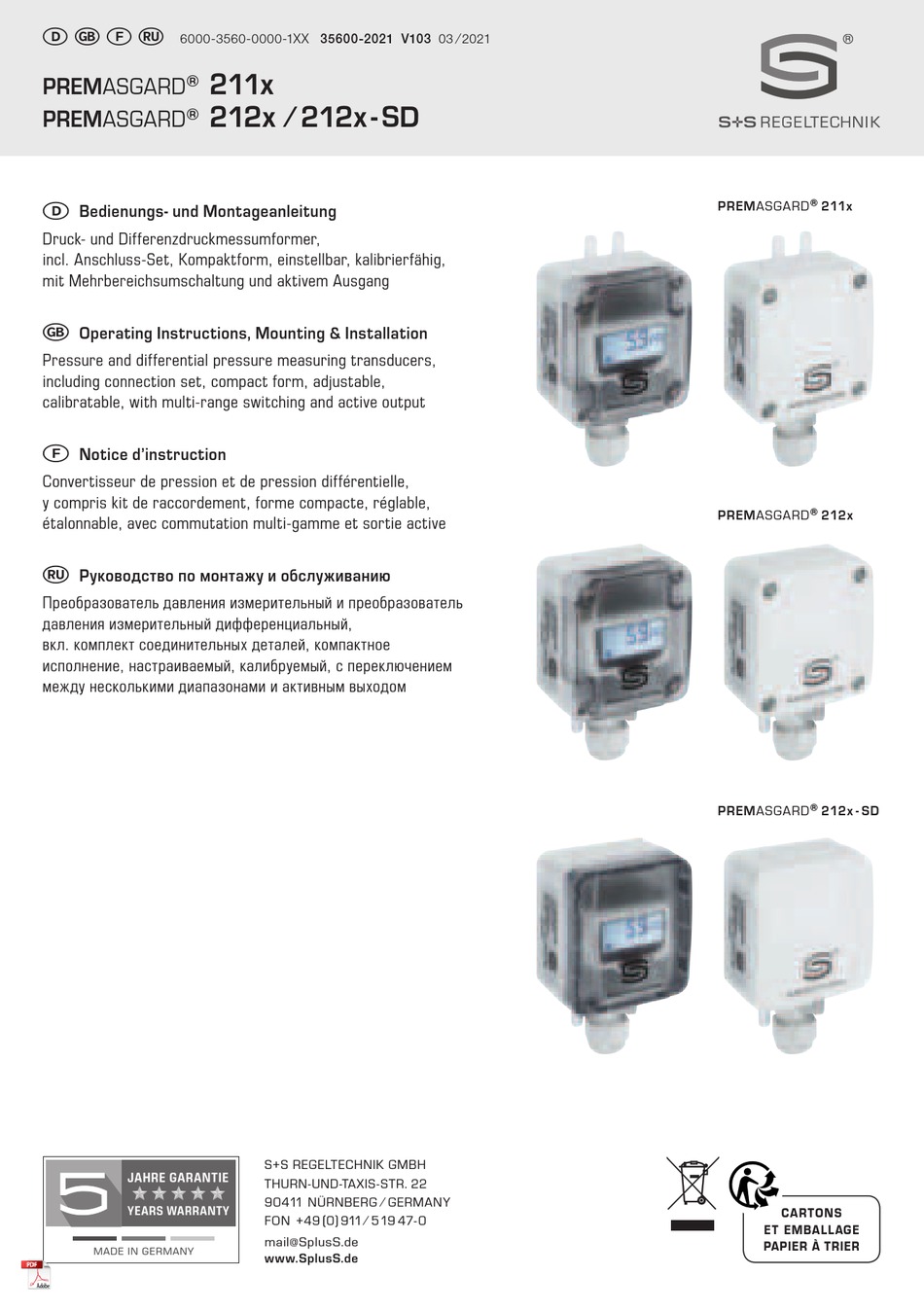

Bedienungs- und Montageanleitung
Druck- und Differenzdruckmessumformer,
incl. Anschluss-Set, Kompaktform, einstellbar, kalibrierfähig,
mit Mehrbereichsumschaltung und aktivem Ausgang
G
Operating Instructions, Mounting & Installation
Pressure and differential pressure measuring transducers,
including connection set, compact form, adjustable,
calibratable, with multi-range switching and active output
F
Notice d'instruction
Convertisseur de pression et de pression différentielle,
y compris kit de raccordement, forme compacte, réglable,
étalonnable, avec commutation multi-gamme et sortie active
r
Руководство по монтажу и обслуживанию
Преобразователь давления измерительный и преобразователь
давления измерительный дифференциальный,
вкл. комплект соединительных деталей, компактное
исполнение, настраиваемый, калибруемый, с переключением
между несколькими диапазонами и активным выходом
S+S REGELTECHNIK GMBH
THURN-UND-TAXIS - STR. 22
90411 NÜRNBERG ⁄ GERMANY
FON +49 ( 0 ) 911 ⁄ 5 19 47- 0
mail@SplusS.de
www.SplusS.de
®
PREMASGARD
211x
®
PREMASGARD
212x
®
PREMASGARD
212x - SD
CARTONS
ET EMBALLAGE
PAPIER À TRIER
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for S+S Regeltechnik PREMASGARD 211 Series
Summary of Contents for S+S Regeltechnik PREMASGARD 211 Series
- Page 1 исполнение, настраиваемый, калибруемый, с переключением между несколькими диапазонами и активным выходом ® PREMASGARD 212x - SD S+S REGELTECHNIK GMBH THURN-UND-TAXIS - STR. 22 90411 NÜRNBERG ⁄ GERMANY CARTONS FON +49 ( 0 ) 911 ⁄ 5 19 47- 0 ET EMBALLAGE mail@SplusS.de...
- Page 2 D G F r 211x ® PREMASGARD 212x ⁄ 212x - SD ® PREMASGARD Maßzeichnung ® PREMASGARD 211x Dimensional drawing Plan coté Габаритный чертеж ø6 ohne Display M16x1.5 without display sin écran без дисплея mit Display M16x1.5 with display avec écran с...
-
Page 3: Technical Data

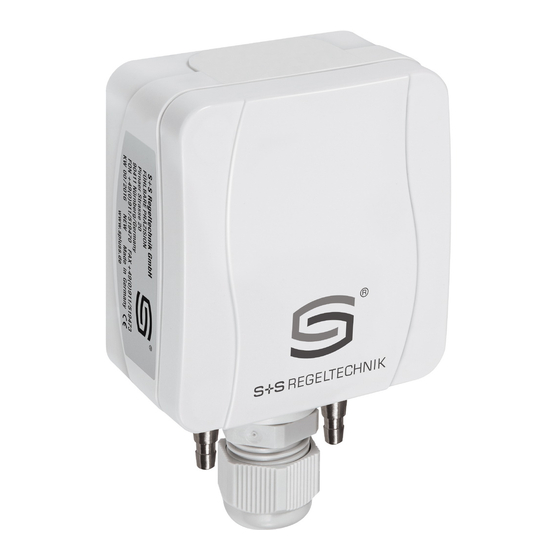

® 211x ⁄ 212x ⁄ 212x - SD PREMASGARD Rev. 2021 - V21 ® The calibrateable compact pressure sensors of the PREMASGARD 211x ⁄ 212x ⁄ 212x - SD series are equipped with 8 switchable measuring ranges, 2 switchable output signals (16 devices in one) and with or without optional display and are used for measuring above-atmospheric, below- atmospheric, or differential pressures and Volume flow in air. - Page 4 ® 211x ⁄ 212x ⁄ 212x - SD PREMASGARD Rev. 2021 - V21 ® Pressure, differential pressure and volume flow measuring transducers, Standard PREMASGARD 212x - SD (Pressure connectors on the bottom side) Pressure range Type ⁄ WG01B Output Display Item No.
- Page 5 ® 211x ⁄ 212x ⁄ 212x - SD PREMASGARD Rev. 2021 - V21 Mounting diagram ® PREMASGARD 211x 110 Pa 110 Pa 110 Pa 110 Pa Mounting diagram ® PREMASGARD 212x ® PREMASGARD 212x - SD 110 Pa 110 Pa 110 Pa 110 Pa TYPES OF MONITORING:...
- Page 6 ® 211x ⁄ 212x ⁄ 212x - SD PREMASGARD Rev. 2021 - V21 Schematic diagram ® Connecting diagram ® PREMASGARD 211x PREMASGARD 211x ® ® PREMASGARD 212x PREMASGARD 212x ® ® PREMASGARD 212x - SD PREMASGARD 212x - SD min. max. Status LED (DIP 6) I Output (ON) = orange U Output (OFF) = green...
- Page 7 ® 211x ⁄ 212x ⁄ 212x - SD | Configuration and zero point calibration PREMASGARD The following configurations can be preset via Offset adjustment is done at a potentiometer on the circuit board within an adjustment range of ± 10 % of the device’s pressure range. DIP switches.
- Page 8 ® 211x ⁄ 212x ⁄ 212x - SD | Configuration and zero point calibration PREMASGARD U - variant I - variant (Range: 0...+ xx Pa) (Range: 0...+ xx Pa) After successful zero point calibration, the output voltage After successful zero point calibration, the output current is 0 V at 0 Pa pressure difference (with the offset knob is 4 mA at 0 Pa pressure difference (with the offset knob in central position)!
-
Page 9: General Notes
General notes This device can be mounted in any position. The voltage output is short-circuit proof. Applying overvoltage at the voltage output will destroy this device. Pressure ranges are indicated on the device label. Applying measuring pressures beyond that range will cause mismeasurements and increased deviations or may destroy the device. - Page 10 Reprint in full or in parts requires permission from S+S Regeltechnik GmbH. La reproduction des textes même partielle est uniquement autorisée après accord de la société S+S Regeltechnik GmbH. Перепечатка, в том числе в сокращенном виде, разрешается лишь с согласия S+S Regeltechnik GmbH.
- Page 11 D G F r Zubehör Accessories Accessoires Принадлежности Maßzeichnung Maßzeichnung Maßzeichnung ASD - 06 ASD - 07 DAL - 01 Dimensional drawing Dimensional drawing Dimensional drawing Plan coté Plan coté Plan coté Габаритный чертеж Габаритный чертеж Габаритный чертеж ø16 ø25 ø6 ø6.0 Federn...
