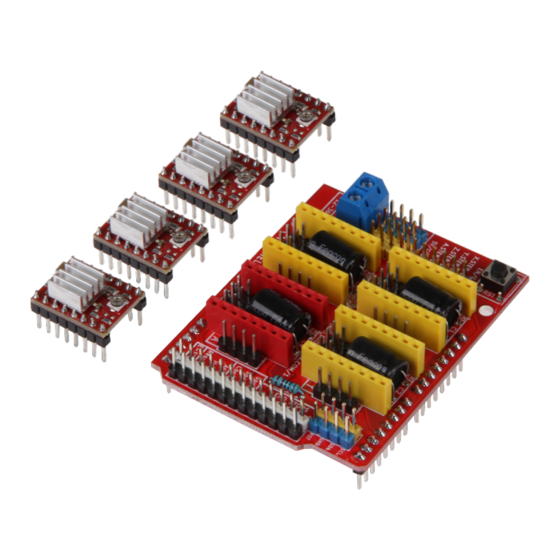

- Page 1 CONTROLLER BOARD CNC 4x A4988 motor driver for Arduino Uno Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net...
- Page 2 Never leave the machine running unatten- ded! Always keep a sufficient safety distance to the running machine. Use the ARD-CNC-Kit1 only in dry environments. When using components of other manufacturers, please inform yourself about their safety regulations and observe them.
- Page 3 3. PIN ASSIGNMENT Anschluss Motortreiber Anschluss UART Motor Reset Taste Enable Endpositionsschalter Motor- steuerung Spindel aktivieren Achse Spindel steuern klonen Kühlung aktivieren Abbrechen Halten Stromver- sorgung Fortsetzen Not-Aus Jumper für Mikroschritte 4. MICROSTEPS To determine the step size for the motors, you can make a setting via jum- pers on the main board.
- Page 4 5. ADJUSTING THE MOTOR DRIVER 5.1 Different resistors Please note that the motor drivers of the CNC kit must first be adapted to the motors to be operated before they can be used. The adaptation must be carried out in order not to cause any damage to the motors or the motor drivers themselves in the long run.
- Page 5 To increase the voltage you must turn the screwdriver clockwise and to decrease the voltage turn it counterclockwise. 6. CONNECTING THE EXPANSION BOARD The ARD-CNC-Kit1 supports the Arduino Uno and Arduino Uno compatible boards. The CNC expansion board is simply plugged onto your Arduino Uno. It needs an additional power supply between 12 V and 36 V.
- Page 6 #define EN 8 /* Enable pin for all stepper outputs */ #define X_DIR 5 /* Direction pin for X-axis */ #define X_STEP 2 /* Step pin for X-axis */ #define Y_DIR 6 /* Direction pin for Y-axis */ #define Y_STEP 3 /* Step pin for Y-axis */ #define Z_DIR 7 /* Direction pin for Z-axis */...
- Page 7 Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. To do so, please contact us by e-mail at Service@joy-it.net or by phone. Packaging information:...
