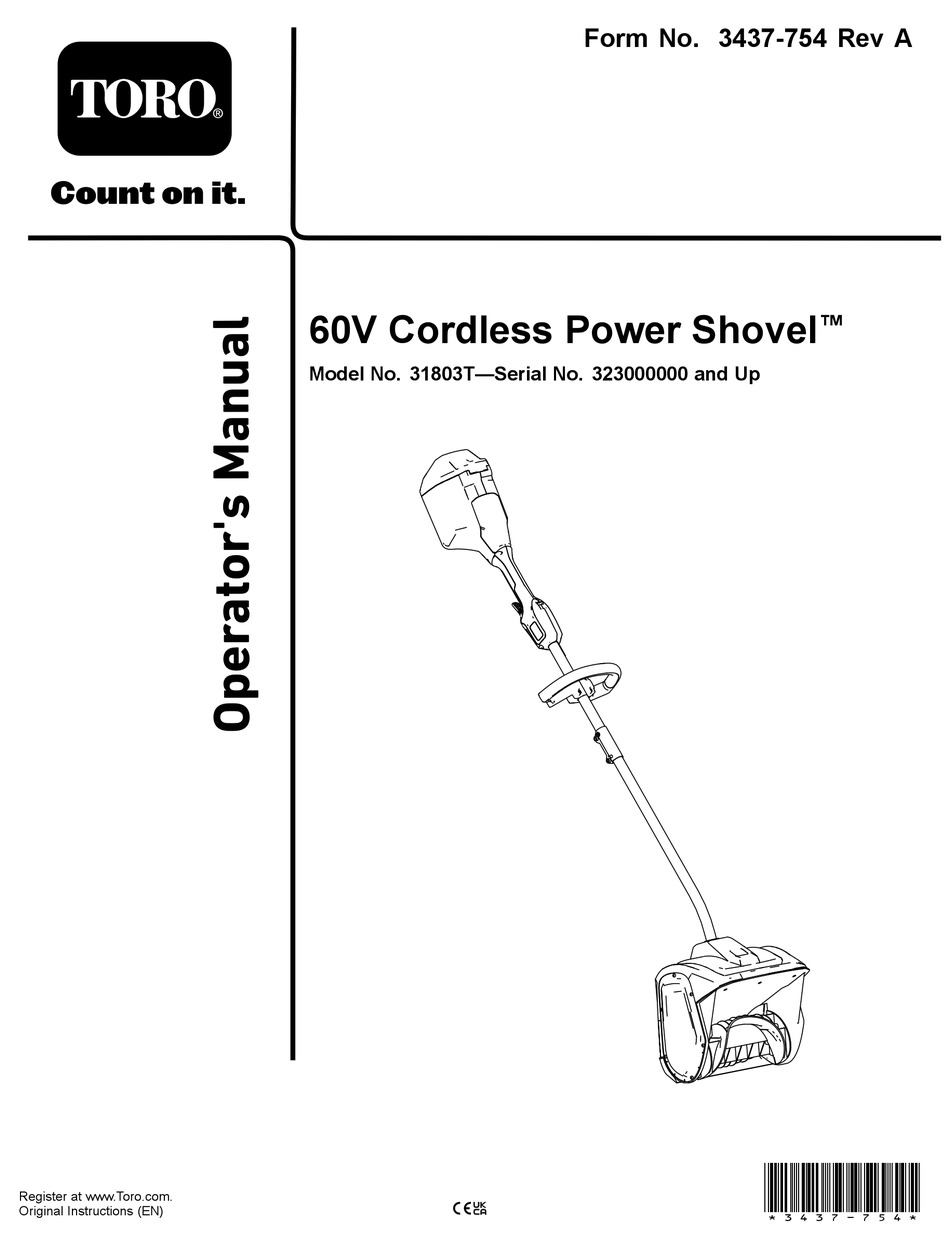

- Page 1 Form No. 3437-754 Rev A 60V Cordless Power Shovel ™ Model No. 31803T—Serial No. 323000000 and Up *3437-754* Register at www.Toro.com. Original Instructions (EN)
- Page 2 Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product.
-
Page 3: Table Of Contents
Safety-Alert Symbol Contents The safety-alert symbol (Figure 1) shown in this Safety-Alert Symbol..........3 manual and on the machine identifies important safety Safety ............... 4 messages that you must follow to prevent accidents................4 Safety and Instructional Decals ......6 Setup ................ -
Page 4: Safety
Charge the battery pack with only the battery charger specified by Toro. A charger suitable for Read All Instructions 1 type of battery pack may create a risk of fire when used with another battery pack. - Page 5 Do not disassemble the battery pack. • Replace the battery pack with a genuine Toro battery pack only; using another type of battery pack may cause a fire or risk of injury. • Keep battery packs out of the reach of children and in the original packaging until you are ready to use them.
-
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal140-8474 140-8474 1. Double insulated 2. Do not dispose improperly decal140-8464 140-8464 1. -
Page 7: Setup
Setup Unfolding the Handle Unfold the handle (A of Figure Align the locking button on the lower shaft with the slotted hole on the upper shaft and slide the 2 shafts together (B and C of Figure Note: The locking button clicks into the slotted hole when the shafts are secured (D of Figure Using the provided Allen wrench, tighten the screw on the shaft connector until it is secure (E of Figure... -
Page 8: Installing The Auxiliary Handle
Installing the Auxiliary Handle Separate the auxiliary handle from the handle plate by removing the 4 socket head screws using the provided Allen wrench (A of Figure Line up the auxiliary handle with auxiliary handle plate on the shaft (B of Figure Secure the auxiliary handle to the handle plate with the 4 socket head screws previously removed (C of Figure... -
Page 9: Product Overview
Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. -
Page 10: Operation
Operation Starting the Machine Ensure that the vents on the back of the machine are clear of any snow or ice (Figure g427203 Figure 8 1. 2-speed switch 3. Run trigger 2. Trigger lock Close the battery lid. Shutting Off the Machine To shut off the machine, release the run trigger. -
Page 11: Removing The Battery Pack
Removing the Battery Pack Open the battery lid, press the battery latch to release the battery pack, and slide the battery pack out of the machine (Figure g427216 Figure 9 1. Battery latch Operating Tips • Start the machine and tilt it forward until the scraper blade contacts the ground. -
Page 12: Maintenance
Maintenance Storage Important: Store the machine, battery pack, and DANGER charger only in temperatures that are within the Contact with the rotor can cause serious appropriate range; refer to Specifications (page personal injury. Important: If you are storing the battery pack •... -
Page 13: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The machine does not run or does not run 1. - Page 14 Notes:...
- Page 15 The Toro Company (“Toro”) respects your privacy. When you purchase our products, we may collect certain personal information about you, either directly from you or through your local Toro company or dealer. Toro uses this information to fulfil contractual obligations - such as to register your warranty, process your warranty claim or to contact you in the event of a product recall - and for legitimate business purposes - such as to gauge customer satisfaction, improve our products or provide you with product information which may be of interest.
