CE Kit
Groundsmaster 360 Multi-Purpose Machine
Model No. 30507
Note: Determine the left and right sides of the machine from the normal operating position.
Safety

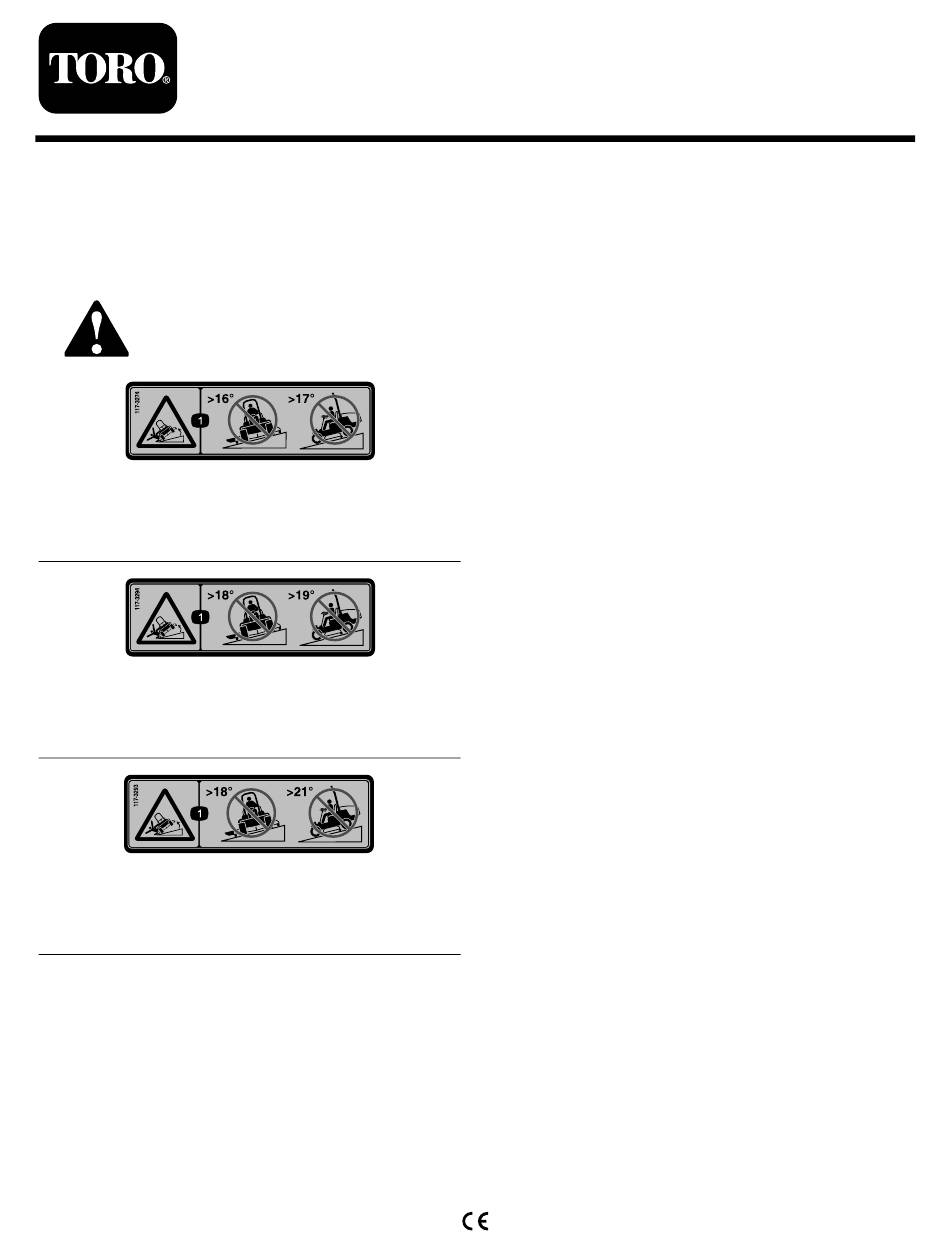

Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of
potential danger. Replace any decal that is damaged or lost.
117-3274
1. Tipping hazard—do not mow across slopes greater than
16 degrees, do not mow up and down slopes greater than
17 degrees.
117-3294
1. Tipping hazard—do not mow across slopes greater than
18 degrees, do not mow up and down slopes greater than
19 degrees.
117-3293
1. Tipping hazard—do not mow across slopes greater than
18 degrees, do not mow up and down slopes greater than
21 degrees.
© 2010—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Form No. 3367-313 Rev A
Installation Instructions
Original Instructions (EN)
Printed in the USA.
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Toro 30507
Summary of Contents for Toro 30507
- Page 1 Form No. 3367-313 Rev A CE Kit Groundsmaster 360 Multi-Purpose Machine Model No. 30507 Installation Instructions Note: Determine the left and right sides of the machine from the normal operating position. Safety Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
- Page 2 Installation Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Push nut (3/8 inch) Secure the storage compartment Locking latch Latch plate Bolt (3/8 x 1 inch) Install the hood locking latch Flange lock nut (3/8 inch) Latch key Flange head bolt (3/8 x 1 inch)
- Page 3 Figure 1 1. Flange head bolt 3. Push nut 2. Storage compartment support bracket Figure 2 1. Plug 4. Flange nut 4. Install the flange head bolts into the storage 2. Latch 5. Latch plate compartment support bracket using push nuts (3/8 3.
- Page 4 Securing the Floor Plate Securing the Seat Plate Parts needed for this procedure: Parts needed for this procedure: Flange head bolt (3/8 x 1 inch) Flange head bolt (3/8 x 1 inch) Push nut (3/8 inch) Push nut (3/8 inch) Retaining nut (3/8 inch) Retaining nut (3/8 inch) Procedure...
- Page 5 Securing the Front Cover Securing the Belt Covers Parts needed for this procedure: Parts needed for this procedure: Push nut Flange head bolt (5/16 x 1-1/4 inches) Retaining nut (5/16 inch) Procedure Push nut 1. Remove the (2) flange head bolts securing the front Procedure cover to the top of the front axle (Figure 5).
- Page 6 Securing the Floor Plate Securing the Fire Wall Parts needed for this procedure: Parts needed for this procedure: Push nut Push nut Procedure Procedure (Cab models only) (Cab models only) 1. Remove the (4) bolts securing the floor plate to the 1.
- Page 7 Installing the Decal Parts needed for this procedure: Safety decal, 117–3274 Safety decal, 117–3294 Safety decal, 117–3293 Procedure 1. Thoroughly clean the area where the decal is to be installed (Figure 9). Figure 9 1. Decal 2. Determine which decal is applicable for the model of the machine, peel the decal from the backing and install it in place.
