Campbell CELL200 Series Quick Deploy Manual

1. Introduction
This Quick Deploy Guide is a general reference to give the
installer an overview of the steps required to make this
system operational. The Product Manual is the definitive
source for detailed installation instructions and information.
For best results, update to the latest data logger operating
system and version of Device Configuration Utility.
NOTE:
CR3000, CR1000 and CR800-series users must refer to the
CELL200 Product Manual. This Quick Deploy Guide applies
to the CR300, CR1000X and CR6 data loggers. For any other
loggers, please check the Product Manual or contact
Campbell Scientific.
2. Selecting a data service
Before installing a data logging system with telemetry, you
will need a SIM and data plan. For most applications, Telstra
will offer the best coverage, especially in regional areas. Telstra
and Optus coverage maps can be found on each provider's
respective websites.
The CELL220 and CR300-CELL220 will work with standard data
plans, no extra steps are necessary thanks to the
complimentary Konect Pakbus Router service. A micro-SIM
(3FF) is the correct size for use with the CELL220.

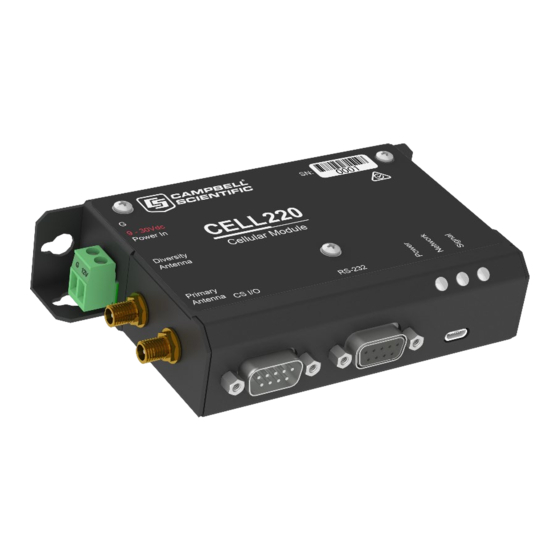

4G LTE Cellular Module
For Private Dynamic IP Addresses
Part Number 34285
Revision: 04/2020
www.campbellsci.com.au/cell220
3. Install the SIM card
1. Remove the SIM card cover.
2. Note the location of the notched corner for
correct alignment. The gold contact points of the
SIM face down when inserting the SIM card as
shown in FIGURE 3-1 (p. 2). Gently slide the card
into the slot until it stops and locks into place. To
3. Replace the SIM card cover.
eject the SIM card, press it in slightly and release.
4. Konect PakBus Router setup
Get started
4. 1
Open a web browser and go to www.konectgds.com.
First-time users need to create a free account. After you
submit your information, you will receive two emails up to five
minutes apart. One email will contain a Passport ID and the
other your Password. If emails are not received, check your
email junk folder.
