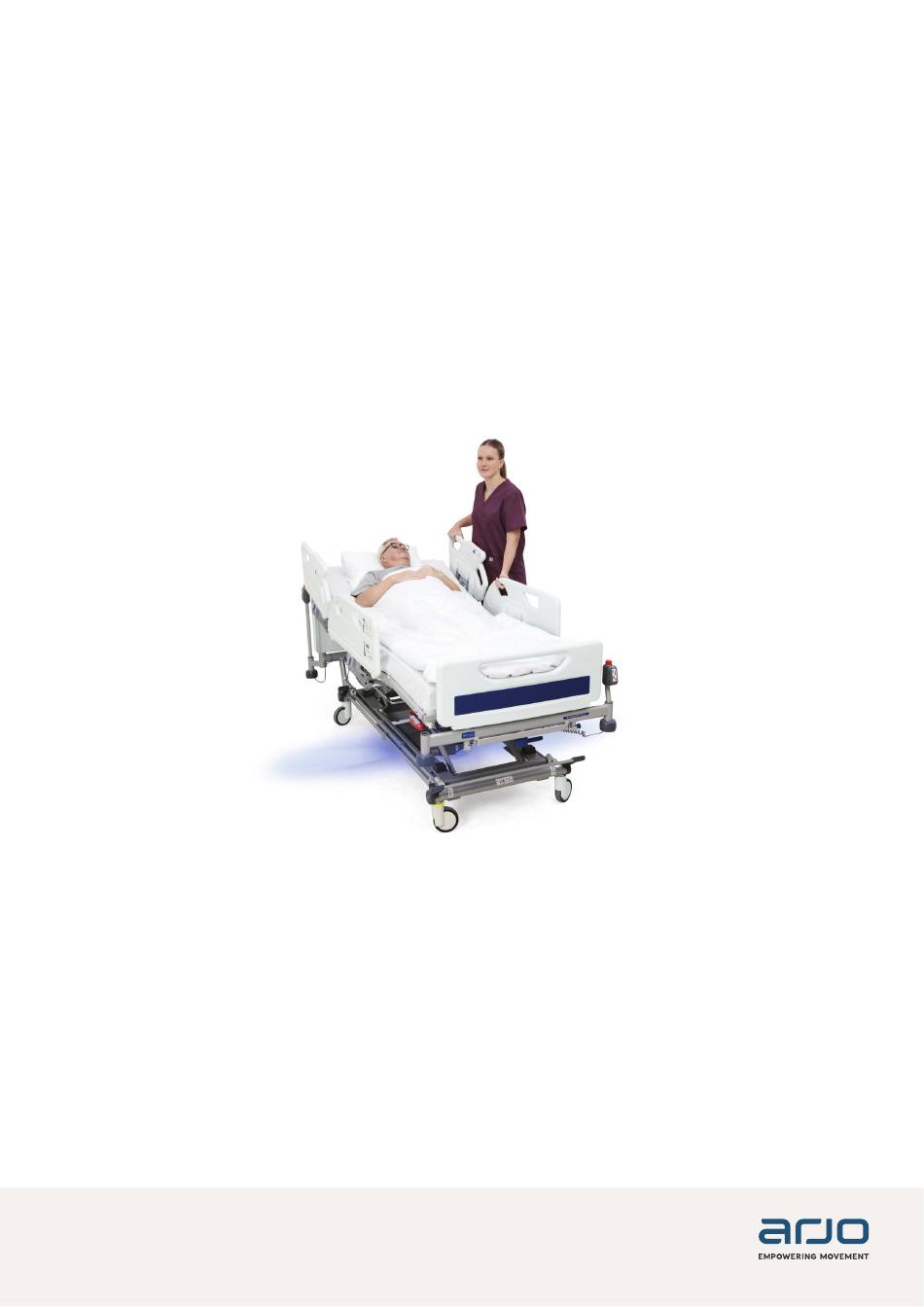

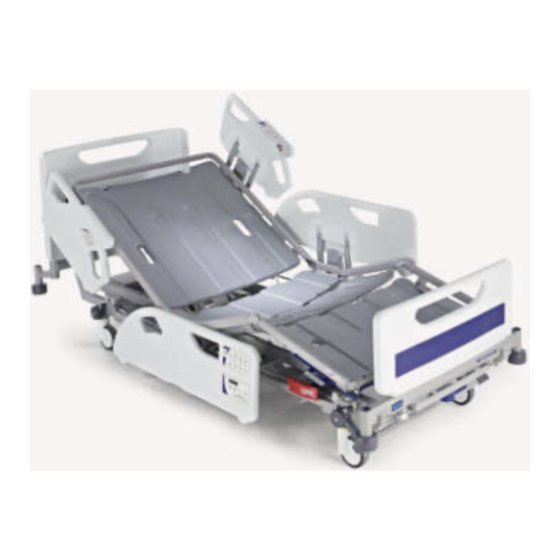

- Page 1 INSTRUCTIONS FOR USE IndiGo Intuitive Drive Assist 416260-EN Rev 4 · 02/2023...
- Page 2 © Arjo 2023. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the consent of Arjo.
-
Page 3: Table Of Contents
..........................4 Safety Instructions ........................4 Introduction ..........................5 Product Overview........................5 Intended use for IndiGo Drive Assist ..................5 Before Using IndiGo ........................6 Using IndiGo ..........................6 IndiGo Activation / Deactivation and Brakes ................ 6 Emergency Stop Switch ...................... -
Page 4: Foreword
Ensure all physician orders and facility protocols authorized by Arjo. Contact Arjo for information are followed. regarding maintenance and repair. Refer to the IFU of the bed to which IndiGo for intended use and complete system information. WARNING IndiGo is available on the following bed frame... -
Page 5: Introduction
INTRODUCTION These instructions contain information about IndiGo on Arjo beds. IndiGo works as an Intuitive drive assist when moving beds. NOTE IndiGo must be used by appropriately trained caregivers or porters with adequate product knowledge. Product Overview Fig. 1 1. Cover 2. -
Page 6: Before Using Indigo
IndiGo Activation / Deactivation and Brakes Activate / deactivate IndiGo and brake using the pedals located on each corner of the bed. Operate the pedals with your feet while wearing suitable shoes. Do not operate the pedals with your hands. -
Page 7: Emergency Stop Switch
EMERGENCY STOP SWITCH The IndiGo Intuitive Drive Assist comes equipped with Emergency Stop Switches located at both the foot and head ends of the bed. NOTE The emergency stop switch provides a gradual, slow stop rather than an immediate hard stop. -
Page 8: Move The Bed
IndiGo is now activated. Fig. 10 Move the bed 360 interface Since IndiGo is built into the bed or handle. Push or pull the bed from the foot board, head board or the side rails as you normally would when moving the bed. - Page 9 Maneuverability IndiGo replaces the bed's ordinary steer lock function with a drive wheel centered under the bed, which taking corners or full 360° turns. See Fig. 12 and 13 Fig. 12 Fig. 13 IndiGo Ensure there is space to operate before forward or reverse movement.
-
Page 10: Sleep Mode
IndiGo reacts to force applied by the user. IndiGo gives progressive assistance up to a maximum speed of 5km/h (3mph). Sleep Mode When IndiGo IndiGo goes into sleep To re-engage IndiGo, move the brake pedal to the free position and then back up to the activated position. IndiGo is now active. -
Page 11: Light Indications
Refer to Troubleshooting section for more information. AFTER USING IndiGo 1. Deactivate IndiGo and apply brakes by placing the pedal in the most downward position. See Fig. 17 2. Charge IndiGo by connecting the bed’s power cord to the wall outlet after every use. -
Page 12: Cleaning And Disinfection
• Visually inspect the gas spring for excessive oil on shaft. Ensure the gas spring maintains downward force on the drive wheel when IndiGo is engaged. If excessive oil is present on the shaft or the gas spring does not maintain downward force when IndiGo is engaged, replace the gas spring. Refer to Gas Spring Replacement procedure in the Service Manual. -
Page 13: Troubleshooting
IndiGo sensor. If needed, activation position loosen the screw on the brake bar sensor to move, then tighten screw to secure in place. Pedal is in IndiGo activation Place pedal in free position so that IndiGo is sideways position not activated. IndiGo the bed on which it is installed. - Page 14 8 hours. Unanticipated noise Failure / Error To complete patient transport / moving the bed deactivate IndiGo by placing pedal in free position or brake by placing pedal in brake position. Contact an Arjo approved service agent.
-
Page 15: Recycling
The expected service life is 10 years when preventative Preventive Maintenance section. Watt - hour rating 108 Wh Nominal Safe Working Load IndiGo has the same Safe Working Load as the bed to RECYCLING The device should be recycled according to local regulations. Battery Lithium-ion. -
Page 16: Explanation Of Symbols Used
EXPLANATION OF SYMBOLS USED Transport and Storage Warning of possible hazard Humidity High and Low Limits Transport and Storage Caution Pressure High and Low Limits Important Operational Information Reference Number Date of Manufacturer IPXX protection provided by enclosures. Refer to instruction manual/booklet - Instructions for use should be read DIRECTIVE 2011/65/EU on the restriction of the use of certain... - Page 17 UK SYMBOL EXPLANATION This section is only applicable to United Kingdom (UK) market when UK marking is applied to the Arjo medical device labelling. UK marking indicating conformity with UK Medical Devices Regulations 2002 (SI 2002 No 618, as amended) UK Responsible Person &...
-
Page 18: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Electrical Magnetic Compatibility Information
WARNING Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the IndiGo, including cables WARNING of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation. - Page 20 Guidance and manufacturer’s declaration – electromagnetic immunity Immunity test EN 60601-1-2 test level Compliance level Electrostatic discharge ±2kV, ±4kV, ±8kV, ±15kV air ±2kV, ±4kV, ±8kV, ±15kV air (ESD) ±8kV contact ±8kV contact EN 61000-4-2 Conducted 3V in 0,15 MHz to 80 MHz 3V in 0,15 MHz to 80 MHz disturbances inducted 6V in ISM and amateur radio bands...
- Page 21 Intentionally left blank...
- Page 22 Intentionally left blank...
- Page 23 Tel: +852 2960 7600 Tel: +351 214 189 815 Fax: +852 2960 1711 Fax: +351 214 177 413 BRASIL E-mail: Portugal@arjo.com Arjo Brasil Equipamentos Médicos Ltda ITALIA Rua Marina Ciufuli Zanfelice, 329 PB02 Arjo Italia S.p.A. SUISSE / SCHWEIZ Galpão - Lapa Via Giacomo Peroni 400-402 São Paulo –...
- Page 24 At Arjo, we believe that empowering movement within healthcare environments is essential to quality care. Our products and solutions are and the prevention of pressure injuries and venous thromboembolism. With over 6500 people worldwide and 65 years caring for patients and healthcare professionals, we are committed to driving healthier outcomes for people facing mobility challenges.
