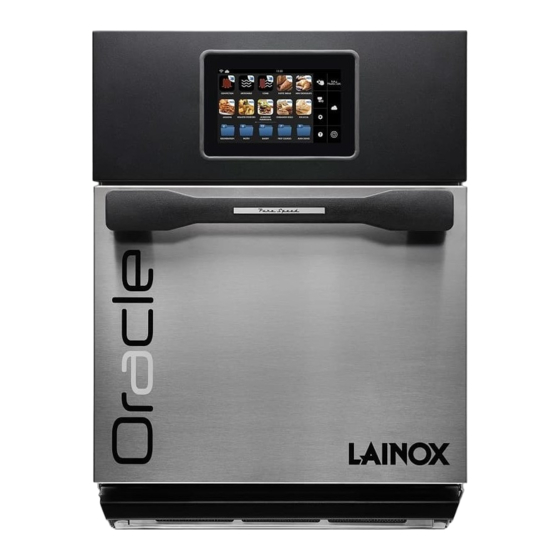

- Page 1 U S E R M A N U A L Oracle CAUTION: Read the instructions prior to using the equipment 90038900rev00...
- Page 2 90038900rev00 - 2 -...
- Page 3 This will make it easier to use your new device and maintain its efficiency over time. For any explanation, please do not hesitate to contact us at tel. +39 0438 9110 - email: lainox@lainox.com Technical support service 90038900rev00 - 3 -...
- Page 4 MODELS STANDARD ORACGS = ORACLE STANDARD Steel colour ORACRS = ORACLE STANDARD Red colour ORACBS = ORACLE STANDARD Black colour BOOSTED ORACGB = ORACLE BOOSTED Steel colour ORACRB = ORACLE BOOSTED Red colour ORACBB = ORACLE BOOSTED Black colour Conformity The conformity of the equipment refers to the complete equipment on delivery.
- Page 5 INDEX Pag. • GENERAL WARNINGS • IMPORTANT SAFETY INSTRUCTIONS • COOKING TIPS • RECOMMENDATIONS FOR USE • FEATURES • BASIC KNOWLEDGE • STARTING ORACLE • PRIMARY ICONS • COOKING MODE SELECTION • HSO MODE - FCS AUTOMATIC COOKING • HSO MODE - SETTING UP HSO MANUAL COOKING •...
-
Page 6: General Warnings
GENERAL WARNINGS Interventions that will become necessary over time, as well as special oven maintenance, must only be carried out by the manufacturer’s personnel or by an authorised technical help service. • Read the warnings in this manual carefully as they provide important information regarding safe use and maintenance. - Page 7 GENERAL WARNINGS • During operation, the oven has hot surfaces. Take care! • CAUTION! During use, the oven’s surfaces are hot as indicated by the stickers marked with the international symbol IEC60417 – 5041 . Take care! • CAUTION: Hot steam may be released when the door is opened.
- Page 8 GENERAL WARNINGS • Treatment of chemical substances: • Use appropriate safety measures. Always refer to the data sheets on safety and to the labels on the product used. • Use the PPEs recommended in the safety data sheets. • The operator must work on the machine when wearing PPEs •...
- Page 9 GENERAL WARNINGS Electrical safety and advice on additional electrical protection • Commercial kitchens and catering areas are environments in which electrical appliances can be placed near liquids, or operate in humid conditions or where the limitation of movement for installation and assistance is evident. •...
-
Page 10: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ⚠ RECOGNIZE THIS SYMBOL AS A SAFETY MESSAGE ⚠ WARNING When using electrical equipment, basic safety precautions should be followed to reduce the risk of burns, electrical shock, fire, or injury to persons including the following. READ all instructions before using equipment. DO NOT operate this equipment if it has a damaged cord or plug, if it is not working properly, or if it has READ AND FOLLOW the specific “PRECAUTIONS... - Page 11 IMPORTANT SAFETY INSTRUCTIONS ⚠ ⚠ WARNING WARNING To avoid risk of fire in the oven cavity: Liquids such as water, coffee or tea can be overheated beyond boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling Do not overcook food.
-
Page 12: Cooking Tips
COOKING TIPS Metal containers can be used in the ORACLE oven with a height no more than 1½ inches (38mm). Different types of metal conduct heat at different speeds. Aluminium heats faster than stainless steel. Avoid using silicone pans and accessories. Make use of the accessories supplied or available in the catalogue. -
Page 13: Recommendations For Use
RECOMMENDATIONS FOR USE First ignition settings Before using a new oven for the first time: remove the Oracle Washable Box (possibly supplied or purchased separately), clean the oven using OSOCL detergent with a damp cloth and rinse; spray OSOPR oven protection product on a damp cloth and wipe all the internal surfaces. Do not remove the OSPPR oven protective product. - Page 14 FEATURES 3 - 4 1. Door handle 7. “ORACLE WASHABLE BOX” Ergonomic design for one-handed operation. The oven can be equipped with a removable and washable “ORACLE WASHABLE BOX”, useful for 2. Air filters improving the cleaning of the oven, to be replaced The oven is equipped with 3 magnetic air filters: in case of excessive delamination or wear.
-
Page 15: Basic Knowledge
BASIC KNOWLEDGE You can interact with ORACLE using your fingertips to touch, drag and scroll the objects on the touchscreen. Control the touchscreen using the following actions: • Touch Touch once to select or start a recipe. • Press and hold Hold an element pressed for more than 2 seconds to select one of the available options. -
Page 16: Primary Icons
PRIMARY ICONS 1 - ON/OFF buttonPulsante di accensione/spegnimento 2 - Settings 3 - User Manual 4 - HSO Cooking mode 5 - Combi Cooking mode 6 - FCS Automatic Cooking 7 - Cooking folder 8 - MCS Automatic Cooking 9 - Manual mode 10 - Preheating 11 - Programming mode 12 - My Nabook... -
Page 17: Cooking Mode Selection
COOKING MODE SELECTION The Oracle oven allows you to work in two modes: HSO (High Speed Oven) and COMBI. In HSO mode, the oven with the combined action of microwaves and hot air allows you to offer your customers ready meals in a few seconds. In COMBI mode, the oven allows you to use the convection, microwave or combined Convection + microwave cooking mode for maximum flexibility in the mise en place. - Page 18 HSO MODE FCS AUTOMATIC COOKING Select the FCS icon to begin “one touch” cooking, starting with predefined settings. Oracle starts and when it reaches the set temperature, a popup appears instructing you to insert the product. Press “INFO” to view additional information regarding the recipe (Context, Ingredients, Process, Accessories and Presentation).
- Page 19 HSO MODE SETTING UP HSO MANUAL COOKING In HSO mode, press the icon to set a Manual cooking. The following cooking parameters can be customised: • Time This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it.
- Page 20 HSO MODE SETTING UP HSO MANUAL COOKING • Microwave This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. To make an accurate setting, press [+] to increase the value of a unit or [-] to decrease the value of a unit.
-
Page 21: Combi Mode
COMBI MODE MCS AUTOMATIC COOKING Select the MCS icon to begin “one touch” cooking, starting with predefined settings. Oracle starts and when it reaches the set temperature, a popup appears instructing you to insert the product. Press “INFO” to view additional information regarding the recipe (Context, Ingredients, Process, Accessories and Presentation).. - Page 22 COMBI MODE SETTING UP COMBI MANUAL COOKING In COMBI mode, press the icon to set a Manual cooking. Select a cooking mode. The cooking modes are: Convection, Microwave and COMBI (Convection + microwave). Once the cooking mode has been set, the following cooking parameters can be customised: •...
- Page 23 COMBI MODE SETTING UP COMBI MANUAL COOKING • Time This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. To make an accurate setting, press [+] to increase the value of a unit or [-] to decrease the value of a unit.
- Page 24 PROGRAMMING Press the icon to create a new Manual Program, Multi-level program or modify an existing program. SETTING UP A MANUAL PROGRAM Press the icon to create a new Manual Program. Proceed as if setting up Manual cooking. To add a cycle, press "+" and set the subsequent cycles as with manual cooking until the program is completed.
-
Page 25: Saving A Program
PROGRAMMING SAVING A PROGRAM Press the icon to access the screen to save the program. • Set the name of the program (minimum 3 characters) • Set the program icon by pressing the icon and selecting one from among those proposed. - Page 26 MY NABOOK Press the icon to access My Nabook. My Nabook is the archive of all of the Oracle cooking programs. From My Nabook you can manage all of the programs contained in Oracle. By selecting a program you can see all of the information regarding the program and the related cooking phases.
-
Page 27: Search Programs
MY NABOOK SEARCH PROGRAMS In My Nabook I can look up programs by: • Name: by keying the text to look for in the appropriate field. • Type: by choosing from among the available values (for example: Pasta, Meat, Vegetables, Fish, Smokegrill, Night Cooking, Pastries, etc.). -
Page 28: Cloud Access Configuration
CLOUD ACCESS CONFIGURATION INTRODUCTION: The requirements to access the Oracle Cloud functionality are as follows: Wi-Fi connection with internet access Account registration to access the Cloud. VERIFY THE SOFTWARE VERSION Press the icon to access the Oracle settings. 90038900rev00 - 28 -... - Page 29 CLOUD ACCESS CONFIGURATION ACTIVATION OF THE WI-FI CONNECTION Press the icon to access the Oracle settings. Press the icon “Wi-Fi Settings” to check the activation and availability of the Wi-Fi connection. Press the icon (1) setting it to ON to activate the Oracle Wi-Fi connection WIFI 1 Select a Wi-Fi network (2) displayed...
- Page 30 CLOUD ACCESS CONFIGURATION REGISTERING THE CLOUD ACCOUNT Press the icon to access the Oracle settings. Press the icon “Cloud Settings” (1) to access the Registration/Login to the Oracle Cloud screen. Select the “Registration” icon (2) and enter the information required: Name Last Name Username...
- Page 31 CLOUD ACCESS CONFIGURATION Read the Privacy terms and select the icon “ACCEPT” (4) to continue with the registration. Wait a few seconds for this window to appear. A message will appear on the display indicating that registration is complete. Press OK (5). You will receive an Email at the address given during registration including the link to complete the...
- Page 32 CLOUD ACCESS CONFIGURATION Click on the link in the Email (6) to complete the registration. 90038900rev00 - 32 -...
- Page 33 CLOUD ACCESS CONFIGURATION LOGIN TO THE CLOUD ACCOUNT Press the icon to access the Oracle settings. Press the icon “Cloud Settings” to access the Registration/Login to the Oracle Cloud screen. E n t e r t h e “ U s e r n a m e ” a n d “Password”...
-
Page 34: Using The Cloud
USING THE CLOUD DOWNLOAD RECIPES Make sure that the symbols for the Wi-Fi and CLOUD connection appear in the upper left. Press the CLOUD key The display will show the recipes available in the CLOUD. The recipes marked in green are already present in your Oracle. - Page 35 USING THE CLOUD To import the recipes in Oracle, select the recipe to download and pull the recipe icon to the dedicated area. P r e s s t h e i c o n “ D o w n l o a d to Oracle”...
-
Page 36: Software Update
USING THE CLOUD SOFTWARE UPDATE Oracle can be constantly updated to the latest available Software version. Press the icon to access the Oracle settings. If there is a Software update available there will be an icon in the notifications area in the top left. Press the icon “Software Update”... - Page 37 USING THE CLOUD Select “Verify updates” Oracle will automatically look for any CHECK... updates in the Cloud. UPDATE If available, press the update icon. READY If there is no update available, press the “Back” icon to return to the UPDATE Home page.
-
Page 38: Care And Cleaning
CARE AND CLEANING ⚠ Follow the recommendations below and on the following page for proper WARNING maintenance of the ORACLE oven. ⚠ The use of caustic cleaning products or those containing ammonia, phosphates, chlorine, sodium or potassium hydroxide (caustic soda) can damage essential oven parts. - Page 39 CARE AND CLEANING Recommended procedures DO NOT use harsh chemicals. DO NOT use abrasive sponges to clean the cover of the upper surface of the cooking compartment DO NOT spray liquids on the screen. DO NOT cook food wrapped in plastic wrapping. DO NOT accelerate cooling of the oven by using water or ice.
-
Page 40: Daily Cleaning
CARE AND CLEANING DAILY CLEANING: Shut oven off by pressing ON/OFF button. The fan will run for a few minutes to cool the oven interior faster. Let the oven interior reach room temperature before cleaning. Note: To accelerate cool down time of oven, put a tray filled with ice in oven cavity after shutting the oven down. Once cooled, remove cook plate and other accessories from the cavity. -
Page 41: Before Calling Support
BEFORE CALLING SUPPORT ⚠ WARNING To avoid electrical shock which can cause severe personal injury or death, do not remove outer case at any time. Only an authorized service technician should remove outer case. This is a class A product. This could cause radio interference in a household environment. In this case, it may be necessary to take suitable measures. - Page 42 SETTINGS Press the icon to access the Oracle settings. • In this menu, you can modify the settings for: Software Update Block settings User preferences Home icon size Brightness and Energy Savings, settings Sounds, Language Energy Monitor Wi-Fi settings Cloud settings Customer service Date and time settings SERVICE menu...
-
Page 43: Block Settings
SETTINGS BLOCK SETTINGS Press the icon to access the block settings I t i s p o s s i b l e t o a c t i v a t e t h e following blocks: • Activate profile block 1st level (recipes are not deleted/ stored) •... -
Page 44: User Preferences
SETTINGS USER PREFERENCES Press the icon to access the user preferences Brightness and Energy Saving: Brightness settings, flashing light at end-of-cooking and Energy saving Sounds: Volume settings and sound configuration Language: L a n g u a g e s e t t i n g , u n i t measurement and keyboard choice/configuration... - Page 45 SETTINGS USER PREFERENCES BRIGHTNESS AND ENERGY SAVINGS Press the icon to access the Brightness and Energy Savings settings Brightness setting: D r a g t h e c u r s o r t o i n c r e a s e o r decrease the brightness of the display Energy savings after: Drag the cursor to set the period of...
- Page 46 SETTINGS USER PREFERENCES SOUNDS Press the icon to access the Sound settings Enable sounds: Set to ON to enable sounds Volume setting: D r a g t h e c u r s o r t o i n c r e a s e o r decrease the volume Alarm: Select the sound for alarms Cooking ended: Select the sound for...
- Page 47 SETTINGS USER PREFERENCES LANGUAGE Press the icon to access Languages and Unit of measurement Set Interface language: Select the language from the drop- down menu Show real time temperature when cooking: Click on the box to enable the function U n i t m e a s u r e m e n t f o r temperature:...
-
Page 48: Wifi Configuration
SETTINGS WIFI CONFIGURATION Press the icon to access WIFI configuration Press the icon “Enable WIFI” to access the WIFI networks available. See page 29. 90038900rev00 - 48 -... -
Page 49: Cloud Settings
SETTINGS CLOUD SETTINGS Press the icon to access the Cloud See page 30. 90038900rev00 - 49 -... -
Page 50: Date And Time
SETTINGS DATE AND TIME Press the icon to access the Date and Time settings Date setting: Click on date and select the date from the calendar Time setting: Click on time and set it by dragging the clock hands. Time zone: Select your time zone from the drop- down menu. - Page 51 SETTINGS Press the icon to access the USB menu HACCP: Allows you to download the HACCP log for a specific period of time. INFO: Create a backup of the technical data. Backup: Allows you to create and import a backup of recipes and/or settings. User preferences backup: Allows the creation or import of the user preferences backup.
- Page 52 SETTINGS HACCP Press the icon to download the HACCP log Select the required period for which to download the HACCP log: Set the start date and time. Set the end data and time. Insert a USB key and press the SAVE button.
- Page 53 SETTINGS INFO Press the icon to download the technical service information for the oven Allows you to download the technical service information log for the oven Insert a USB key and press the INFO button A pop-up window will indicate that the data is being exported to the USB key.
- Page 54 SETTINGS BACKUP Press the icon to create or import a backup file of recipes and/or settings. Insert USB key. Select “Create” to create a backup. Select the type of backup you want to create: Oracle Recipes: Save the recipes only on the USB key Settings: Save the settings only on the USB key...
- Page 55 SETTINGS USER PREFERENCES BACKUP Press the icon to create or import the user preferences backup. Insert USB key. S e l e c t “ C r e a t e ” t o r u n a u s e r preferences backup.
- Page 56 SETTINGS SOFTWARE UPDATE Press the icon to access Software update. Select the type of software update you want to perform: From USB key: • Interface software) • Base software) • Complete software (Interface + Base) From the Cloud: • Complete software (Interface + Base) See instructions on page 47 We recommend always running a Complete update...
- Page 57 SETTINGS HOME PAGE AND MESSAGES Press the icon to access the home page settings and messages. Select Home icon size: Allows you to select the size of the icons on the home page. Small icons: to view 20 icons on the home page Large icons: to view 12 icons on the home page...
- Page 58 SETTINGS HOME PAGE AND MESSAGES Remove all the recipe shortcuts in the home page: Press the “REMOVE” key to eliminate all the recipe shortcuts from the home page. A pop-up window will appear asking for confirmation to remove all the recipe shortcuts from the home page.
- Page 59 SETTINGS HOME PAGE AND MESSAGES If you press “Continue”, the home page will be blank. To add recipes to the home page, you can: • Create new recipes • Import recipes from My Nabook • Import Recipes from the Cloud Shortcuts for manual cooking: If selected, the shortcuts for manual cooking and regeneration are shown...
- Page 60 SETTINGS CONSUMPTION MONITOR Press the icon to access the consumption monitor for the oven. The Energy Monitor allows you to view the information about oven consumption in a specific period. Period: Select the period for which you wish to analyse the consumption data: •...
-
Page 61: Customer Service
SETTINGS CUSTOMER SERVICE Press the icon to access the Customer service menu Allows you to enter and view the customer service numbers: Chef Support and Technical support. 90038900rev00 - 61 -... -
Page 62: Service Settings
SETTINGS SERVICE SETTINGS Press the icon to access the Service settings. R E S E R V E D F O R A U T H O R I S E D TECHNICAL PERSONNEL Press the “SERVICE settings” icon to access the Oven settings. - Page 64 ALI Group S.r.l. - Via Schiaparelli 15 - Z.I. S. Giacomo di Veglia - 31029 Vittorio Veneto (TV) - Italy - Tel. (+39) 0438 9110 - Fax (+39) 0438 912300...
