Summary of Contents for Lainox Oracle Series

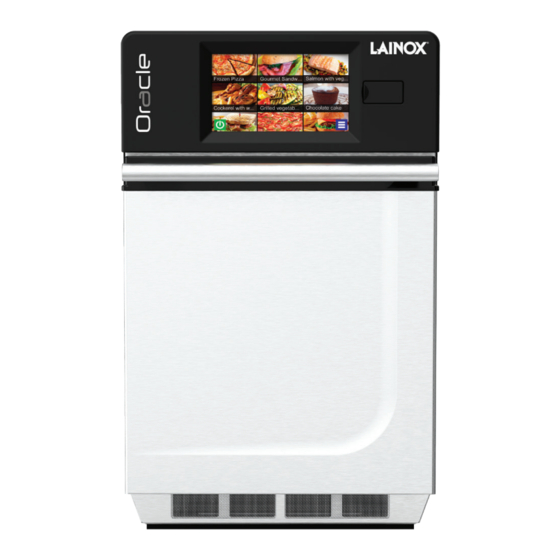

  • Page 1 USER MANUAL Oracle WARNING: Read the instructions before using the device 90035620rev01...
  • Page 2 90035620rev01...
  • Page 3 We recommend that you carefully read the warnings and advice included in this manual. This will make it easier to use your new device and maintain its efficiency over time. For any explanation, please do not hesitate to contact us at tel. +39 0438 9110 - email: lainox@lainox.com Technical support service 90035620rev01...
  • Page 4 MODELS ORAC1 = Oracle with one magnetron ORAC2 = Oracle with two magnetrons The manufacturer declines all responsibility for possible inaccuracies in this It is forbidden to reproduce or photocopy, even partially, the text or images manual due to printing or transcription errors. It reserves the right to make in this manual, without prior authorisation from the manufacturer.
  • Page 5: Table Of Contents

    Index General warnings ��������������������������������������������������������������������������������������������������������������������������������������������������6-9 Important Safety Instructions ���������������������������������������������������������������������������������������������������������������������������� 10-11 Grounding and Installation ������������������������������������������������������������������������������������������������������������������������������������� 12 Cooking Advice ������������������������������������������������������������������������������������������������������������������������������������������������������� 13 Features�������������������������������������������������������������������������������������������������������������������������������������������������������������������� 14 Touch Screen Menu Descriptions ������������������������������������������������������������������������������������������������������������������������� 15 Touch Screen Icon Descriptions ���������������������������������������������������������������������������������������������������������������������������� 16 General Oven Operation ���������������������������������������������������������������������������������������������������������������������������������������� 17 Settings for first power on �������������������������������������������������������������������������������������������������������������������������������������� 18 Language setting ����������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 6: General Warnings

    GENERAL WARNINGS Any interventions, which may be called for over time, and any unscheduled oven maintenance must only be carried out by personnel authorised by the manufacturer or by an authorised service technician� • Read the warnings contained in this manual carefully because they provide important indications on safe use and maintenance.
  • Page 7 GENERAL WARNINGS • When in use, the surfaces of the oven are hot. Take care! • WARNING: When the door is open, hot steam may escape. When operating the appliance, use personal equipment for protection against heat. • If the power cable is damaged, it must be replaced by the manufacturer or by the technical support service or, in any case, by a person with similar qualifications to avoid any risks�...
  • Page 8 GENERAL WARNINGS • If technical support is required, then all the information on the data plate must be provided, together with detailed information about the defect, so that the support service can understand the problem. • The power supply to the oven must have a circuit-breaker master switch with a minimum opening distance between the contacts of at least 3 mm per pole.
  • Page 9 GENERAL WARNINGS Electrical Safety and Advice Regarding Supplementary Electrical Protection • Commercial kitchens and foodservice areas are environments where electrical appliances may be located close to liquids, or operate in and around damp conditions, or where restricted movement for installation and service is evident.
  • Page 10: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS ⚠ RECOGNIZE THIS SYMBOL AS A SAFETY MESSAGE ⚠ WARNING When using electrical equipment, basic safety precautions should be followed to reduce the risk of burns, electrical shock, fire, or injury to persons including the following. 1� READ all instructions before using equipment.
  • Page 11 ⚠ ⚠ WARNING WARNING To avoid risk of fire in the oven cavity: Liquids such as water, coffee or tea can be overheated beyond boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling a�...
  • Page 12: Grounding And Installation

    Grounding and Installation ⚠ Grounding/Earthing Instructions WARNING The oven MUST be grounded� Grounding reduces risk of electric shock by providing a discharge wire for the electric To avoid risk of electrical shock or current if an electrical short occurs. This oven is equipped with death, this oven must be grounded a cord which includes a grounding wire and grounding plug.
  • Page 13: Cooking Advice

    Cooking tips Cooking tips 1� Metal containers can be used in the ORACLE oven with a height no more than 1½ inches (38mm). Different types of metal conduct heat at different speeds. Aluminium heats faster than stainless steel. Avoid using silicone pans and accessories.
  • Page 14: Features

    Features 6� USB Port / Protective Cover 1� Door Handle The oven is has a USB Data Port. Use with standard flash Ergonomically designed for one-handed operation. drives. 2� Unit Serial Number 7� Smooth oven tray Located on the rear of the oven. The oven is equipped with a removable oven tray which aids in browning and crisping of breads, pizzas, and 3�...
  • Page 15: Touch Screen Menu Descriptions

    Touch Screen Menu Descriptions MENU SCREEN • Scroll up or down to choose from different categories CHANGE TEMPERATURE • Change current oven temperature MANUAL RECIPE • Manually enter settings for a recipe EDIT RECIPE • Change current oven temperature MOVE RECIPE •...
  • Page 16: Touch Screen Icon Descriptions

    Touch Screen Icon Descriptions POWER ON ICON • Press to preheat the oven. (Fan will continue to run if temperature is over 95°C / 200°F). MENU ICON • Press to access a menu screen for manually editing recipes, changing user options, etc. HOME ICON •...
  • Page 17: General Oven Operation

    General Oven Operation Power Off Oven Methods of Cooking Power On Oven, and Programming Preheat At the end of the day, • Cooking with Preprogrammed This oven can be set to a turn the oven off by Menu Items preheat temperature between touching the green 95 °C (200 °F) and 270 “Power”...
  • Page 18: Settings For First Power On

    Settings for first power on Language setting: 1� Touch green power icon 2� Touch the blue menu icon at the bottom of the screen. 3. Scroll down and touch to select “User Options”. 4� Touch “Language” and choose the desired language (Default: English) 5�...
  • Page 19: Pre-Set Menus

    Preprogrammed Menu The home screen on the oven displays recipe options. Scroll up and down with your finger to navigate through on screen menus and recipes. After the oven has preheated, the menu appears. Cooking with pre-set menu settings 1� After oven has preheated to desired temperature, open oven door, place food in oven and close door 2�...
  • Page 20: Manual Cooking

    Manual Cooking Note: “Manual cooking” must be enabled in user options Use manual cooking when a specific entered time and cooking power levels are desired. It’s very useful when you are experimenting with new food items. The total maximum cooking time is 99:99 (100 minutes and 39 seconds)� Microwave and Fan can be set to power levels between 0-100%.
  • Page 21: Manual Programming

    Manual Programming Save a menu item from manual cooking: 1� To save the settings and create menu item, touch the blue save icon. 2� Choose a background colour and icon, or an image to customize the menu item. Touch the right arrow to move to the next screen. Name folder and touch the green check mark to save.
  • Page 22: Manual Organization: Folders

    Manual Organization: Folders Manually create a recipe folder: 1� Touch the blue menu icon at the bottom of the screen. 2� Touch the “Manage Folders” option in the menu screen. 3. To create new folder, touch the grey folder icon at the bottom of screen.
  • Page 23: Manual Organization: Tabs

    Manual Organization: Tabs Manually create a recipe tab: 1� Touch the blue menu icon at the bottom of the screen. 2� Touch the “Manage Tabs” option in the menu screen. 3. Touch the “Add Tab” option 4� A new tab will appear at the top of the screen. 5�...
  • Page 24: Oven Programming: Usb Flash Drive

    Oven Programming: USB Flash Drive Warning: Uploading a new file will overwrite existing items on oven. To ensure items are not lost, first backup files by exporting to USB drive. Export menu via USB Flash Drive 1� Touch the blue menu icon at the bottom of the screen. 2�...
  • Page 25: Maintenance And Cleaning

    Care and Cleaning ⚠ WARNING Follow the recommendations below and on the following page for proper maintenance of the ORACLE oven. ⚠ The use of caustic cleaning products or those containing ammonia, phosphates, chlorine, sodium or potassium hydroxide (caustic soda) can damage essential oven parts.
  • Page 26: Daily Cleaning

    Care and Cleaning DAILY CLEANING: 1� Shut oven off by pressing ON/OFF button. The fan will run for a few minutes to cool the oven interior faster. Let the oven interior reach room temperature before cleaning. Note: To accelerate cool down time of oven, put a tray filled with ice in oven cavity after shutting the oven down. 2�...
  • Page 27: User Options

    User Options There are several options you can change to customize the operation of the oven for your business. The table on page 28 shows these options; the factory setting is shown in bold type. Accessing and modifying user options: 1�...
  • Page 28: Default User Options

    Default User Options The table below shows these options; the factory setting is shown in bold type. STANDARD DEFAULT PER MODEL User Option ORACLE, 50Hz ORACLE, 60Hz Language English, Chinese (Mandarin), Japanese, English, Chinese (Mandarin), Japanese, Korean, Russian, German, French, Italian, Korean, Russian, German, French, Italian, Polish, Danish, Greek, Latin, Swedish, Polish, Danish, Greek, Latin, Swedish,...
  • Page 29: Before Calling Support

    Before calling support ⚠ WARNING To avoid electrical shock which can cause severe personal injury or death, do not remove outer case at any time. Only an authorized service technician should remove outer case. This is a class A product. This could cause radio interference in a household environment. In this case, it may be necessary to take suitable measures.
  • Page 30 NOTES 90035620rev01...
  • Page 32 ALI Group S.r.l. - Via Schiaparelli 15 - Z.I. S. Giacomo di Veglia - 31029 Vittorio Veneto (TV) - Italy - Tel. (+39) 0438 9110 - Fax (+39) 0438 912300...
