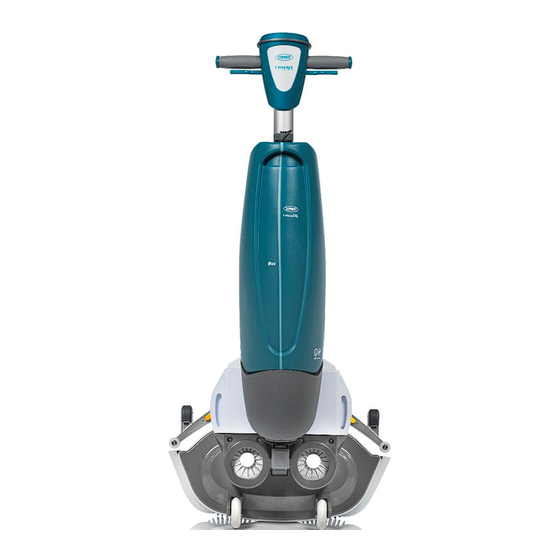

Tennant i-mop XL User Manual

Auto scrubber for hard floor surfaces
Hide thumbs Also See for i-mop XL:
Table of Contents

Advertisement

Quick Links

i-mop
XL
Auto scrubber for hard floor surfaces
User manual
Model part No. : 1264254
Tennant Company
10400 Clean Street, Eden Prairie,
MN 55344-2650
Telephone: (800) 553-8033
Internet:
www.tennantco.com
To view, print, download the parts
manual visit:
www.tennantco.com/manuals
Revision: 00 (10/2022)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-mop XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant i-mop XL

Summary of Contents for Tennant i-mop XL

  • Page 1  Auto scrubber for hard floor surfaces User manual Model part No. : 1264254 Tennant Company 10400 Clean Street, Eden Prairie, MN 55344-2650 Telephone: (800) 553-8033 Internet: www.tennantco.com To view, print, download the parts manual visit: www.tennantco.com/manuals Revision: 00 (10/2022)

  • Page 2: Preface

    Preface Thank you for choosing the i-mop® XL, the auto scrubber that cleans faster, cleaner, safer, greener, and is better for everyone. The i-mop® XL’s compact design allows you to clean right to the edge and under obstacles, minimizing manual scrubbing. The battery operated i- mop®...

  • Page 3: Target Audience

    Target audience This user manual is intended for operators of the i-mop XL and their supervisors, as well as ® partners and importers. Operators of the i-mop ® The i-mop XL may only be operated by a person who has correctly read and understood the ®...

  • Page 4: Reading Guide

    Reading guide The following symbols and terms are used throughout this manual to alert the reader to safety issues and important information: Symbol Term Explanation WARNING Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries of the operator or bystanders and light and/or moderate damage to the product or the environment.

  • Page 5: Table Of Contents

    Content Preface ......................................2 Purpose of the user manual ..............................2 Target audience .................................... 3. Operators of the i-mop XL ..............................3 ® Reading guide ....................................4 Content ......................................5 Introduction ................................... 7 1.1. Intended use of the product ..........................7 1.2.
  • Page 6 5.2. Assembly .................................. 18 5.2.1 Charging the battery ..........................18 5.2.2 Attaching the brushes ..........................18 5.2.3 Attaching the squeegee..........................19 5.2.4 Installing the cleaning solution tank ....................20 5.2.5 Installing the recovery tank ........................20 Operation ..................................... 21 6.1. Before you start ..............................

  • Page 7: Introduction

    1. Introduction The i-mop XL is a safe, user-friendly machine. This manual helps you to get started and ® explains the operation and maintenance procedure. You will be pleasantly surprised by the fast and effective use of the battery operated i-mop XL.

  • Page 8: Non-Intended Use Of The Product

    1.2. Non-intended use of the product WARNING Non-intended use can have consequences for the safety of operators and bystanders and will void the warranty on the product. • NEVER operate the i-mop XL near flammable dusts, liquids or vapors. ® NEVER operate the i-mop XL when flammable or poisonous liquids like gasoline, oil, •...

  • Page 9: Specifications

    1.5. Specifications Figure 2 18.89 14.17 18.11 Product size: 120 x 48 x 46 cm | 47.25”x 18,89” x 18,11” Product size in store position: 120 x 48 x 36 cm | 47.25”x 18,89” x 14.17” Weight (including batteries): 23.6 kg | 52 lbs Li-on battery: DC (25.2V, 9Ah, 222Wh) Battery capacity:...

  • Page 10: Warranty

    XL outside will void the warranty on the product. ® Fill out the supplied machine installation/warranty report and send to Tennant. 1.7. Identification The ID tag, containing a serial number and production number, can be found on the bar behind the wastewater tank.

  • Page 11: Description

    2. Description The compact i-mop XL consists of two main parts: ® • The body that contains the motor, cleaning solution tank, recovery tank, handle with triggers and control panel. • The scrub deck that contains the brushes and squeegee. The i-mop XL can be folded into a store position;...

  • Page 12: Safety

    3. Safety Safety comes first. Therefore, please take your time to read and understand these safety instructions. Improper use can case cause harm or void the manufacturer’s warranty. 3.1. General safety instructions 3.1.1. Sweep before scrub Remove loose objects from the floor that can be propelled by or caught in the rotating brushes.

  • Page 13: Risks During Operation

    3.2. Risks during operation 3.2.1. Dress safely Do not wear a necktie, scarf, or any loose or dangling clothing or jewelry of any type while operating this i-mop XL. These types of clothing or jewelry could become tangled in rotating ®...

  • Page 14: Transport And Storage

    Unlike previous generations of i-mop, the i-mop XL will only power on when the scrub deck is lowered on the floor. When parked in its upright position, the i-mop XL will remain completely powered off to avoid unwanted battery discharge.

  • Page 15: Transport Outside

    4.3. Transport outside Figure 7 When outside: 1. Put the i-mop XL in store position, see section 4.2. ® 2. Carry the i-mop XL with one hand while holding the handle (Figure 7, pos 1) with your ® other hand. CAUTION The transport wheels are not designed to roll over dirty surfaces, sand can cause the wheels to block.

  • Page 16: Transport In A Vehicle

    4.4. Transport in a vehicle The preferred way to transport your i-mop XL is in an upright position and safely ® secured. 1. Make sure both tanks are empty. 2. Put the i-mop XL in store position, see ® section 4.2. 3.

  • Page 17: Assembly And Installation

    XL body is packed in a single box. The battery and charger are delivered in a ® separate box within this packaging and can be ordered separately. Figure 9 1x i-mop XL main body 1x squeegee assembly (Linatex) 2x brushes (Standard) 2x batteries (i-power 9)

  • Page 18: Assembly

    5.2. Assembly 5.2.1. Charging the battery Charge the battery according to the instructions in the battery charger manual. Make sure the battery is charged regularly. 5.2.2. Attaching the brushes Figure 10 To attach the brushes: 1. Put the i-mop XL in store position, see section 4.2. ®...

  • Page 19: Attaching The Squeegee

    5.2.3. Attaching the squeegee Figure 11 To attach the squeegee: 1. Take the vacuum hose (Figure 11, pos 1). 2. Insert the hose connector (11, pos 2) in the squeegee (Figure 11, pos 3). 3. Twist the hose connector 1/4 turn for a firm fit (Figure 11, pos 2). 4.

  • Page 20: Installing The Cleaning Solution Tank

    5.2.4. Installing the cleaning solution tank 1. Put the tank (Figure 12, pos 1) on the i-mop XL with the valve first. ® 2. Press the tank downward on the nipple to open the valve seal. Push the tank forward into place until you hear a ‘click’.

  • Page 21: Operation

    6. Operation 6.1.1. Before you start Check the brushes and squeegee for wear and tear, see chapter 7 for maintenance instructions. 6.1.2. Inserting the battery CAUTION Only use i-power batteries specifically designed for use in i-mop devices. ® ® Figure 14 1.

  • Page 22: Filling The Cleaning Solution Tank

    6.1.3. Filling the cleaning solution tank 1. Remove the cap on the tank. 2. Pour in a maximum of 1 gal/ 4L of cleaning fluid. 3. Replace cap and make sure it seals tightly. 4. Put the i-mop XL in store position, see ®...

  • Page 23: Operation Procedure

    6.2. Operation procedure 6.2.1. Walking to the job site Figure 16 To move the i-mop XL from one location to another one in a building: ® 1. Put the i-mop XL in store position, see section 4.2. ® 2. Hold the handle with one hand (Figure 16, pos 1). 3.

  • Page 24: At The Job Site

    Never push down the scrub deck with your foot. ATTENTION Unlike previous generations of i-mop, the i-mop XL will only power on when the scrub deck is lowered on the floor. When in the stored position, the i-mop XL will remain completely powered off to avoid unwanted battery discharge.
  • Page 25 Figure 18 4. Stand behind the i-mop XL. Select the desired cleaning mode by turning the control knob. ® (figure 18, pos 7. ) MODE 1: Brush + water/cleaning solution (Figure 18, pos 1). MODE 2: Brush only (Figure 18, pos 2). MODE 3: Brush + vacuum (Figure 18, pos 3).
  • Page 26 The i-balance system allows the i-mop to stand up and remain balanced in any position while operating the i-mop XL. Simply rest the i-mop in the position you like, and it will stay standing. The i-balance system also helps to support the weight of the machine using a tensioned spring.
  • Page 27 Figure 20B 12. After 9.5 minutes + 5 minutes the lights on the display A|B|C|D are off. Within this time setting you are still able to operate the machine if you switch on the machine. After 1.5 minutes more the machine will be completely shut off and you are not able to work with the machine anymore.

  • Page 28: Eco Mode

    6.2.3. ECO mode 1. The ECO mode will use 40% less cleaning solution. 2. Turn on the ECO mode by pushing the ECO button, after you have selected your cleaning mode. (Figure 21, pos 1). 3. Turn off ECO mode by pushing the ECO mode again.

  • Page 29: Turning Off The I-Mop ® Xl

    6.2.4. Turning off the i-mop ® 1. Use the i-mop XL main switch (Figure 22, pos 1) and choose MODE 3 Brush + Dry vacuum (Figure 22, pos 2). 2. Operate it about 15-20 feet / 2-4 meter farther to vacuum remaining cleaning solution up.

  • Page 30: Cleaning And Storage

    6.3. Cleaning and storage 6.3.1. Flushing the system Be sure to flush the tanks out completely to discard any remaining solution in the lines and valves: 1. Refill the solution tank with 2 to 4 cups / 0.5 to 1 liter of clean water. 2.

  • Page 31: Cleaning The Filter And Floatshutoff

    1. Pull the top of the recovery tank outwards (Figure 25, pos 1). 2. Lift the recovery tank up and move it away from the body of the i-mop XL (Figure 25 pos 2) 3. Grab the support frame of the ball float shutoff assembly (Figure 26, pos 1) between your index finger and your thumb and pull it outwards.
  • Page 32 Figure 27 Figure 28 Assembling the ball float shutoff. 8. Place the floating ball in the float ball housing (Figure 29, pos 1). 9. Press the float ball housing (Figure 29, pos 4) into the rubber housing (Figure 29, pos 3). Make sure that the 4 nocks of the float ball housing fit into the holes in the rubber ring (Figure 29, pos 5).

  • Page 33: Removing The Battery

    14. Put the bottom of the recovery tank (Figure 31, pos 1 and pos 3) on the front of the i- mop® XL 15. Push the top of the tank into place until you hear a "click" sound, the magnet (Figure 31, pos 2) will lock the recovery tank into place.

  • Page 34: Checking The Brushes And Squeegee

    6.3.5. Checking the brushes and squeegee 1. Check to see if both brushes are clean and intact, see section 7.1 for removal instructions. • Clean them under fresh water or replace them if necessary. • Replace brushes if the yellow wear indicator is the same height as other bristles. 2.

  • Page 35: Maintenance

    7. Maintenance CAUTION Remove the battery before executing any maintenance task. CAUTION Always keep the body of the i-mop® XL in an upright position when replacing the brushes or the squeegee. 7.1. Brush replacement Figure 34 The brushes are attached to the scrub deck with a bayonet fitting. 1.

  • Page 36: Squeegee Replacement

    7.2. Squeegee blade replacement The squeegee blades come in pairs and wear out over time. When you notice the floor is no longer being dried properly, replace the squeegee blades. 7.2.1 Detaching the squeegee 1. Put the i-mop XL in store position, see ®...

  • Page 37: Attaching The Squeegee

    5. Now you can carefully pull the vacuum hose from the top of the machine. 6. Guide the new vacuum hose via the opening to the hose connector located at the i-mop XL handle. 7. Connect the top to the hose connector by twisting it clockwise 1/4 turn until they have lined up.

  • Page 38: Cleaning The Particle Filter

    7.4. Cleaning the particle filter 1. Locate the loader assembly top cover (figure 37, part 1) under the solution tank. 2. Remove the valve, (Figure 37, part 3) by turning it counter-clockwise. 3. Remove the particle filter (Figure 37, part 2) and run it under the warm water to clean it out.

  • Page 39: Recommended Additional Cleaning

    7.5. Recommended additional cleaning Clean the exterior of the i-mop XL weekly with a non-abrasive, non-solvent cleaner or a ® clean, damp cloth. To clean the scrub deck, remove the brushes. 7.6. Recommended service time Service must be done by one of our service partners. The first service is recommended after 200 hours.

  • Page 40: Troubleshooting

    8. Troubleshooting Problem Cause Solution No power No battery Insert battery Empty battery Charge battery Battery incorrectly placed Remove and reinstall battery Insufficient/no water flow Wrong program Check the operating mode on the control panel Eco mode on Check the ECO mode light on the control panel Empty tank Fill the tank...

  • Page 41: Decommissioning And Disposal

    9. Decommissioning and disposal ATTENTION It is the responsibility of the i-mop XL owner to dispose of the product ® responsibly. After decommissioning, the i-mop XL still contains valuable resources and needs to be ® disposed of according to your local laws and regulations regarding recycling of electrical equipment.

  • Page 42: Partslist

    10. Parts...
  • Page 43 Tennant Company 10400 Clean Street, Eden Prairie, MN 55344-2650 Telephone: (800) 553-8033 Internet: www.tennantco.com Model: i-mop ®...
