1.1. REPEATER FUNCTION

In each of the previous modes it is possible to activate the repeater function. When a Z-LINK2-LO works as a
repeater, the received radio signal is also retransmitted in order to increase the signal range.
1.2. MAXIMUM NUMBER OF Z-LINK2-LOS
There is no maximum number of Z-LINK2-LOs that can be used in a network, but Seneca recommends not
installing more than 30 Z-LINK2-LOs in a single network.
For more complex networks it is possible to use two or more parallel networks by changing the network
key.
2. Z-LINK2-LO BRIDGE MODE
Z-LINK2-LO can be used to connect two or more Modbus RTU buses wirelessly.
Examples of point-to-multipoint connections are shown in the following figures:

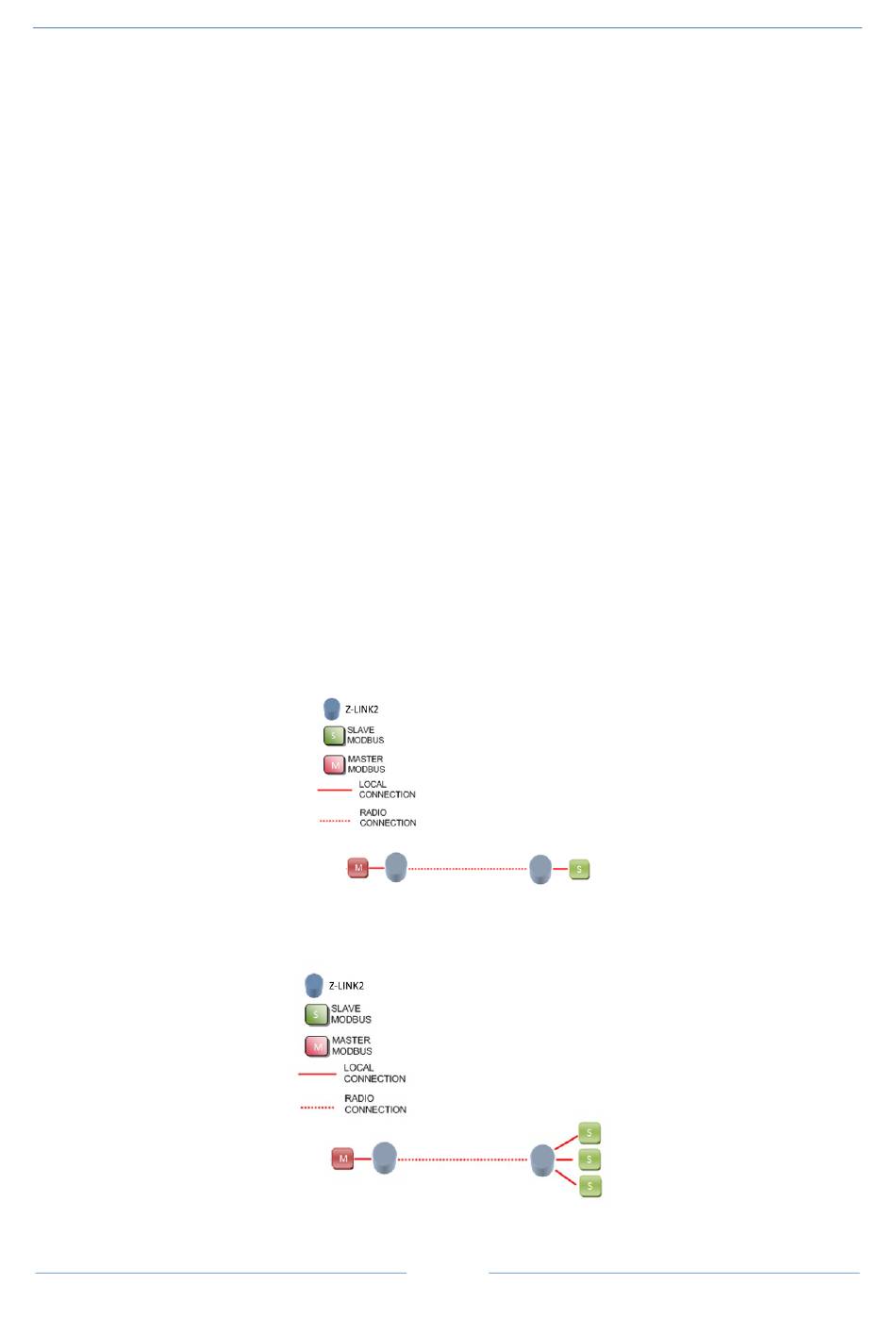

The simplest is the point-to-point connection: 1 Modbus master connected to 1 remote Modbus slave:
More complex, it is possible to connect 1 Modbus master with multiple Modbus slaves:
