SETTING Z-LINK2-LO AS "BRIDGE" MODE
To configure the device, use the Easy Setup software which can be downloaded from the Seneca website in
the Z-LINK2-LO section.
ATTENTION!
Before starting any configuration operation it is necessary to TURN OFF the Master Radio device
For programming you need to:
1) Turn off the Modbus master

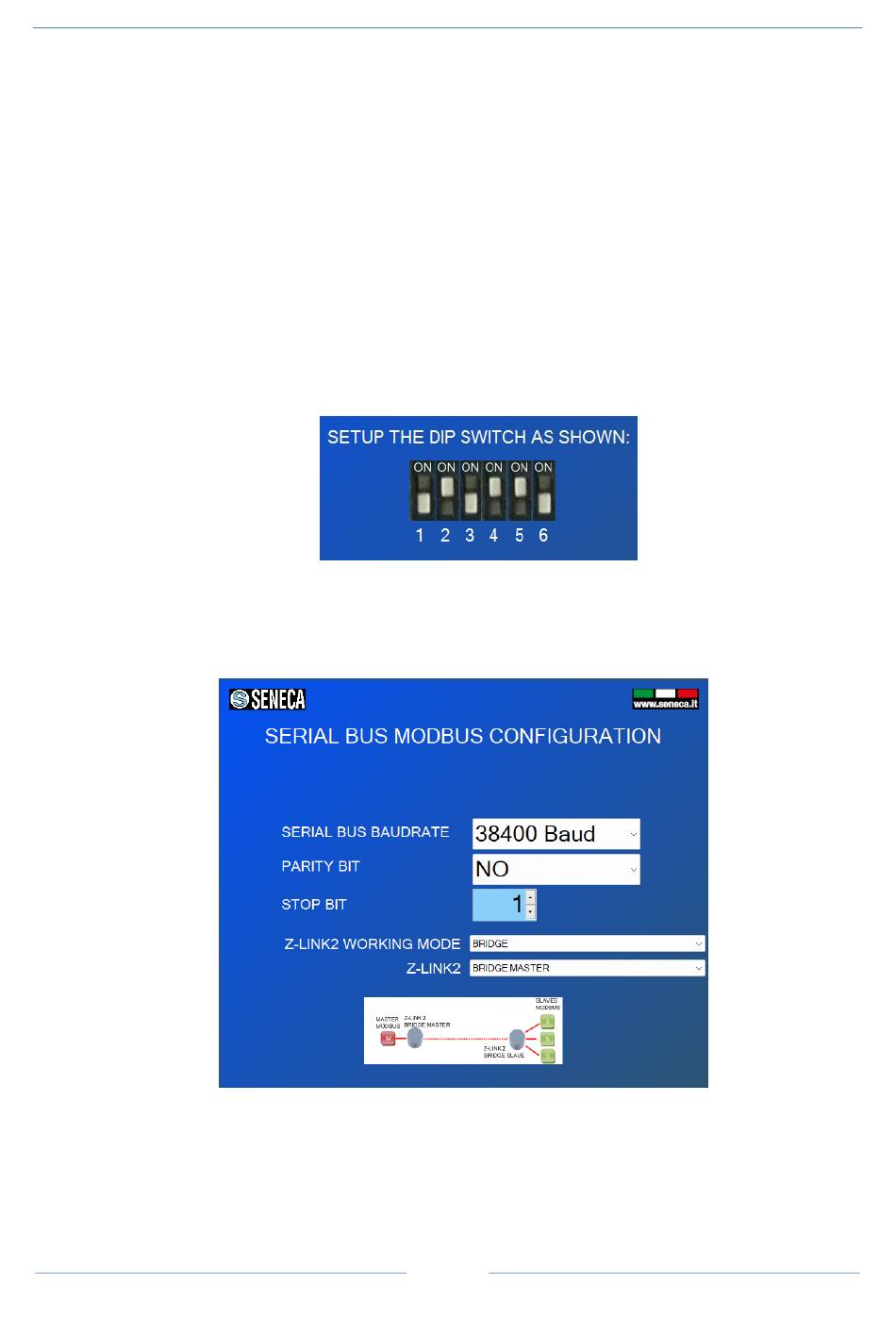

2) Set the dip switches on Z-LINK2-LO to programming mode and power up the device:
3) connect the USB cable to the PC
The Z-LINK2-LO connected to the Master is called "Bridge Master", while the other Z-LINK2-LOs
(connected to the slaves) are called "Bridge Slaves".
ATTENTION!
