Page 1: Table Of Contents
AVe rMe dia ® Technologies , Inc. P roduct Guide EA713MN Product Guide Table of Contents Scope & Product Outline Features Hardware Software Firmware ID Specifications Reliability... -
Page 2: Scope & Product Outline

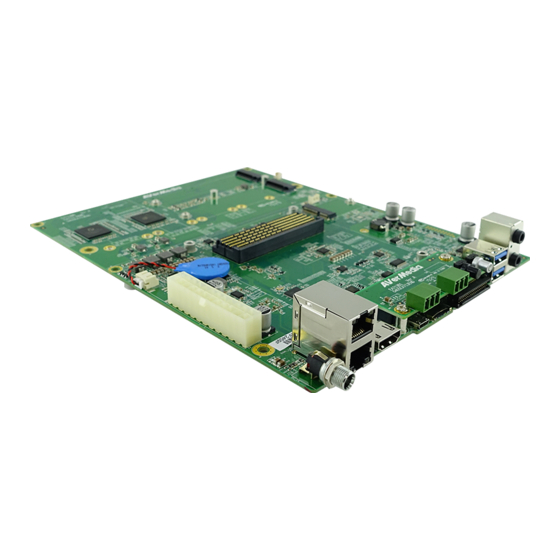

EA713MN and current PCB revision is A. It can operate w ith N VIDIA Xavier m od u le to bu ild u p a high p erformance embed d ed system . EA713MN is fully compliance w ith RoH S. -
Page 3: Hardware
AVe rMe dia ® Technologies , Inc. P roduct Guide UI & In d ic a to rs Power & Recovery Buttons LEDs: Power On/Off Indication De b u g /S e ria l Serial Port Signals (UART, 1x4 header) Mis c e lla n e o u s SOM Fan Connector: 12V, PWM &... - Page 4 AVe rMe dia ® Technologies , Inc. P roduct Guide Table 2: Location s D escrip tion s of Com p on en ts SOCKET_699PIN _for N VIDIA Jetson Xavier System-on-Mod ule 3Port-12Lane PCI Express Gen 2 Sw itch 3Port-12Lane PCI Express Gen 2 Sw itch 6-Port/ 8-Lane PCI Express Gen 2 Sw itch Intel Ethernet Controller Integrated 10/ 100/ 1000 Mbps Energy Efficient Ethernet Transceiver...
- Page 5 AVe rMe dia ® Technologies , Inc. P roduct Guide Block D iagram Figure1. Block Diagram.
- Page 6 AVe rMe dia ® Technologies , Inc. P roduct Guide Board D im en sion s Table 3: Form Factor Customization PCB Size 170 m m x 220mm Th ick n ess 1.6 m m I/O Con n ector Table 4: (Please refer to m echanical d raw ing for more d etail) DC jack x1 OD:5.5/ 2.5 w ith lock USB 2.0 Micro B (For Install JetPack) Micro SD card slot x1...
- Page 7 AVe rMe dia ® Technologies , Inc. P roduct Guide FAN 1*2pin 1.25mm pitch w afer for M.2 d evice (MOLEX 53047-0210) SO M Fan con n ector (J2) Pin D escrip tion s Wafer type : J oint Tech_A1250WV-04PNLNT1N00B Pin# Signal Name Usage/Descr iption...
- Page 8 AVe rMe dia ® Technologies , Inc. P roduct Guide G PIO Exp an d (J14) Pin D escrip tion s The carrier board inclu d es a 40-pin (2x20, 1.27m m p itch) Expansion H ead er (J14). The connector u sed on the carrier board is a CH AMPWAY CB25-G 4024H 010-03. The GPIO Level Shift voltage is fixed on 3.3V.
- Page 9 AVe rMe dia ® Technologies , Inc. P roduct Guide I2C_GP2_DAT_3V3 2SK3019 I2C_GP2_DATA General I2C # 2 Data (3.3V) Bid ir/ OD 3.3mA Grou nd Grou nd CAN0_RX Xavier CAN 0_DIN CAN # 0 Data In (3.3V) Inp u t 3.3mA GPIO9_CAN1_GPIO0 Xavier...
- Page 10 AVe rMe dia ® Technologies , Inc. P roduct Guide 3.8 EM I Sp ecification s EMI/ EMS test sp ecification are listed in Table 7 Table 7： Criteria Sp ecification Referen ce EM I EN 55032 stand ard EM S EN 55024 stand ard 3.9 Bu tton s an d In d icators Bu tton s (Sw itch es)
-
Page 11: Software
AVe rMe dia ® Technologies , Inc. P roduct Guide G igab it Eth ernet (LAN Port LED s) Top(B) Activity LED (left) Lin k /Sp eed LED (righ t) Statu s D escrip tion State D escrip tion Green Blinking Data transmission or Yellow 1000M link Speed... -
Page 12: Id Specifications
AVe rMe dia ® Technologies , Inc. P roduct Guide 6. ID Sp ecification s... -
Page 13: Reliability
AVe rMe dia ® Technologies , Inc. P roduct Guide Reliab ility Table 8: Cr iter ia Specification Refer ence Operating:-10 C/48 hrs Low Temperature IEC 68-2-1 Storage: -20 C/24 hrs Operating: 70 C/48 hrs High Temperature IEC 68-2-2 Storage: 85 C /24 hrs Operating: 70C, 95%RH/48 hrs High Humidity IEC 68-2-30...
