Summary of Contents for arcelik 270560EICON

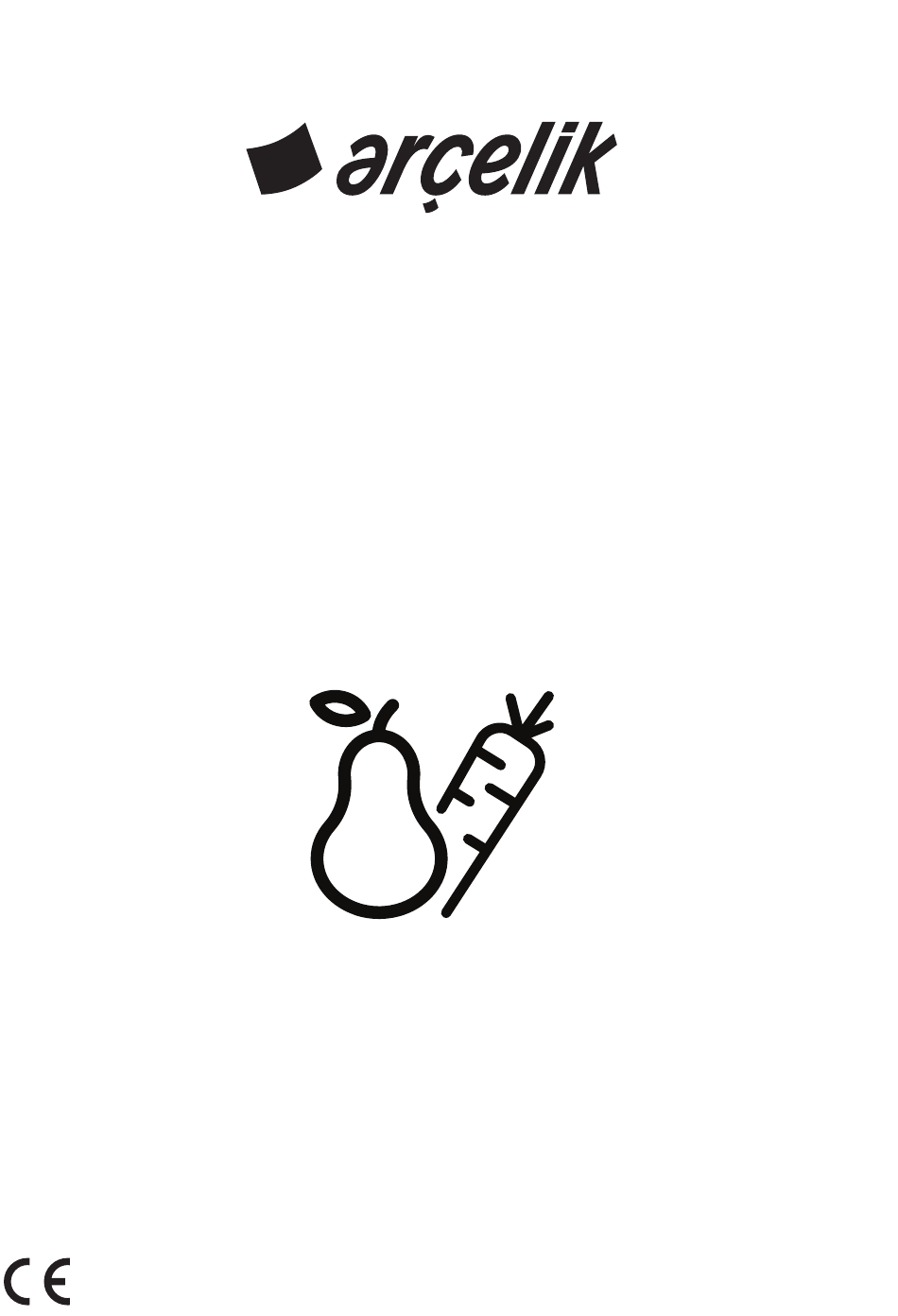

  • Page 1 270560 EICON - 270560 EGC - 270560EDI - 270561EI 270561 EGC - 270514EGC...
  • Page 2 Dear Customer, Please read this user manual before using the product. Thank you for preferring this product. We hope that you get the best results from your product which has been manufactured with high quality and state-of- the-art technology.. Therefore, please read this entire user manual and all other accompanying documents before using the product.

  • Page 3: Table Of Contents

    1 Safety Instructions 6.9. Moisture controlled vegetable bin ..21 6.10. Deodoriser Module ....21 6.11. Automatic ice machine ....22 1.1 Intended Use.

  • Page 4: Safety Instructions

    Safety Instructions • This section contains safety instructions 1.2 Safety for children, that will help get protected against risks vulnerable persons and pets of personal injury or property damage. • This product can be used by children 8 • Our company shall not be responsible years of age and older as long as they for damages that may arise when these are supervised or trained about the safe...

  • Page 5: Electrical Safety

    Safety Instructions 1.3 Electrical safety transportation. If the piping is damaged, do not operate the product • The product must be unplugged during and call the authorised service agent. installation, maintenance, cleaning, repairing and moving procedures. 1.5 Installation safety • If the power cable is damaged, it •...

  • Page 6: Operational Safety

    Safety Instructions location is too small, flammable in contact with water. refrigerant and air mixture will • Route the power cable and hoses (if accumulate in cases of refrigerant any) of the product in a way that they leakage in cooling system. The required do not cause risk of tripping over.
  • Page 7 Safety Instructions Pay attention not to squeeze your UV LED lamp directly for a long time. fingers between the door and the Ultraviolet light may cause eye strain. refrigerator. Be careful when opening • Do not overload the product. Objects and closing the door particularly if in the refrigerator may fall down when there are children around.

  • Page 8: Maintenance And Cleaning Safety

    Safety Instructions • If the product is damaged and you see • Only use cleaning and maintenance refrigerant leak, please stay away from products inside the product that are the refrigerant. Refrigerant may cause not harmful for food. frostbite in case of skin contact. •...
  • Page 9 Conformity Decleration for CE: Arçelik A.Ş. hereby declares that this appliance complies with Directive 2014/53/EU. The complete text of the EU declaration of conformity is available in the following internet address: Products, From: arcelik.com.tr Refrigerator / User Guide 9/39EN...

  • Page 10: Environment Instructions

    Environment instructions 2.1 Compliance with the WEEE Directive 2.3 Package information and Disposing of the Waste Product: Packaging materials of the product This product complies with EU WEEE are manufactured from recyclable Directive (2012/19/EU). This product bears a materials in accordance with our classification symbol for waste electrical and National Environment Regulations.

  • Page 11: Your Refrigerator

    Your Refrigerator 1. Cooler compartment door shelf 10. Ice cube tray & Ice bank 2. Water dispenser filling tank 11. Vegetable bin 3. Egg section 12. Zero degree compartment 4. Water dispenser reservoir 13. Interior light 5. Bottle shelf 14. Cooler compartment glass shelf 6.

  • Page 12: Installation

    Installation • If the product will be placed in an Read the “Safety Instructions” section alcove, remember to leave at least 5 first! cm clearance between the product and 4.1. Right place for installation the ceiling, rear wall and the side walls. Contact the Authorized Service for the Check if the rear wall clearance protection product's installation.

  • Page 13: Attaching The Plastic Wedges

    4 Installation 4.4 Attaching the plastic wedges 4.3. Power connection Use the plastic wedges in the provided with WARNING: Do not use extension or the product to provide sufficient space for air multi sockets in power connection. circulation between the product and the wall. WARNING: Damaged power cable 1.

  • Page 14: Preparation

    Preparation are in contact with the sensor, energy Read the “Safety Instructions” section consumption of the appliance might first! increase. 5.1. What to do for energy saving Connecting the product to electronic energy-saving systems is harmful, as it may damage the product. •...
  • Page 15 5 Preparation • Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.

  • Page 16: Operating The Product

    Operating the product Read the “Safety Instructions” section first! 1. Power Failure / High temperature / Error status indicator 2. Energy saving function (display off) indicator 3. Quick fridge key 4. Vacation function key 5. Fridge compartment temperature setting key 6.
  • Page 17 Using the product 1.Power Failure / High temperature / the quick fridge function is activated. Error status indicator To cancel this function, press the Quick This indicator ( ) illuminates in case of fridge button again. Quick fridge indicator power failure, high temperature and error will be off and the refrigerator will be warnings.
  • Page 18 Using the product 9. Quick freeze button this button. Press button no. (9) for quick freeze; After turning the power off and on, it will the quick freeze indicator ( ) will be automatically remember and establish a activated. connection to your network. When the quick freeze function is on, the The wireless network icon will flash briefly (at 0.2 sec intervals) until the connection...

  • Page 19: Ice Bucket

    Using the product 6.1. Ice bucket 6.3. Fan Fan was designed to distribute circu- *optional late the cold air inside your refrigerator Take the ice bucket from the freezer homogeneously. Operating time of the fan compartment. might vary depending the features of your Fill the ice bucket with water.

  • Page 20: Using The Second Crisper Of The Product

    Using the product 6.5. Using the second Figure 3. crisper of the product; With the door is open 90°, pull the second crisper up to the first stopper as shown in Figure 3. In the case that the drawer is more open, first of all, open the door by at least 135°...

  • Page 21: Zero Degree Compartment

    Using the product 6.6. Zero degree compartment 6.8. Moving door rack *optional *optional Use this compartment to keep Moving door rack can be fixed in 3 delicatessen at lower temperatures different positions. or meat products for immediate In order to move the rack, push the consumption.

  • Page 22: Moisture Controlled Vegetable Bin

    Using the product 6.9. Moisture controlled 6.10. Deodoriser Module vegetable bin (OdourFresh +) *optional Thanks to this module positioned on the *optional ceiling of the fresh food compartment; With moisture control feature, moisture the cleaned air can re-enter the air rates of vegetables and fruits are kept circulation, while the air is actively under control and ensures a longer...

  • Page 23: Automatic Ice Machine

    Using the product 6.12 Icematic and ice 6.11. Automatic ice machine storage container *optional *optional Automatic ice machine enables you to easily make ice in your refrigerator. In Using the Icematic order to obtain ice from the ice machine, Fill the Icematic with water and place take out the water tank in the cooler it into its seat.

  • Page 24: Ice Bucket

    Using the product 6.13 Ice bucket *optional • Take the ice bucket from the freezer compartment. • Fill the ice bucket with water. • Place the ice bucket into the freezer compartment. • The ice will be ready after approximately two hours. Take the ice bucket from the freezer compartment and bend in sightly over the holder that you are going to serve.

  • Page 25: Using The Water Dispenser

    Using the product 6.14 Using the water dispenser plastic cup, pushing the lever with your hand will be easier. *optional 2. After filling the cup up to the level you It is normal for the first few want, release the lever. glasses of water taken from the dispenser to be warm.

  • Page 26: Filling The Water Dispenser's Tank

    Using the product Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow.

  • Page 27: Cleaning The Water Tank

    Using the product 6.16 Cleaning the water tank 1. Remove the water filling reservoir inside the door rack. 2. Remove the door rack by holding from both sides. 3. Grab the water tank from both sides and remove it with an angle of 45°C. 4.

  • Page 28: Freezing Fresh Food

    Using the product 6.19 Freezing fresh food Ice in the freezing • To preserve food quality, the compartment thaws automatically. food items placed in the freezer compartment must be frozen as • Mark each food pack by writing the quickly as possible, use the rapid date on the package before freezing.

  • Page 29: Deep Freezer Details

    Using the product 3. Make sure the food’s packaging is not Cooler Small and packed food damaged. compartment or beverages door shelves 6.21 Deep freezer details Vegetable bin Fruits and vegetables As per the IEC 62552 standards, the freezer must have the capacity to freeze Delicatessen (breakfast 4,5 kg of food items at -18°C or lower Fresh food...

  • Page 30: Blue Light/Vitaminzone

    Using the product 6.26.Blue light/VitaminZone *May not be available in all models For the blue light, Fruits and vegetables stored in the crispers that are illuminated with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus preserve their vitamin content.

  • Page 31: Care And Cleaning

    Care and Cleaning Service life of the product will extend • Only use slightly damp microfiber cloths and frequently encountered problems to clean the outer surface of the product. will decrease if the product is cleaned Sponges and other types of cleaning periodically.

  • Page 32: Stainless Steel Outer Surfaces

    Care and Cleaning For the coating to have long service life, alkali ATTENTION: or abrasive substances must not be used Do not use vinegar, rubbing during cleaning processes. alcohol or other alcohol- These glasses were subject to a tempering based cleaning agents on process to increase their impact and any of the inner surfaces.

  • Page 33: Troubleshooting

    Troubleshooting Please review this list before calling the The compressor is not operating. service. This will save you time and money. • Protective thermal of the compressor This list contains frequently encountered will blow out during sudden power problems that are not results of faulty failures or plug-out plug-ins as the workmanship or material use.
  • Page 34 Troubleshooting The fridge is running frequently or for a Freezer temperature is adequate but long time. the fridge temperature is very low. • Your new product may be bigger than • The fridge temperature is adjusted to the previous one. Larger refrigerators a very low value.
  • Page 35 Troubleshooting Vibration or noise. There is a bad odour inside the refrigerator. • The floor may not be stable or level. • No regular cleaning may have been >>>If the refrigerator shakes when performed. Clean the inside of the moved slightly, adjust the feed to refrigerator with a sponge, lukewarm balance it.
  • Page 36 Using the product Fan keeps running when the door is : If you cannot eliminate WARNING open. the problem although you follow the instructions in this section, The fan may keep running when the door of consult your dealer or the the freezer is open.
  • Page 37 Repair that will be carried out by end users can be performed within the following spare parts: Door Handles and Door Hinges, Door Joints and peripheral Trays, Baskets, Racks. (You may have access to current list of spare parts from https://www.arcelik.com.tr/destek as of 1 March 2021) Further, in order to ensure product safety and to prevent risk of severe injuries, repair has to be carried out according to instructions from user manual or https://www.arcelik.com.tr/...
