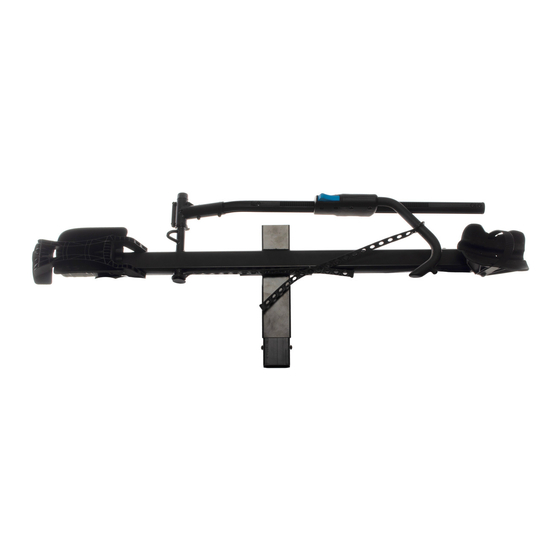

HighNoon FC Add-On
Guidelines
• Using the HighNoon Add-On reduces the max weight per bike to 45lbs (20kg) each
• Tire width 19mm road bike tires - 5.0" mountain bike tires
• Wheel Diameter: 20" - 29"
• Wheelbase: 33" - 52" (690mm - 1300mm)
• Remove Baby Seats, Panniers, U-Locks, or items that could detach from the bicycle before use
• No kick bikes, recumbents, mopeds, scooters, pennyfarthings, or tandems
• Only compatible with HighNoon 2" & HighNoon SOLO
• NOT COMPATIBLE WITH HIGHNOON 1.25" OR BOOTLEG

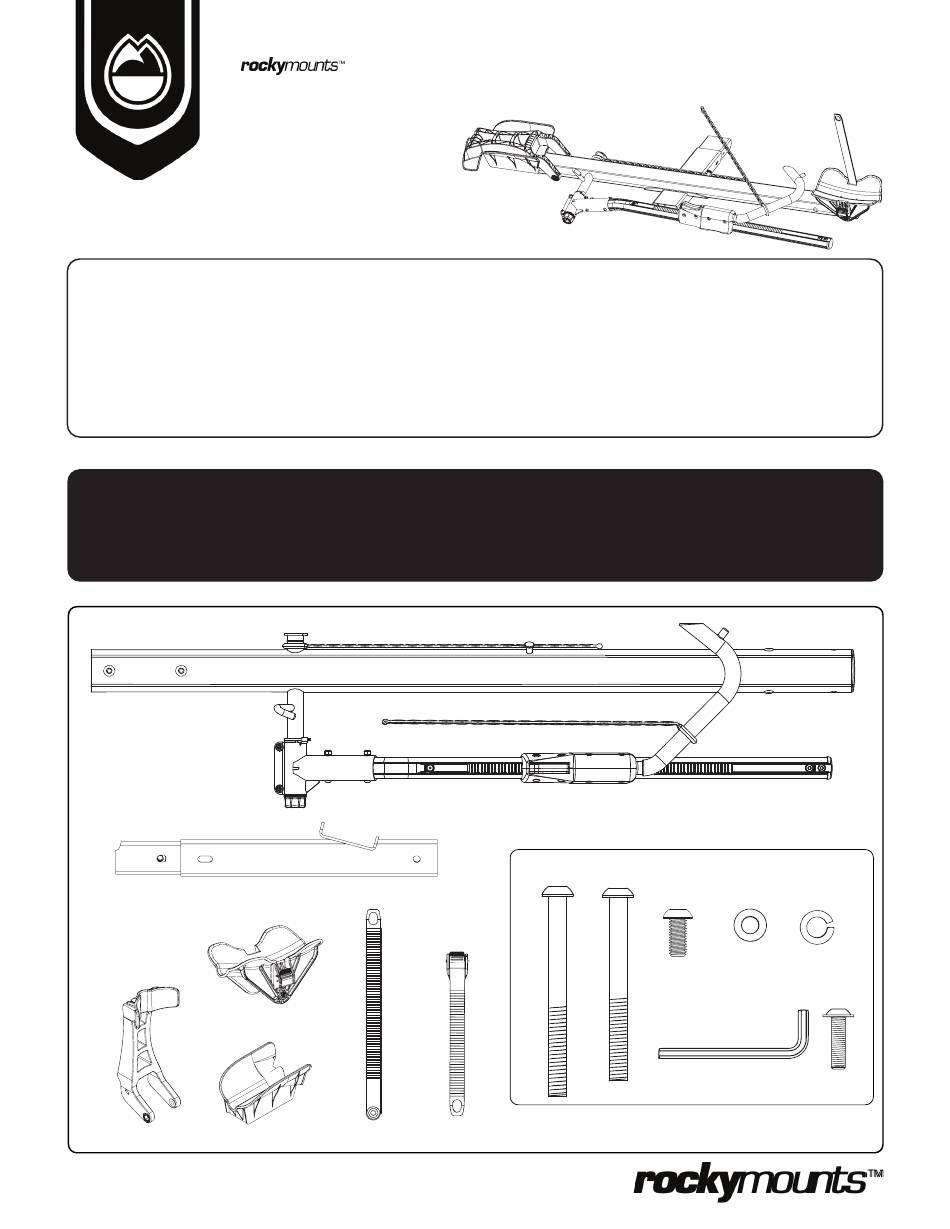

Parts Included
A: Wheel tray A
B: HighNoon Solo Spine
C: Back stop
D: Rear wheel cup
E: Front wheel cup
A (1x)
B (1x)
D (1x)
C (1x)
E (1x)
Read all warnings on last page before use.
Read all warnings on last page before use.
F: Wheel strap
G: Wheel strap extension
H: M8 x 90mm BHCS bolt
I: M8 x 85mm BHCS bolt
J: M8 x16mm BHCS bolt
F (1x)
G (1x)
K: M8 Flat washer
L: M8 Split washer
M: 5mm Allen wrench
N: M8 x 30mm flanged bolt
H (1x)
I (x1)
J (6x)
M (1x)
51336_REV_B
K (7x)
L (4x)
N (2x)
