rockymounts SplitRailLS Installation Instructions Manual

Guidelines
Max weight per bicycle: 60lbs (27kg) for 2 bike rack (120lbs (54kg) total). 40lbs with Add-Ons (160lbs
Max wieght per bicycle: 60lbs for 2 bike rack (120 total). 45lbs with add ons (180 total).
(73kg) total).
Wheel size: Compatible with 20-29in wheels.
Wheel size: Comptatible with 20-29" wheels.
Tire size: Fits up to 3.0in tires.
Tire Size: Fits up to 3.0" tires.
Max wheel base: 48in.
Max wheel base: 48" (122cm).
Remove front fenders, racks, panniers before use.
Remove front fenders, racks, and panniers before use.
No electric bikes, kick bikes, recumbents, mopeds, scooters, pennyfarthings, tandems.
No kick bikes, recumbents, mopeds, scooters, pennyfarthings, fat bikes, or tandems.
For 2in recievers only. Do not use with hitch extenders or adaptors. 2 bike limit for class one hitches.
2" SplitRailLS compatible with RockyMounts™ Single Bike Add-On (SKU 1150).

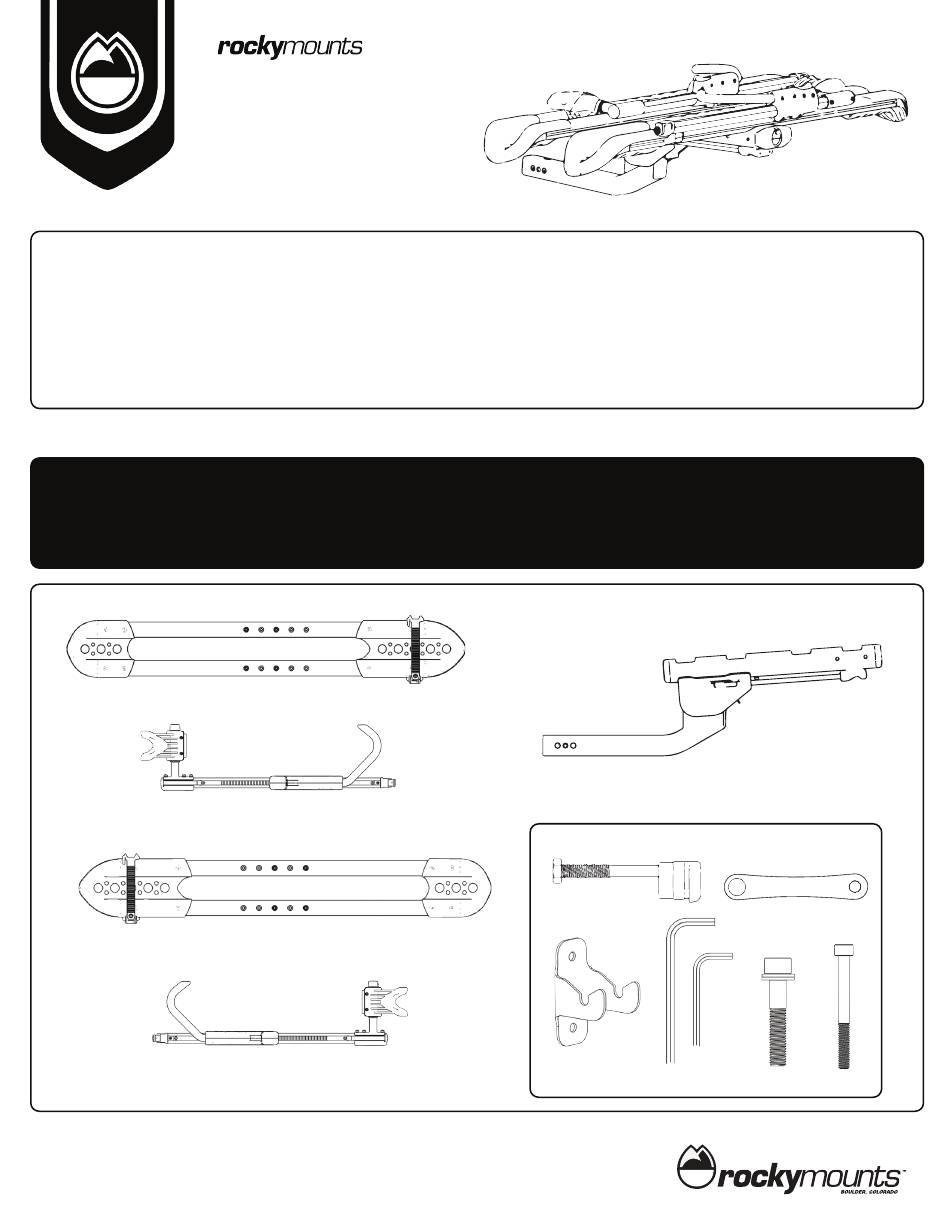

Parts Included
A: Wheel tray A
B: Load arm A
C: Wheel tray B
D: Load arm B
Read all warnings on last page before use.
SplitRail LS
E: Base: 2"
F: Hitch pin with lock pod
G: 19mm wrench
H: Garage storage hook (1x)
A (1x)
B (1x)
C (1x)
D (1x)
I: 6mm long handle hex wrench
J: 5mm hex wrench
K: Bolt M8 x 45mm with washers (8x)
L: Bolt M6 x 60mm (8x)
E (1x)
F (1x)
F (1x)
J (1x)
H (1x)
I (1x)
G (1x)
K (8x) L (8x)
