rockymounts Locking Clutch Manual

Guidelines/Restrictions:

- This carrier is intended for bolt down applications.
- Bicycles must be equipped with quick release front wheel.
- Bicycle weight limit is 35lbs with this carrier.
- Forks equipped with carbon fiber dropouts or forks without safety tabs are not
covered under this warranty.

Installation: : : :

Installation
Installation Installation

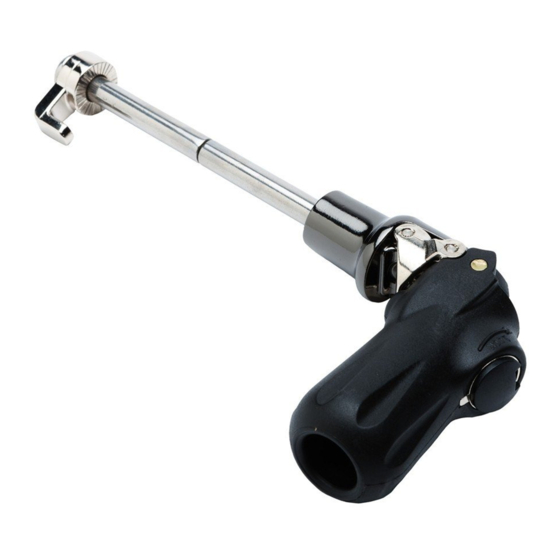

1) Remove the Quick Release Skewer from the main body by holding one end, and
unscrewing the handle.
2) Using the body as a template, position and mark mounting holes. We recommend ¼
or 6mm bolts.
3) Install bolts and re-install the Quick Release Skewer.
Step 1:
Remove front wheel from bicycle. Open the handle of the quick release so the black
handle is straight and the fixed end points down. Load the fork onto the quick release
so both fork ends are resting straight on the quick release. Close the handle by flipping
it 90 degrees to the closed position. If it is too loose, open the handle and turn it like a
screwdriver (clockwise to tighten, counter clockwise to loosen), and close the handle
again. Re-adjust until a firm and positive snap is felt when closed.
The Quick Release Skewer is not an on/off switch. You must close the handle with
enough tension to hold the bicycle.
Rock the bicycle side to side to ensure proper mounting. The fork should be properly
seated and not move. If unsure, please consult your dealer or RockyMounts. Failure to
comply could result in the bicycle detaching with subsequent damage to the bicycle,
vehicle, or other motorist.
Locking Clutch Manual

To Load a Bicycle
