Guidelines
Max weight per bicycle: 40lbs (18kg) for 2 bike rack (80lbs (36kg) total).
Wheel size: Comptatible with 20-29" wheels.
Tire Size: Fits up to 3.0" tires.
Compatible with bicycles' wheelbases from 34" to 48"
Fits both 1.25" and 2" hitches with adaptor sleeve & anti wobble bolt
Remove front fenders, racks, and panniers before use.
No kick bikes, recumbents, mopeds, scooters, pennyfarthings, fat bikes, or tandems.

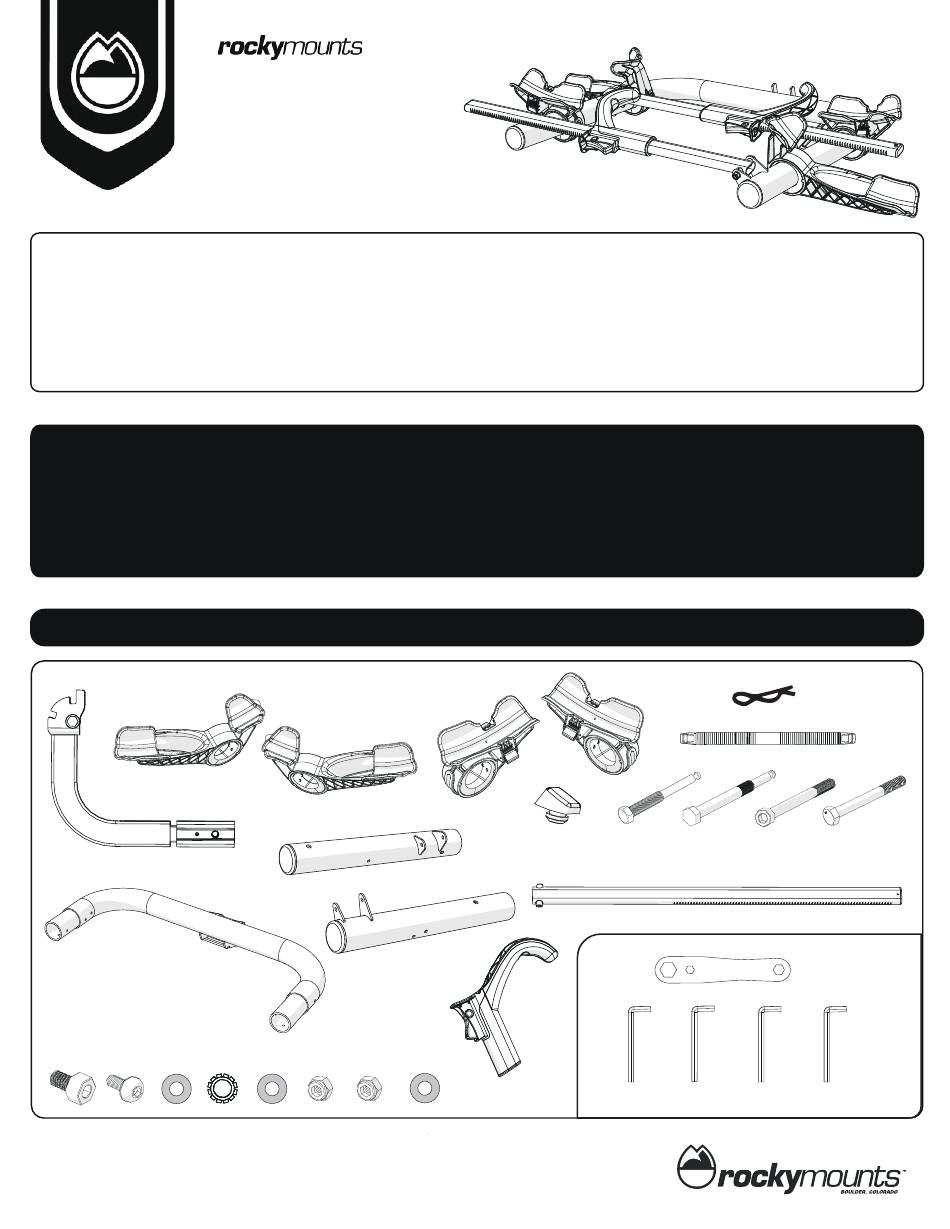

Parts Included
A: Base
B: Frame
C: Inner Front Wheel Cup
D: Outer Front Wheel Cup
E: Inner Rear Wheel Cup
F: Outer Rear Wheel Cup
G: Left Frame Arm
Tools Included
AA: Box Wrench
BB: M3 Hex Wrench
C (1x) Red
B (1x)
Q (2x)
R (4x)
S (3x)
T (1x)
Read all warnings on last page before use.
WestSlope
H: Right Frame Arm
I: Ratchet Arm
J: Hook
K: Wheel Strap
L: Rubber Bumper
M: Hitch Bolt
N: Pivot Bolt
D (1x) Blue
G (1x)
A (1x)
H (1x)
U (4x) V (2x) W (1x)
O: M6x85 Allen Bolt
P: M8x70 Hex Bolt
Q: M4x6 Allen Bolt
R: M6x15 Torx Bolt
S: M12 Flat Washer
T: M12 Lock Washer
U: M8 Flat Washer
CC: M4 Hex Wrench
E (1x) Yellow
L (2x)
I (2x)
J (2x)
X (4x)
V: M8 Nut
W: 1/2" Nut
X: 6mm Flat Washer
Y: Cotter Pin
DD: M5 Hex Wrench
F (1x) Green
M (1x)
N (1x)
O (6x)
CC (1x)
BB (1x)
EE: Torx Wrench
Y (1x)
K (2x)
P (2x)
AA (2x)
DD (1x)
EE (1x)

Advertisement

loading
Need help?

Need help?

Do you have a question about the WestSlope and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for rockymounts WestSlope

Summary of Contents for rockymounts WestSlope

  • Page 1 WestSlope Guidelines Max weight per bicycle: 40lbs (18kg) for 2 bike rack (80lbs (36kg) total). Wheel size: Comptatible with 20-29” wheels. Tire Size: Fits up to 3.0” tires. Compatible with bicycles’ wheelbases from 34” to 48” Fits both 1.25” and 2” hitches with adaptor sleeve & anti wobble bolt Remove front fenders, racks, and panniers before use.
  • Page 2 Assembly Instructions Install Hitch Bolt Remove 2" Hitch Adapter (for 1.25" Hitch Receivers Only) Insert base (A) into vehicle hitch receiver. Install hitch Remove M6 x 8 Allen bolt from 2" hitch adapter using bolt (M) with M12 flat washer (S) and M12 lock M4 hex wrench (CC).
  • Page 3 Assembly Instructions Install Rubber Bumpers Install Ratchet Arms Press rubber bumpers (L) into holes into frame arms Align ratchet arms (I) with tabs on frame arms (G) and (G and H). H) with the serrated ratchet features toward the rear of the rack.

  • Page 4: Rear Wheels

    Loading Bikes Open Load Arm Place Bikes on Rack Rotate load arm 180 degrees from stowed position Load the smaller and/or heavier bike in position and fully extend hook. nearest to the vehicle. Front wheel should be secure against back stop. Secure Front and WARNING.

  • Page 5: Rack Positions

    Load arms should be stowed flat when rack is not in use. Handle should be fully seated before each use. If a hitch extension is needed, only anti-wobble hitch extensions by RockyMounts can be used.
