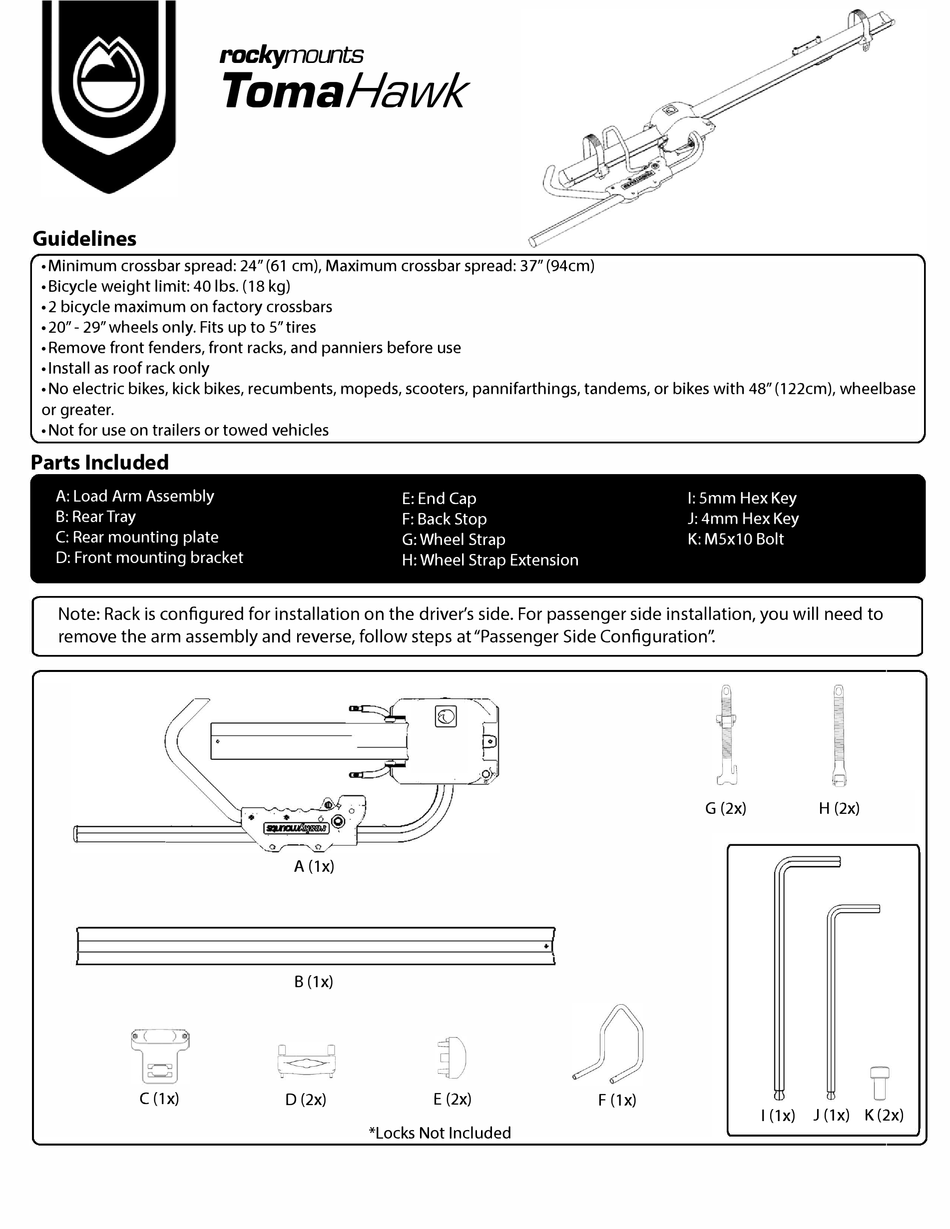

Guidelines
·Minimum crossbar spread: 24" (61 cm), Maximum crossbar spread:
·Bicycle weight limit: 40 lbs. (18 kg)
2 bicycle maximum on factory crossbars
•
20" - 29" wheels only. Fits up to 5" tires
•
·Remove front fenders, front racks, and panniers before use
·Install as roof rack only
·No electric bikes, kick bikes, recumbents, mopeds, scooters, pannifarthings, tandems, or bikes with 48" (122cm), wheelbase
or greater.
·Not for use on trailers or towed vehicles
Parts Included

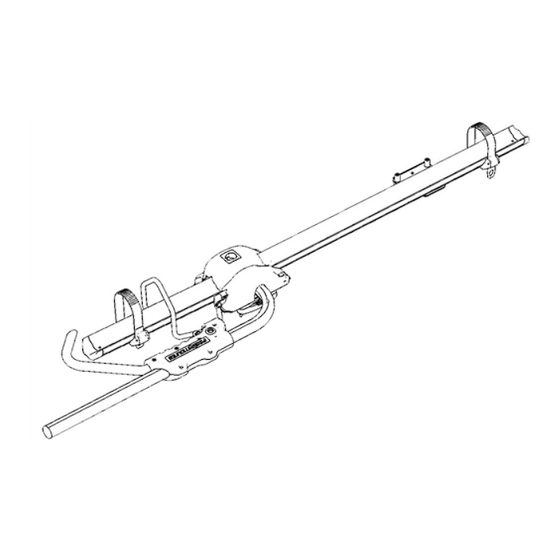

A: Load Arm Assembly
B: Rear Tray
C: Rear mounting plate
D:
Front mounting bracket
Note: Rack is configured for installation on the driver's side. For passenger side installation, you will need to
remove the arm assembly and reverse, follow steps at"Passenger Side Configuration':
C (1 x)
rackymounts
Tama Hawk
A (1x)
B (1 x)
D
(2x)
*Locks Not Included
37"
(94cm)
E: End Cap
F: Back Stop
G:
Wheel Strap
H: Wheel Strap Extension
[§]
. .
E (2x)
I: Smm Hex Key
J:
4mm Hex Key
K: M5x10 Bolt
G
(2x)
F (1 x)
I ( 1 x)
H (2x)
J
K (2x)
( 1 x)
Advertisement
Related Manuals for rockymounts TomaHawk
Summary of Contents for rockymounts TomaHawk
- Page 1 rackymounts Tama Hawk Guidelines 37" ·Minimum crossbar spread: 24" (61 cm), Maximum crossbar spread: (94cm) ·Bicycle weight limit: 40 lbs. (18 kg) 2 bicycle maximum on factory crossbars • 20" - 29" wheels only. Fits up to 5" tires • ·Remove front fenders, front racks, and panniers before use ·Install as roof rack only ·No electric bikes, kick bikes, recumbents, mopeds, scooters, pannifarthings, tandems, or bikes with 48"...
- Page 2 Assembly Instructions Open Mounting Brackets Install Rear Tray Push on two tabs and remove cover. Slide rear tray Remove four M6x65 bolts on front mounting brackets. onto load arm assembly. Tighten four M6 bolts Slide rear mounting plate into T-slot with brackets facing towards vehicle.
- Page 3 Loading Bikes Place Bike an Rack Secure Front Wheel Load bike on wheel tray. FRONT WHEEL SHOULD BE Rotate load arm over front wheel and tighten hook SECURE AGAINST BACK STOP with MINIMUM GAP between fork Tighten Wheel Straps Fat Bike Installation For both wheels: feed wheel strap through wheel and To mount fat bikes, add an extension to each wheel into buckle.
- Page 4 Do not use bicycle covers, bicycle bras, or bikes equipped with rear disc wheel. Not intended for off road use. Not intended for use on trailers or towed vehicles. Locks are only deterrents to thieves, RockyMounts, Inc. cannot be held liable for stolen bicycles. Remove rack before entering a car wash.
