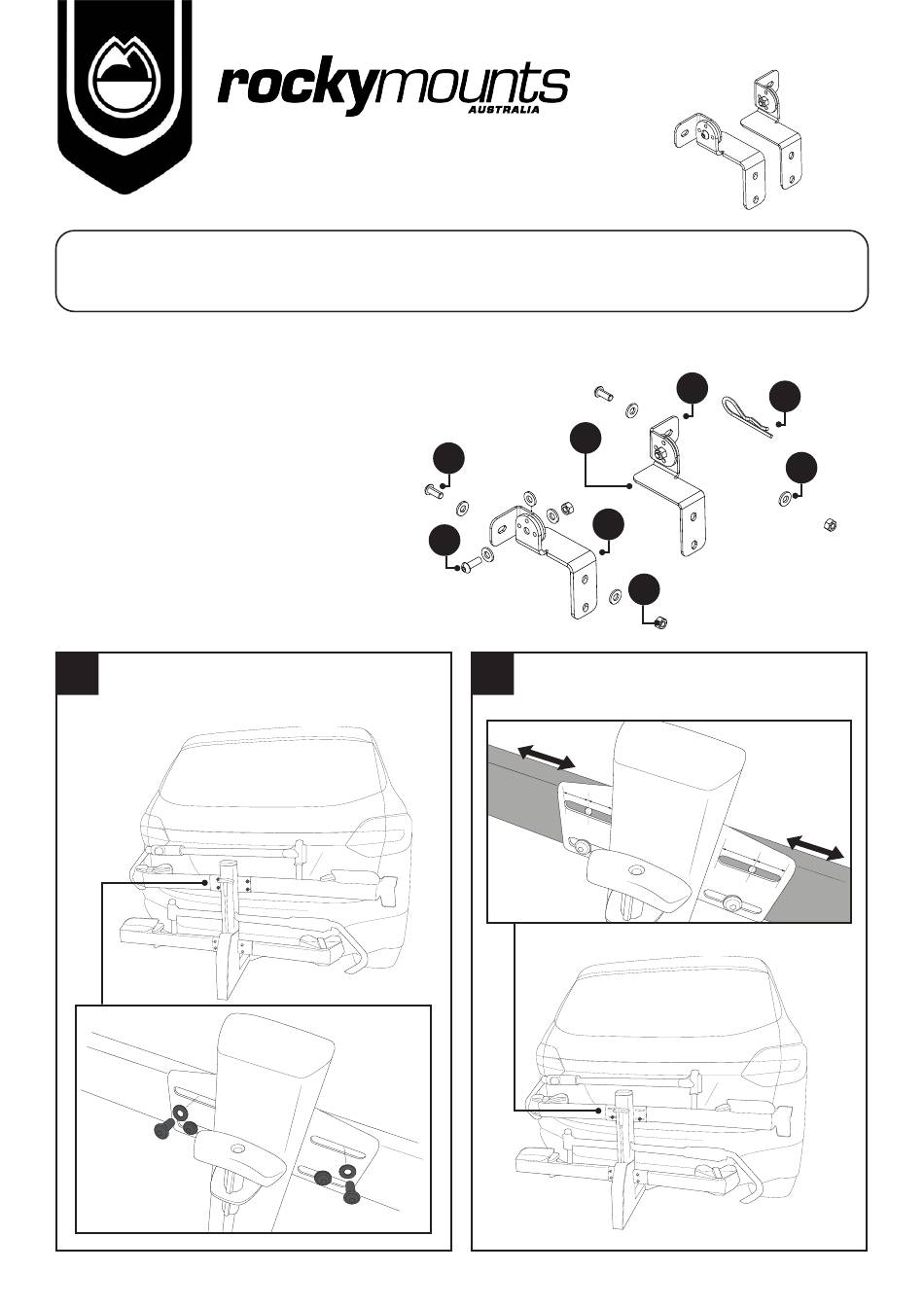

Plate Direct Mount Kit.
Guidelines
•
Ensure hardware is secure before use.
•
Periodically check hardware during use.
•
Only use kit as intended.
Parts Included
Features:

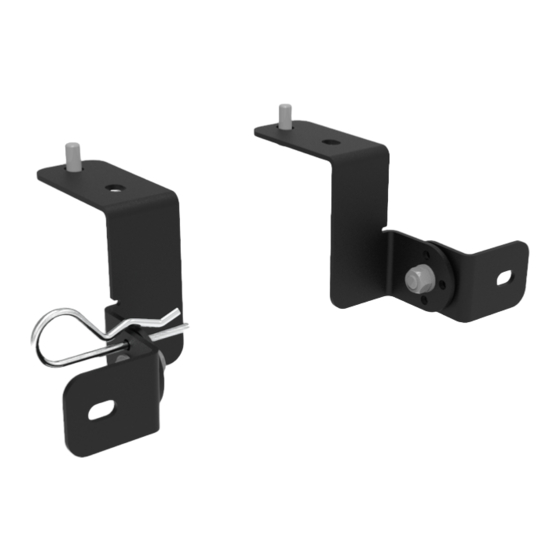

1- Plate bracket A (right).
2 - Plate bracket B (left).
3 - Plate bracket C (x2)
4 - R clip (x1)
5 - M8 flat washer (x12)
6 - M8 nyloc nut (x4)
7 - M8 x 20mm button head screw (x6)
8 - M8 spring washer (x2)
NOTE: For use with auxiliary plates only.
1
A - Attach the Bike carrier to car.
B - Loosen all 4 bolts on outside wheel tray. Then
remove the top two.
A
B
•
Check vehicle suitability with LED auxillary lights.
NOTE: Some vehicles may require resistors. Direct Mount Kit is available
for Rockymounts bike carriers.
7
8
2
Position wheel tray so its threads are centred
withing the corresponding slots.
3
1
2
6
=
=
=
4
5
=
pg. 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for rockymounts RM031
Summary of Contents for rockymounts RM031
- Page 1 Periodically check hardware during use. NOTE: Some vehicles may require resistors. Direct Mount Kit is available • Only use kit as intended. for Rockymounts bike carriers. Parts Included Features: 1- Plate bracket A (right). 2 - Plate bracket B (left).
- Page 2 Using M8x20mm button head screws with Fit bracket C with 3x M8 flat washers, an M8 x spring and flat washers, fit bracket A and B. 20mm button head screw and a nyloc nut. Position LED light board over brackets and fit Using the M5 screws and flange nuts provided, with M8x20mm dome head screws, 2x flat attach the license plate.
- Page 3 Lock the license plate in position using the r-clip Wrap the excess cable (from LED light board), provided. around the carrier spine. Plug the 7 pin socket into the connection at the rear of the vehicle. Note, If using the bike carrier in a lowered position, always be sure to reposition the license plate holder as shown. Re-fix plate in place with the r-clip.
