rockymounts TieRod Installation Manual

Guidelines/Restrictions:

- This carrier is intended for elliptical shaped factory crossbars.
- Bicycles must be equipped with a quick release front wheel.
- Minimum crossbar spread is 16 inches, maximum 40 inches.
- Do not exceed the load capacity of your vehicle's roof rack, 2 bike maximum for factory bars.
- Bicycle weight limit is 35lbs with this carrier.
- Use of forks equipped with carbon fiber dropouts or forks without safety tabs will void the warranty.

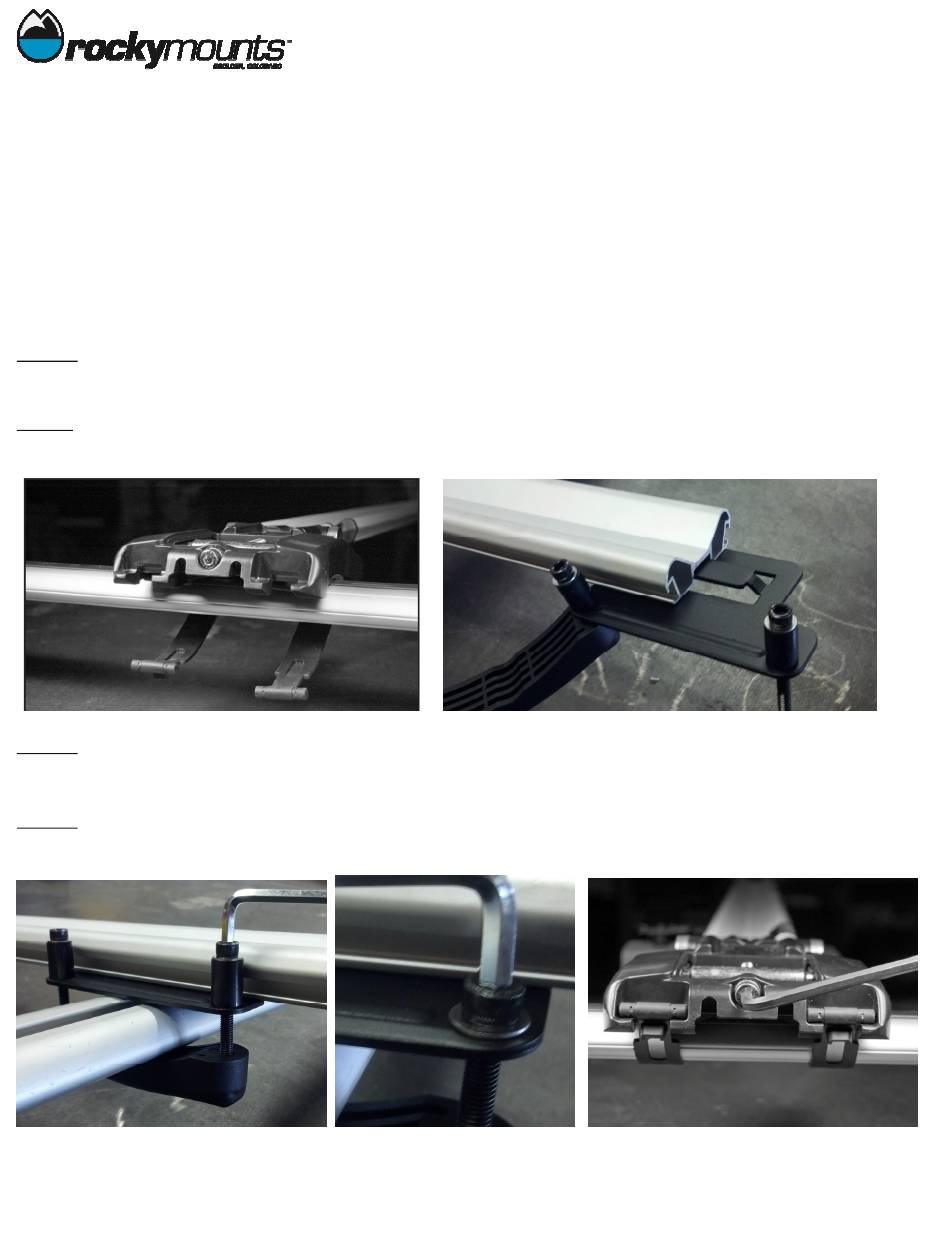

Step 1:

Remove the cover plate from the head by pulling up on the tab. Loosen the bolt and unhook the
T-ends of the straps from the head. Place the rack onto your crossbar with the T-end straps under the
front crossbar (Figure#1).
Step 2: Slide the rear mounting bracket into the slot at the end of the Wheel Tray. Loosen one of the
bolts and pivot the plastic bracket away (Figure #2).
Figure #1
Step 3: Continue sliding the rear mounting bracket and center over the rear crossbar. Pivot the
plastic bracket to align with the loosened bolt and tighten (Figure #3). If bolts are not long
enough, unthread bolts and remove two black spacers (Figure #4).
Step 4: Hook the T-ends back into the openings and tighten (Figure #5).
Figure #3
TieRod Installation Manual
Figure #4
Figure #2
Figure #5
