VMAX
IP G4™
®

System Explanation

1.4
Front Panel

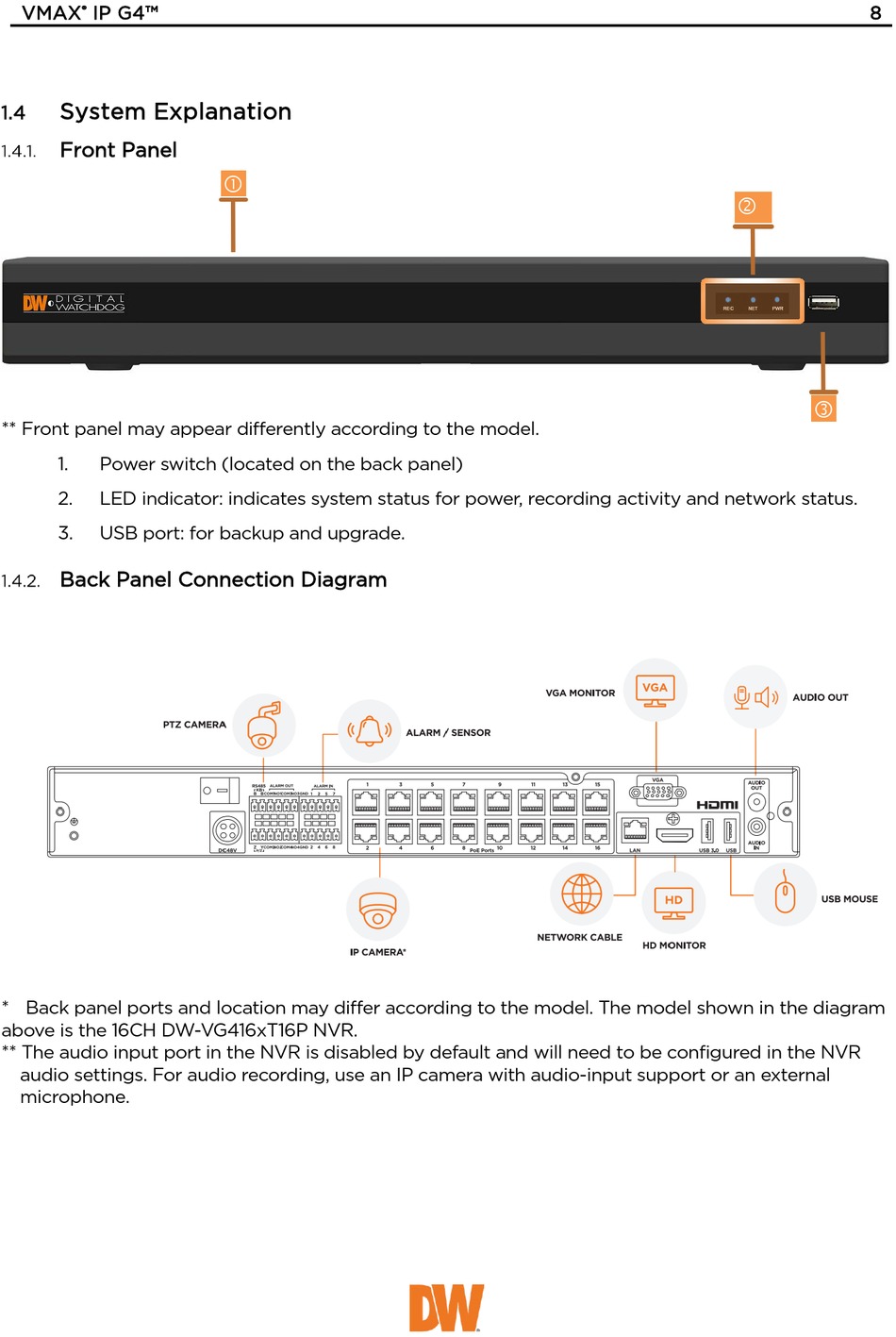

** Front panel may appear differently according to the model.
1.
Power switch (located on the back panel)
2.
LED indicator: indicates system status for power, recording activity and network status.
3.
USB port: for backup and upgrade.
Back Panel Connection Diagram
* Back panel ports and location may differ according to the model. The model shown in the diagram
above is the 16CH DW-VG416xT16P NVR.
** The audio input port in the NVR is disabled by default and will need to be configured in the NVR
audio settings. For audio recording, use an IP camera with audio-input support or an external
microphone.
