SECTION 3 - ELECTRICAL CONNECTIONS FOR ELECTRIC MODELS

Determine if the cabinet is Electric or Non-Electric to proceed.
For cabinets with a lighted front mirror Robern recommends the Maestro® C•L® Dimmer from LUTRON®, Model # MACL-153M.
http://www.lutron.com/TechnicalDocumentLibrary/369613a.pdf
Other LED control dimmers may operate with this product but have not been tested or verified. It's recommended that the dimmer be
within reach of your mirror so you can adjust the brightness.
For on/off (no dimmer) operation a standard wall switch may be substituted in place of the dimmer.

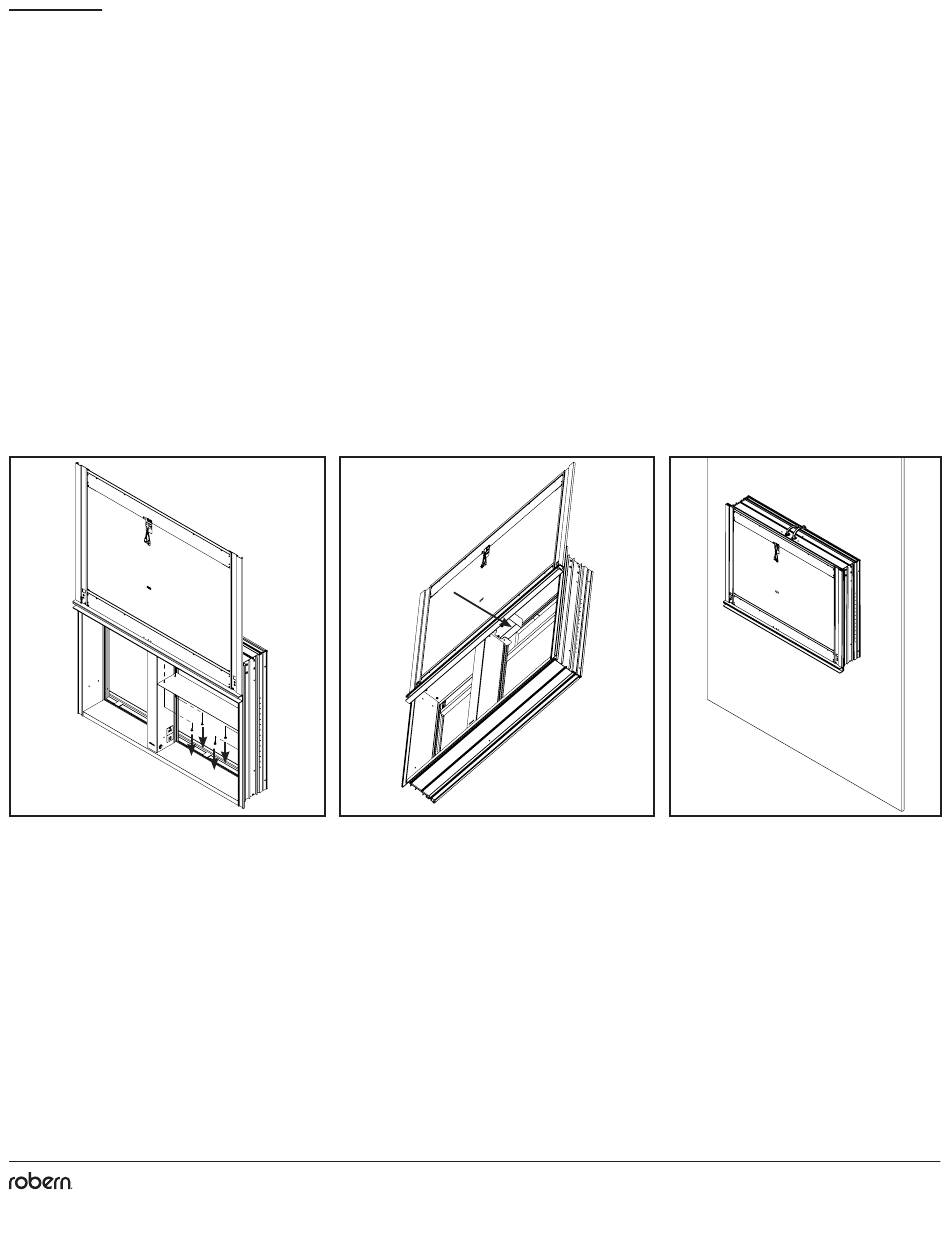

1. Using supplied 3/32 Allen Key remove the four screws to remove the right hand top ceiling panel inside the cabinet.
2a. This will give access to the electrical connection box.
3. Pull field wiring through the top holes and leave them hanging out of the Electrical Connection Box.
1
4. There are three ways to connect Uplift Tech depending on your cabinet's electrical options. Make connections as required. These are
detailed on the following page.
5. Go to Section 4 for Final Assembly.
© 2019 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
2a
8
3
Pull bottom of cab
from the wall by a
and attach lower
brackets as shown
components have
hidden for clarity)
Part no. 209-1319-rA rev. 08/21/19
