Robern PC1230D4T Instructions Manual

CONTENTS
General Information - 1
Tools Needed - 2
Parts - 2
Notes - 3
Model Numbers - 3
GENERAL INFORMATION
This instruction sheet contains information on how to install the Profiles framed cabinets. This series comes in various sizes.
Refer to specific model numbers for dimensions. Read the specific instruction for how your cabinet will be mounted. The cabinets
can be surface mounted or recess mounted.
Save these instructions for future use and reference.
An improper installation voids the warranty. Installed cabinets cannot be returned. If you experience any problems with your cabinet,
contact your dealer or Robern directly.
WARNING: Magnetic Accessory Tool Holder can be harmful to pacemaker wearers and others with medical implants.
Limited Warranty - One Year Term
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
PROFILES FRAMED CABINET
Important safety instructions - Save these instructions
2030D4 NON ELEC
2030D6 NON ELEC
Dimensions - 4
Removing the Door for ease
of Installation - 5
Electric Connections - 5
Option 1 - 7
Option 2 - 8
1
PC1230D4T, PC1630D4T,
PC2030D4T, PC2430D4T,
PC1240D4T, PC1640D4T,
PC2040D4T, PC2440D4T,
PC1648D4T, PC2048D4T,
PC1230D6T, PC1630D6T,
PC2030D6T, PC2430D6T,
PC1240D6T, PC1640D6T,
PC2040D6T, PC2440D6T,
Recess Mounting - 9
Surface Mounting - 11
Final Assembly - 14
Use and Maintenance - 16
Warranty - 16
Part no. 209-1289 rev. 03/10/20
2430D4 NON ELEC
PC2448D4T,
2430D6 NON ELE

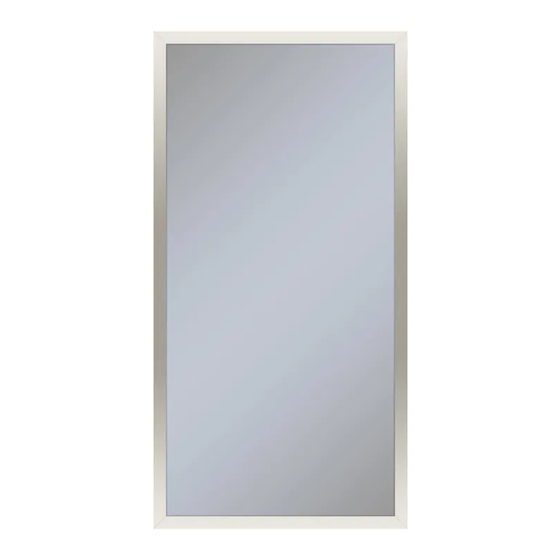

Profiles Framed Cabinet
