SECTION 1 - INSTALLING THE MOUNTING BAR

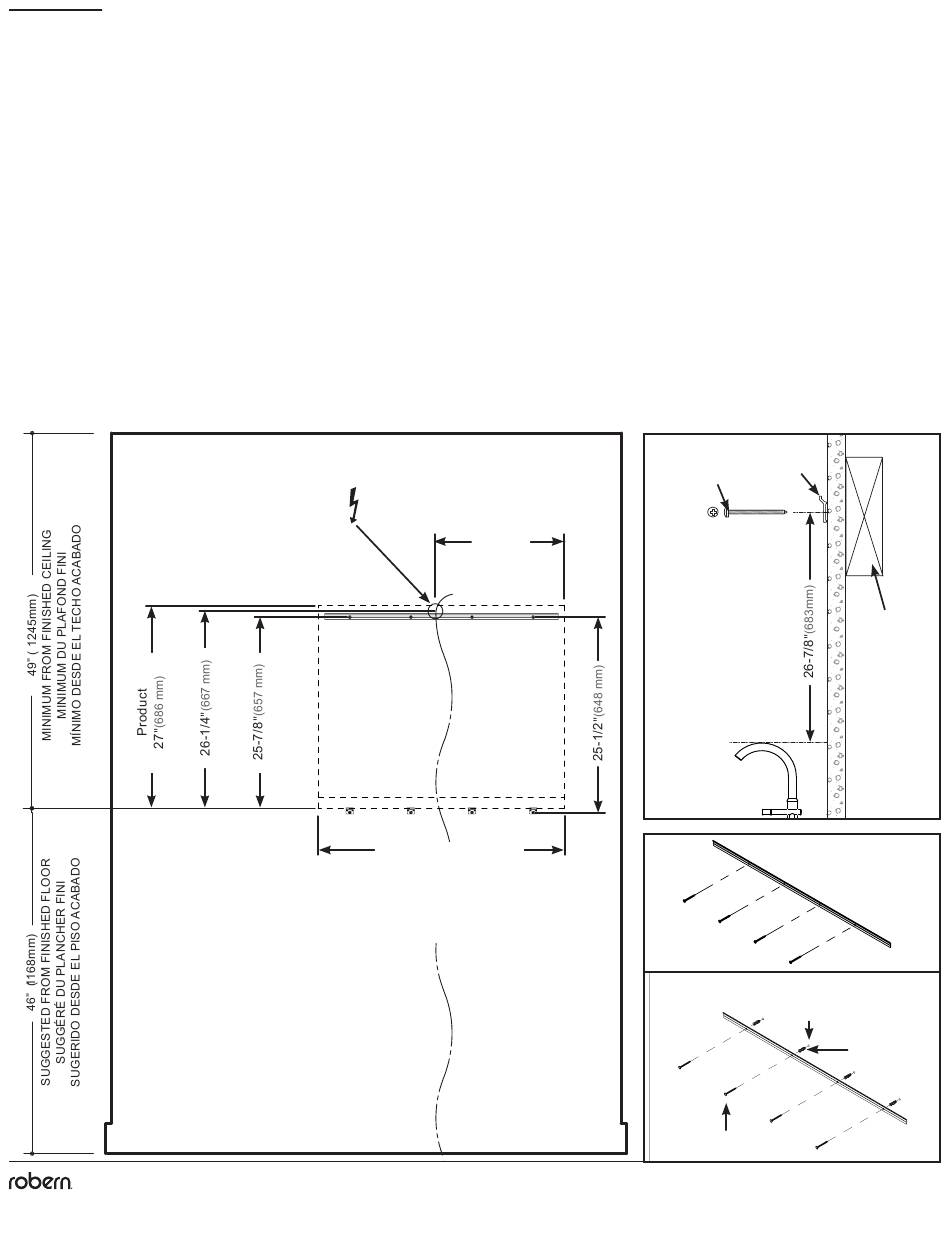

1. See below for location and dimension of specific model and electric rough-in.
2. Be sure the mounting bar is level and centered horizontally in the cabinet mounting location
3. STRUCTURAL MOUNTED SCREWS:
a. USE #10 x 2" screws (SS674) provided to attach the mounting bar strip to the wall.
b. You can pre-drill a 3/32" hole in the stud
4.PLASTIC WALL ANCHORS MOUNTING SCREWS:
a. Note all mounting requirements listed on previous page must be met for proper installation.
b. Drill a 5/16" (8mm) hole for wall anchor.
c. Insert wall anchor (203-1349) into hole until anchor flange is flush with the wall
d. Insert the #10 x 2" screw (SS674) and tighten until there is a strong resistance.
e. Do not overtighten.
.
1
© 2019 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Field wiring
19-1/8"
(485 mm)
Product
UC2748 = 48"
(1219 mm)
UC2736 = 36"
(914 mm)
UC2730 = 30"
(762 mm)
UC2724 = 24"
(610 mm)
6
Mounting Bar
SS674
3
4
5/16"
(8mm)
SS674
Part no. 209-1319-rA rev. 08/21/19
1" x 3"
203-1349
Uplift Tech Cabinet
