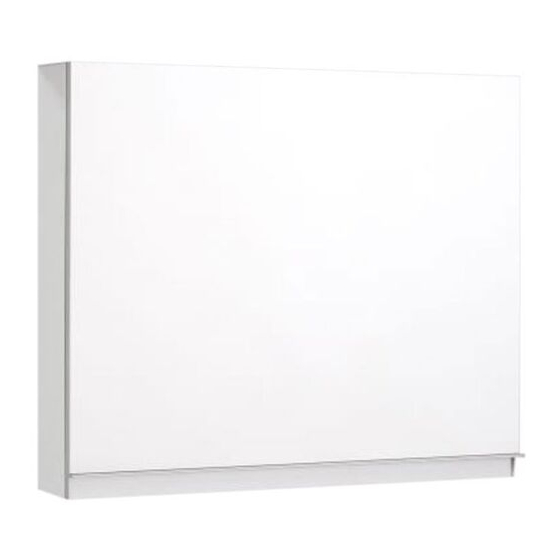

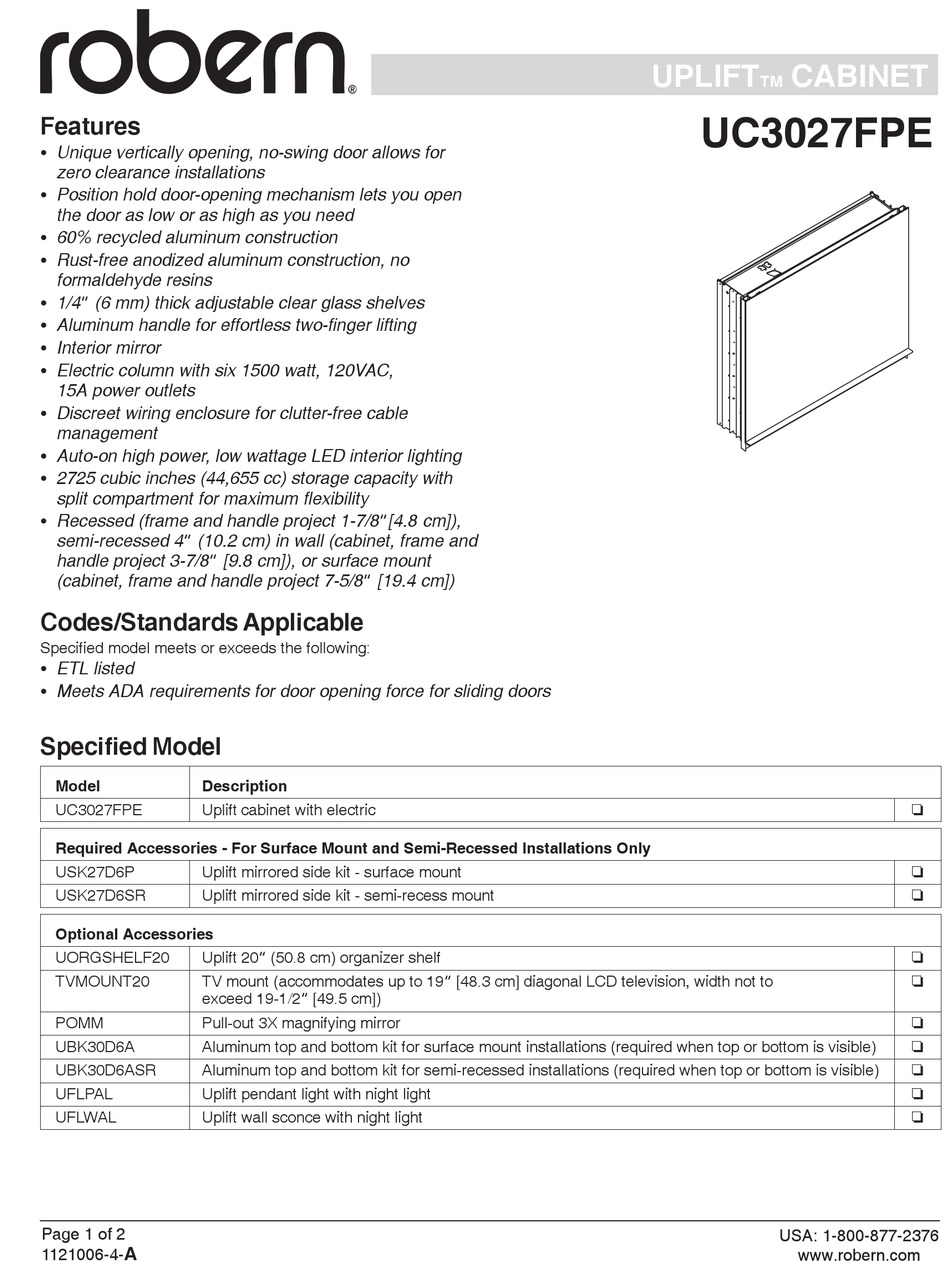

Robern UPLIFT CABINET UC3027FPE Installation Notes

Features
S Unique vertically opening, no-swing door allows for
zero clearance installations
S Position hold door-opening mechanism lets you open
the door as low or as high as you need
S 60% recycled aluminum construction
S Rust-free anodized aluminum construction, no
formaldehyde resins
S 1/4 (6 mm) thick adjustable clear glass shelves
S Aluminum handle for effortless two-finger lifting
S Interior mirror
S Electric column with six 1500 watt, 120VAC,
15A power outlets
S Discreet wiring enclosure for clutter-free cable
management
S Auto-on high power, low wattage LED interior lighting
S 2725 cubic inches (44,655 cc) storage capacity with
split compartment for maximum flexibility
S Recessed (frame and handle project 1-7/8[4.8 cm]),
semi-recessed 4 (10.2 cm) in wall (cabinet, frame and
handle project 3-7/8 [9.8 cm]), or surface mount
(cabinet, frame and handle project 7-5/8 [19.4 cm])
Codes/Standards Applicable
Specified model meets or exceeds the following:
S ETL listed
S Meets ADA requirements for door opening force for sliding doors
Specified Model
Model Description
UC3027FPE Uplift cabinet with electric
Required Accessories - For Surface Mount and Semi-Recessed Installations Only
USK27D6P Uplift mirrored side kit - surface mount
USK27D6SR Uplift mirrored side kit - semi-recess mount
Optional Accessories
UORGSHELF20 Uplift 20 (50.8 cm) organizer shelf
TVMOUNT20 TV mount (accommodates up to 19 [48.3 cm] diagonal LCD television, width not to
exceed 19-1/2 [49.5 cm])
POMM Pull-out 3X magnifying mirror
UBK30D6A Aluminum top and bottom kit for surface mount installations (required when top or bottom is visible)
UBK30D6ASR Aluminum top and bottom kit for semi-recessed installations (required when top or bottom is visible)
UFLPAL Uplift pendant light with night light
UFLWAL Uplift wall sconce with night light
Page 1 of 2
A
1121006-4-
UPLIFT CABINET
TM
UC3027FPE
USA: 1-800-877-2376
www.robern.com
