GENERAL INFORMATION
This instruction sheet contains information on how to install a lock box and shelf in a variety of applications. This product kit fits different
cabinet sizes. Read the specific instruction for how your lock box and shelf will be installed.
Save these instructions for future use and reference. An improper installation voids the warranty. Carefully inspect the lock box, shelf
and hardware for damage prior to installation. Installed products cannot be returned.
If you experience any problems with your lock box, contact your dealer or Robern directly.
Limited Warranty - One Year Term
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376
www.robern.com

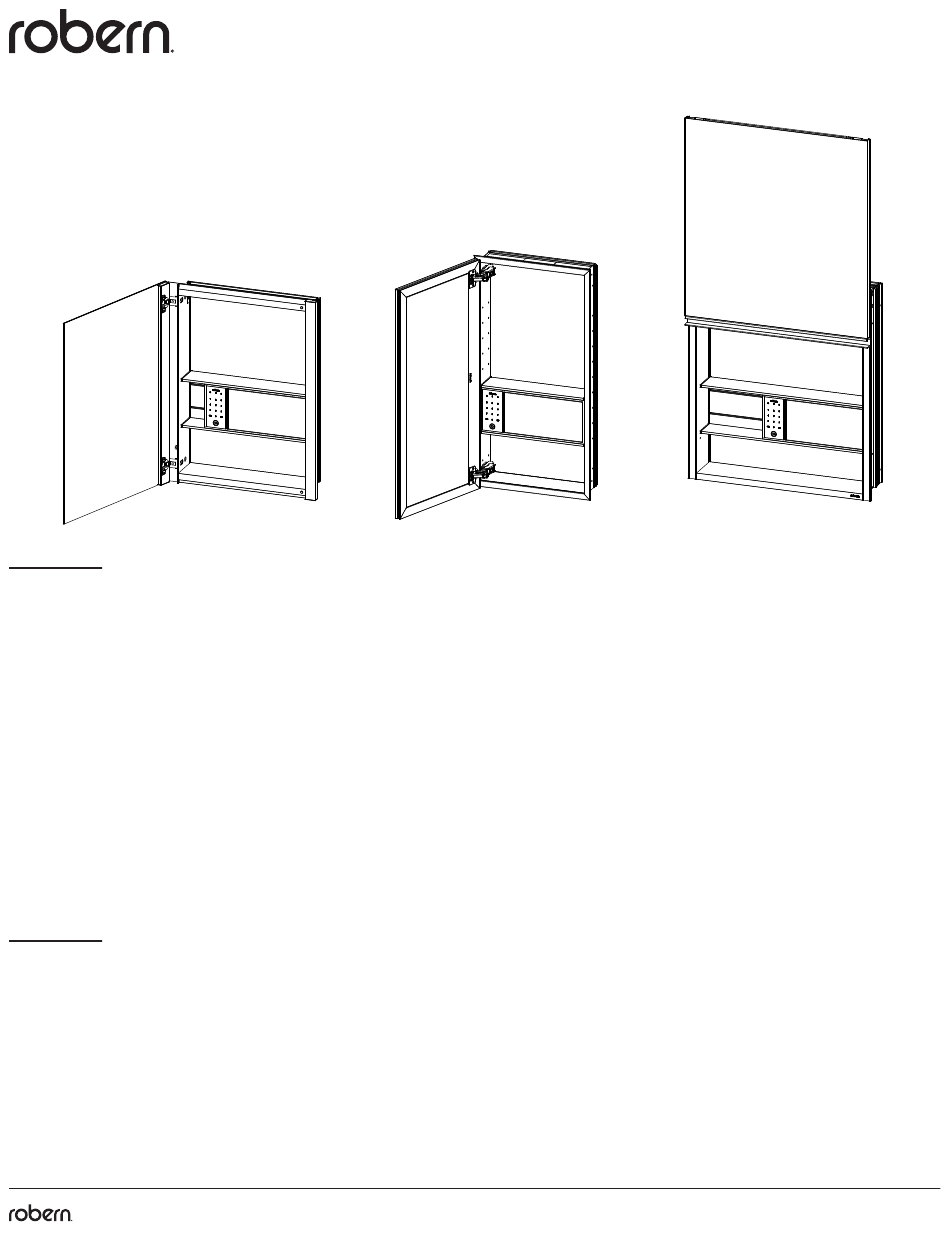

IQ™ DIGITAL LOCK BOX
Important safety instructions - Save these instructions
PL 16, 20, 24
PC 16, 20, 24
MC 16, 20, 24
DC 16, 20, 24
AC 24, YC 24
1
Installation Instructions
UC 24, 30, 36, 48
Part no. 209-1313 07/23/2020
