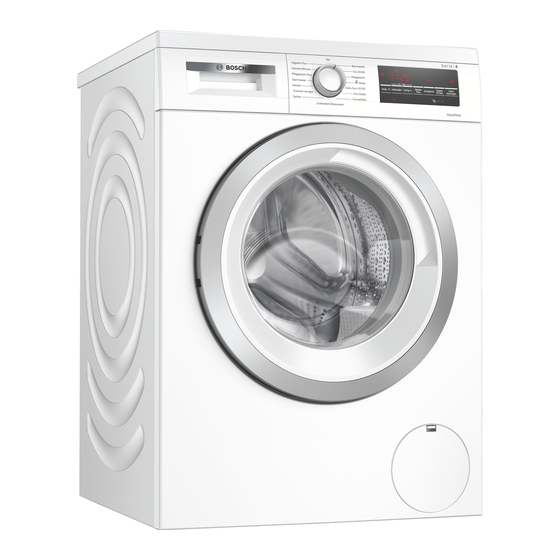

Washing machine
WUU28T41
[en]
Instructions for use and
assembly

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WUU28T41 and is the answer not in the manual?

Questions and answers

Related Manuals for Bosch WUU28T41

Summary of Contents for Bosch WUU28T41

  • Page 1 Translated from German to English - www.onlinedoctranslator.com Washing machine WUU28T41 [en] Instructions for use and assembly...

  • Page 2: Table Of Contents

    More information and explanations can be found online: Table of Contents 1 Safety ........4 8 keys ........23 1.1 General information ..... 4 9 programs ........24 1.2 Intended use ............4 10 Accessories ........28 1.3 Restriction of the group of 11 Laundry ........
  • Page 3 15 Basic settings ....33 16 Cleaning and care ....33 16.1 Cleaning the drum ..... 33 16.2 Cleaning the detergent drawer........33 16.3 Cleaning the drain pump ..34 17 Eliminate faults ....38 17.1 Emergency release ......48 18 Transport, storage and Dispose of ........

  • Page 4: Safety

    ensecurity 1 security Observe the following safety instructions. 1.1 General information ¡Read this guide carefully. ¡Keep the instructions and the product information for yourself later use or re-owner. ¡Do not connect the device if it has been damaged in transit. 1.2 Intended use Only use the device: ¡about machine-washable textiles and hand-washable wool...

  • Page 5: Secure Installation

    securityen 1.4 Secure Installation When installing the device, observe the safety instructions. WARNING - DANGER OF ELECTRIC SHOCK! Improper installations are dangerous. ▶ Only connect and operate the device in accordance with the information on the type plate. ▶ Connect the equipment to an AC power supply only through a properly installed, grounded outlet.
  • Page 6 ensecurity WARNING - Fire Hazard! Using an extended power cord and unapproved adapters is dangerous. ▶ Do not use extension cords or multiple socket strips. ▶ If the power cord is too short, contact customer service. ▶ Only use adapters approved by the manufacturer. WARNING - Risk of injury! The high weight of the device can lead to injuries when lifting.

  • Page 7: Safe Use

    securityen CAUTION - Risk of injury! The device may vibrate or move during operation. ▶ Place the device on a clean, level and solid surface. ▶ Align the device using the device feet and a spirit level. There is a risk of stumbling if hoses and mains connection cables are not laid properly.
  • Page 8 ensecurity ▶ Never expose the device to extreme heat and moisture. ▶ Do not use steam cleaners, high-pressure cleaners, hoses or showers to clean the device. WARNING - Danger of damage to health! Children can lock themselves in the device and endanger their lives.

  • Page 9: Safe Cleaning And Maintenance

    securityen The device may tip over when sitting or leaning on the open door. ▶ Do not sit or lean on the appliance door. ▶ Do not place any objects on the appliance door. Reaching into the rotating drum can lead to hand injuries. ▶...
  • Page 10 ensecurity Penetrating moisture can cause an electric shock. ▶ Do not use steam cleaners, high-pressure cleaners, hoses or showers to clean the device. WARNING - Risk of injury! The use of non-original spare parts and original accessories is dangerous. ▶ Only use original spare parts and original accessories from the manufacturer.

  • Page 11: Avoiding Property Damage

    Avoid property damageen ▶ Make sure that the valve housing of the 2 Avoid property damage water inlet hose is installed so that it does not come into contact with the environment and is not exposed to any Follow these instructions to avoid external forces.

  • Page 12: Environmental Protection And Saving

    enenvironmental protection and savings Unsuitable cleaning agents can Use economical program settings. damage the surfaces of the device. aIf you Do not use harsh or abrasive ▶ If you adjust the settings for a cleaning agents. program, the display shows the ▶...

  • Page 13: Energy Saving Mode

    Set up and connecten The device has an automatic quantity 4.2 Scope of Delivery control. After unpacking, check all parts for aThe quantity automatic fits the transport damage and that the water consumption and the delivery is complete. duration of the program optimally to the type of fabric and the load.

  • Page 14: Remove Transport Locks

    enSet up and connect location requirements WARNING Risk of injury! kitchenette The device only When operating on a base, the device under can tip over. hender working ▶ Before using the device for the first put up a plate time on a base, be sure to fasten it which are fixed to with the retaining tabs →...
  • Page 15 Set up and connecten Pull the hoses out of the holders. Remove the 4 sleeves. Insert the 4 cover caps. Loosen and remove all screws of the 4 transport locks with a SW13 wrench. Press down the 4 cover caps. Remove the power cord from the bracket.

  • Page 16: Connecting The Device

    enSet up and connect ATTENTION! 4.5 Connecting the device When pumping out, the water drain water inlet hose hose is under pressure and can detach from the installed connection point. connect Secure the water drain hose ▶ WARNING against unintentional loosening. Electric shock hazard! The device contains live parts.

  • Page 17: Align The Device

    Set up and connecten Hand-tighten the lock nuts against 4.6 Align device the housing using a SW17 wrench. Orient the device correctly to reduce noise and vibration and to prevent the device from wandering. Loosen the counter nuts clockwise with a SW17 wrench. Hold the base of the device and do not adjust the height.

  • Page 18: Getting To Know Each Other

    enTo get to know 5 getting to know each other 5.1 Device Here you will find an overview of the components of your device. Depending on the device type, details in the image may vary, e.g. B. Color and shape. power cord maintenance hatch of the caustic →...

  • Page 19: Detergent Drawer

    To get to knowen 5.2 Detergent drawer Chamber II: ¡Detergent for the main Laundry ¡softener ¡bleach ¡stain salt Chamber : ¡softener ¡liquid starch ¡waterproofing agent Chamber I: ¡Detergent for the pre- 1 2 3 ¡hygiene detergent 5.3 Control panel You can use the control panel to set all the functions of your device and receive information about the operating status.

  • Page 20: Before First Use

    en use Pour powder detergent into 6 Before the first compartment II. B prepare the device for use. 6.1 Start empty wash cycle Your device has been thoroughly tested before leaving the factory. To remove any residual water, wash without laundry for the first time. Open the program selectorClean To avoid foaming, use only half the drumplace.

  • Page 21: Screen

    screenen 7 displays The display shows the current setting values, selection options or information texts. Exemplary display designation More information advertisement 0:40 Approximate expected program duration or program duration / remaining program time. remaining time of the grams → Done in - time "Buttons", page 23 10 a.m 9.0kg...
  • Page 22 enscreen designation More information advertisement Start pause Start, cancel or pause ¡lights up: The program is running and can be canceled or paused. ¡Flashes: The program can be started or continue. To wash program status Wash program status Sling program status –...

  • Page 23: Keys

    Keysen 8 buttons The selection of the program settings depends on the set program. You can see the options for each program in the overview for → "programs", page 24 . selection More information button Start/Reload ¡start Start, cancel or pause program. ¡abort ¡pause SpeedPerfect...

  • Page 24: Programs

    enprograms 9 programs A notice:The laundry care labels give you additional information on program selection. Max. program description loading dung (kg) Cotton Wash hard-wearing textiles made of cotton, linen and blended fabrics. Also suitable as a time-reduced program for normally soiled laundry if you activate SpeedPerfect. Program setting: ¡max.
  • Page 25 programsen Max. program description loading dung (kg) Program setting: ¡max. 60 °C ¡max. 1400 rpm Fine silk Wash delicate, washable textiles made of silk, viscose and synthetics. Use a detergent for delicates or silk. A notice:Wash particularly delicate textiles or textiles with hooks, eyelets or hangers in the laundry net.
  • Page 26 enprograms Max. program description loading dung (kg) shirts/blouses Wash non-iron shirts and blouses made of cotton, linen, synthetics and blended fabrics. A notice:Use the Delicates/Silk program to wash shirts and blouses made from silk or delicate fabrics. Program setting: ¡max. 60 °C ¡max.
  • Page 27 programsen Max. program description loading dung (kg) – clean drum Cleaning and maintaining the drum. Use the gene program in the following cases: ¡before first use ¡when washing frequently with a wash temperature temperature of 40 °C and below ¡after a long absence Use heavy-duty powder detergent or detergent containing bleach.

  • Page 28: Accessories

    Objects left in the laundry can found in the digital user manual by damage the laundry and the drum. scanning the QR code in the table of contents or at www.bosch-home.com. Before operation, remove all ▶ objects from the pockets of the...

  • Page 29: Detergents And Care Products Phone

    → "Setting up and connecting", Hints ¡Extended instructions for use page 13 can be found at www.bosch- Set the program selector to a ▶ home.com or by scanning the QR program. code on the front page of these...

  • Page 30: Setting The Program

    enservice Press down the insert and remove 13.2 Set program the detergent drawer. Turn the program selector and set it to the required programme. → "programs", page 24 If necessary, adjust program settings → page 30 . 13.3 Customize program settings Precondition:A program is set.

  • Page 31: Filling In Detergent And Care

    serviceen Push the dosing aid forward. If necessary, fill in the care product. Push in the detergent drawer. 13.8 Start program A notice:If you want to change the time until the end of the programme, set the Ready in time first. onStart/Reloadto press.

  • Page 32: Soaking Laundry

    enchild lock 13.10 Soaking laundry 13.13 Continue program at rinse stop A notice:No additional detergent is necessary. The suds are then used The programSlingor select a suitable for washing. pumping program. → "programs", page 24 Start the program. onStart/Reloadto press. To pause the program, open after about 10 minutesStart/ Reloadto 13.14 Remove laundry...

  • Page 33: Deactivating Child Safety

    A notice:Further information can be found in the digital user manual by Pull out the detergent drawer. scanning the QR code in the table of contents or at www.bosch-home.com. Push down the insert and remove the detergent drawer. 16 Cleaning and care...

  • Page 34: Cleaning The Drain Pump

    encleaning and care Pull out the insert from the bottom Clean the opening for the detergent drawer. Clean the detergent drawer and Push in the detergent drawer. insert with water and a brush and dry. 16.3 Clean the drain pump Clean the drain pump in the event of faults, e.g.
  • Page 35 cleaning and careen Push a sufficiently large container CAUTION - Danger of scalding! under the opening. The suds get hot when washing at high temperatures. Do not touch the hot suds. ▶ To let the suds drain into the container, pull off the cap. Remove the drain hose from the holder.
  • Page 36 encleaning and care Install the pump cover. Clean drain pump Ensure that the pump cover ‒ Precondition:The drain pump is empty. → page 34 components are assembled correctly. Since there may still be residual water in the drain pump, carefully unscrew the pump cover.
  • Page 37 cleaning and careen Choose a suitable pumping program. → "programs", page 24...

  • Page 38: Eliminate Faults

    enTroubleshooting 17 Troubleshooting You can rectify minor faults in your device yourself. Use the troubleshooting information before contacting customer service. In this way you avoid unnecessary costs. WARNING Electric shock hazard! Improper repairs are dangerous. Only trained specialists may carry out repairs on the device. ▶...
  • Page 39 Troubleshootingen Cause and troubleshooting Disturbance "E:36 / -10" Remove impermissible extensions on the water drain ▶ hose. → "Connecting the device", page 16 Pump cover is not fully screwed in. Make sure that the pump cover is screwed into the ▶...
  • Page 40 enTroubleshooting Cause and troubleshooting Disturbance "E:35 / -10" Call customer service. ▶ → "Customer Service", page 49 symbol voltage Voltage control system detects impermissible exceeded (double undervoltage. Point). No fix possible. ▶ A notice:When the power supply has stabilized, the program continues to run normally.
  • Page 41 Troubleshootingen Cause and troubleshooting Disturbance "E:30/-20" Do not add additional water to the device during ▶ operation. device works The mains plug of the mains connection cable is not plugged Not. Connect the device to the mains. ▶ Fuse in the fuse box has blown. Check the fuse in the fuse box.
  • Page 42 enTroubleshooting Cause and troubleshooting Disturbance Door cannot be Power failure. opened. Open the door with the emergency release. ▶ → "Emergency release", page 48 suds will not Drain pipe or water drain hose is clogged. Clean the drain pipe and water drain hose. pumped out.
  • Page 43 Troubleshootingen Cause and troubleshooting Disturbance Water doesn't run in. Start/Reloadwas not pressed. Detergent will not PressStart/Reload . ▶ washed in. Filter in the water inlet is clogged. Clean the strainer in the water inlet. ▶ Water tap is closed. Open the faucet. ▶...
  • Page 44 enTroubleshooting Cause and troubleshooting Disturbance Device is not aligned correctly. vibration and movement → "Align device", page 17 the appliance during ▶ spinning. Device feet are not fixed. Fix the device feet. ▶ → "Align device", page 17 Transport locks are not removed. →...
  • Page 45 Troubleshootingen Cause and troubleshooting Disturbance Spin program A notice:Put large and small items of laundry together in the drum. Items of laundry of different sizes spread does not start. out better when spinning. Start the programSling . ▶ rushing, zi- Water is flushed into the detergent drawer under hissing sound.
  • Page 46 enTroubleshooting Cause and troubleshooting Disturbance spin result is Drain pipe or water drain hose is clogged. unsatisfactory Clean the drain pipe and water drain hose. ▶ lending The laundry is too wet / too damp. Drain pipe or water drain hose is kinked or pinched. Make sure the drain pipe and water drain hose are ▶...
  • Page 47 Troubleshootingen Cause and troubleshooting Disturbance Water drain hose is not properly connected. at the water outlet hose running water out. Connect the water drain hose correctly. ▶ → "Connection types for water drainage", page 16 Odors have formed Moisture and detergent residue can promote the in the appliance.

  • Page 48: Emergency Release

    For more information see ▶ → "Setting up and connecting", instruction manual ch the scan m content Find the QR code in page 13 and → "Before first use", page 20 . the directory or on ww w.bosch-ho- me.com.

  • Page 49: Disposing Of The Old Device

    Customer serviceen 18.4 Disposing of the old device 19 Customer Service Valuable raw materials can be If you have application questions, reused through environmentally cannot fix a fault on the device friendly disposal. yourself, or the device needs to be repaired, please contact our customer WARNING service.

  • Page 50: Aqua-Stop Guarantee

    enCustomer service You can make a note of the data so that you can quickly find your device data and the customer service telephone number. 19.2 AQUA-STOP Guarantee In addition to warranty claims against the seller from the purchase contract and in addition to our manufacturer's guarantee, we provide replacement under the following conditions.

  • Page 51: Consumption Values

    consumption valuesen 20 consumption values The following information is given in accordance with the EU Ecodesign Regulation. The values given for programs other thanEco 40-60are only guide values and were determined based on the applicable standard EN60456. Per- program sling Rest- What- energy...

  • Page 52: Specifications

    enTechnical specifications the model search. The model identifier 21 Specifications results from the characters in front of the slash of the product number (E- No.) on the type plate. Alternatively, 84.5 cm device height you can also find the model identifier 59.8cm device width in the first line of the EU energy label.
  • Page 56 Contact data of all countries are listed in the attached service directory. Robert Bosch Hausgeräte GmbH Carl-Wery-Strasse 34 81739 Munich GERMANY www.bosch-home.com * 9001631268* 9001631268(020207)
