Heatilator RAVE3012I Installation & Operating Instructions

Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
CAUTION! Do not install damaged components.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
fl ammable materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
• Do NOT operate with protective barriers open or removed.
• These instructions are to be left with a person responsible
for the use and operation of the fi replace.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap a decorative front.
CONTENTS:
• Decorative Front Assembly
• Four Shoulder Bolts
• Mesh screen and two mesh clips
Verify and remove contents from packaging before begin-
ning installation.

Installation Instructions

1. Locate the two top slots in the glass frame assembly.
These will correspond to two mesh clips on the mesh
frame assembly. See Figure 2.
2. Slide mesh into two bottom permanent glass retainers
and snap the two mesh clips into the two correspond-
ing top slots in the glass frame assembly. See Figure
2. Ensure that the mesh frame assembly is installed
so that the spline is projecting outward from the fi re-
place. See Figure 1.
3. Install four shoulder bolts included in kit. See Figure 3.
Deco Decorative Front
Model: RAVE3012I
Installation & Operating Instructions
Heatilator • Deco Decorative Front Instructions • 2269-948 • 9/11

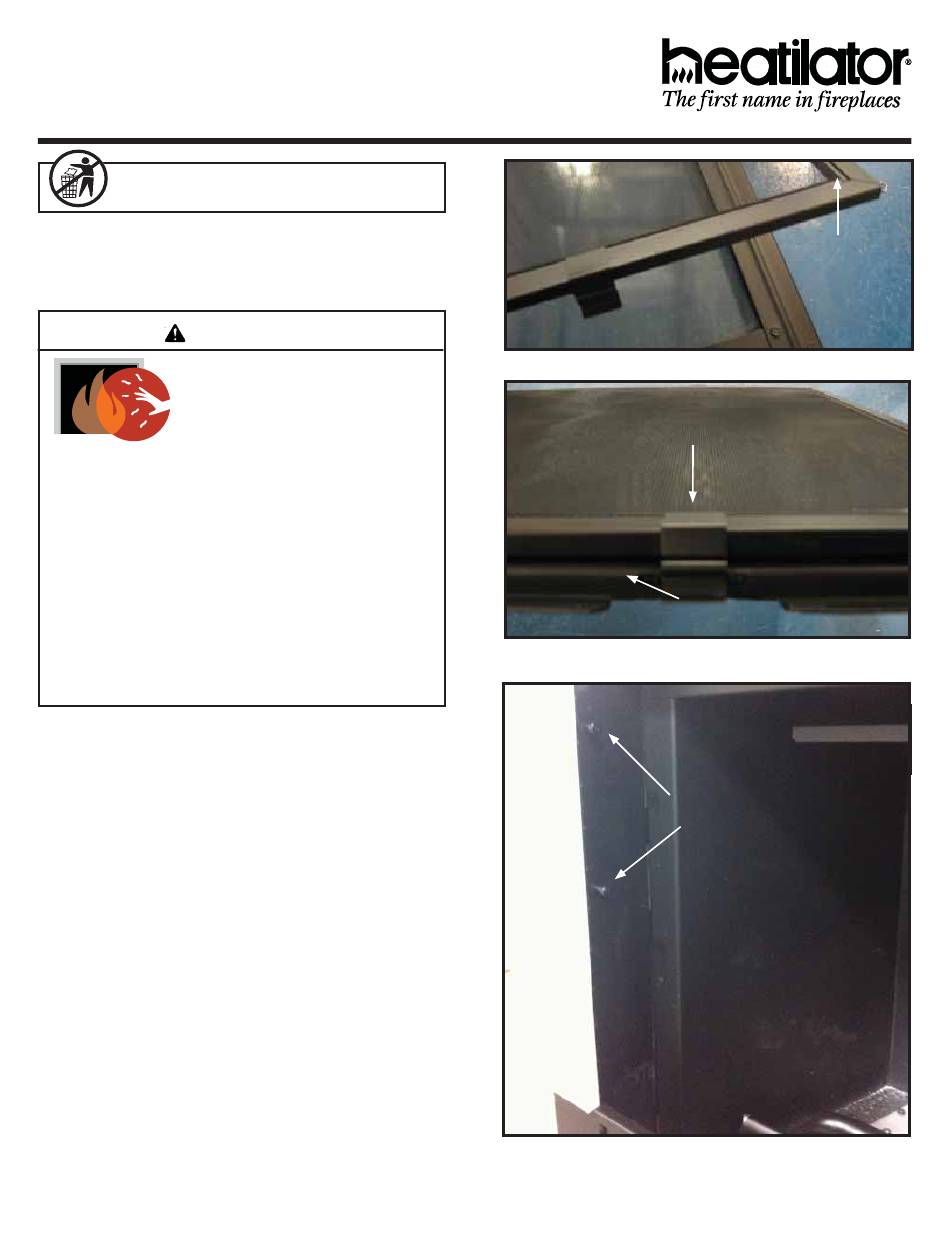

Figure 1. Location of Mesh Clips.
MESH CLIP MESH CLIP
ENGAGED ENGAGED
Figure 2. Mesh Clips Installed.
Note: The decorative front is held to the fi replace with
four screws that correspond to four rivnut fasteners
installed on the fi replace. See Figure 3.
SHOULDER BOLTS SHOULDER BOLTS
Figure 3. Location of Shoulder Bolts
SPLINE SPLINE
FACES OUT FACES OUT
SLOT SLOT
LOCATION LOCATION
