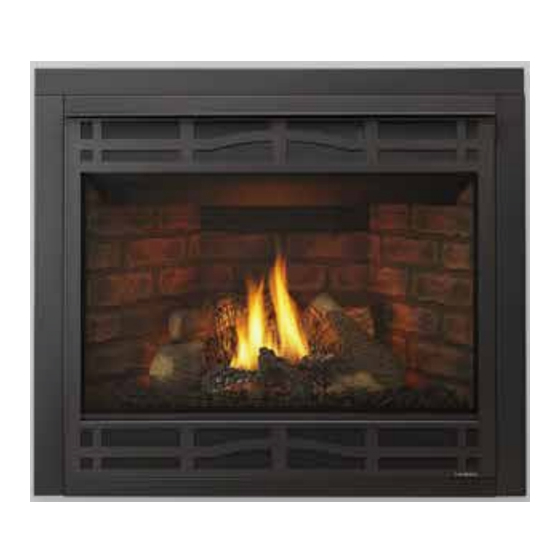

Heatilator NBV4236I-B Owner's Manual
Hide thumbs Also See for NBV4236I-B:

Advertisement

Quick Links

CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
Models:
Decorative barrier front must be ordered separately at
time of appliance purchase.
Owner's Manual
Operation and Maintenance
Heatilator • NBV4236I-B, NBV4842I-B Owner's Manual • 2376-981 Rev. L • 5/22
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading

Summary of Contents for Heatilator NBV4236I-B

  • Page 1 A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and must be installed for the protection of children and other at-risk individuals. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 2: Welcome

    00,000 00,000 00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 3: Table Of Contents

    C. Contact Information ......26  = Contains updated information. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 4: Limited Lifetime Warranty

    Firebox and heat exchanger, FlexBurn® System Limited 3 years Lifetime (engine, inner cover, access cover and fireback) None 1 Year All purchased replacement parts Page 1 of 2 4021-645M 9/21 Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 5 EXPRESSED WARRANTY SPECIFIED ABOVE FOR THE APPLICABLE PRODUCT. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Page 2 of 2 4021-645M 9/21 Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 6: Product Specific Information

    Installation and service of this appliance should be performed by qualified personnel. Hearth & Home Technologies recommends NBV4842I-B 30,000 22,500 0-2000 FT) HHT Factory Trained or NFI certified professionals. (Propane) Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 7: Important Safety And Operating Information

    • Keep remote controls out of reach of children. • Never leave children alone near a hot fireplace, whether operating or cooling down. Figure 3.1 Clear Space Requirement - All Models Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 8: General Operating Parts

    °F (17 °C) yield increased temperatures of up to 30 more depending on the thermometer settings and material characteristics being measured. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 9 Suggestions on how to further reduce TV temperatures: Increase “A” dimension. b. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended typically results in higher temperatures. Figure 3.4. Good Faith TV Guidelines Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 10: Before Lighting Appliance

    • Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fireplace with fixed glass assembly removed. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 11: Lighting Instructions (Ipi)

    For additional information on operating your Keep burner and control compartment clean. See installation and operating instructions Hearth & Home Technologies fireplace, please 593-913K accompanying appliance. refer to www.hearthnhome.com. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 12: Appliance Break-In

    NOTICE! Open windows for air circulation during fire- place break-in. • Some people may be sensitive to smoke and odors. • Smoke detectors may activate. Indicator Figure 3.5 Valve - IntelliFire Ignition System Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 13: Operation During A Power Outage (Ipi)

    Figure 3.6 ON/OFF Switch/ Control Cavity Location Wireless Remote: • Locate the remote control module in the control cavity. • Slide the ON/REMOTE/OFF switch to the ON position. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 14: Detailed Component Operating Instructions - Intellifire

    Remove batteries before using the transformer, and unplug the transformer before installing the batteries. Battery polarity must be correct or module damage will occur. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 15: Maintenance And Service

    CAUTION! Risk of Burns! The fireplace shall be turned off and cooled before servicing. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 16 If not using your fireplace for an extended period of time (summer months, vacations/trips, etc), to prevent unin- tended operation: • Remove batteries from remote controls. • Unplug 3 volt adapter plug on IPI models. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 17: Maintenance Tasks - Qualified Service Technician

    Use caution when cleaning these areas. Screw tips that have penetrated the sheet metal are sharp and should be avoided. • Remove all foreign objects. Figure 4.2 IPI Pilot Flame Pattern • Verify unobstructed air circulation. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 18: Frequently Asked Questions And Troubleshooting

    Installer’s Manual for this the touch. appliance. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.heatilator.com to locate a dealer. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 19: Troubleshooting

    Verify module is securely grounded to metal chassis of appliance. D. Module voltage output / Valve/Pilot Verify battery voltage is at least 2.7 volts. Replace batteries if volt- solenoid ohms readings. age is below 2.7. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 20 ON position. If there is no spark at “I” terminal module must be replaced. If there is a spark at “I” terminal, module is fine. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 21: Reference Materials

    Optional Refractory Kit If desired, a refractory kit may be added. Contact your dealer to order the correct refractory kit. Detailed installa- tion instructions are included with the refractory kit. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 22: Service Parts

    Beginning Manufacturing Date: Feb 2016 Novus Gas Fireplace - BV Ending Manufacturing Date: Active Manufacturing Reactivation Date: May 2022 Log Set Assembly Part number list on following page. 04/22 Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 23 Conversion Kit NG DCKVN-Novus Conversion Kit Propane DCKVP-Novus Pilot Orifice NG SRV593-528 Pilot Orifice Propane SRV593-527 Regulator NG SRVNGK-DXV Regulator Propane SRVLPK-DXV Additional service part numbers appear on following page. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 24 Conversion Kit NG DCKVN-Novus DCKVP-Novus Conversion Kit Propane Pilot Orifice NG SRV593-528 Pilot Orifice Propane SRV593-527 Regulator NG SRVNGK-DXV Regulator Propane SRVLPK-DXV Additional service part numbers appear on following page. Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 25 13.14 Bulkhead, Flexible 4021-512 Wire Assembly , Wall Switch SRV2118-170 Orifice NG (#42C) 582-842 NBV4236i-B Orifice Propane (0.058) 4021-602 Orifice NG (#37C) 582-837 NBV4842i-B Orifice Propane (#52C) 582-852 Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
  • Page 26: Contact Information

    This product may be covered by one or more of the following patents: (United States) 6601579, 6769426, 6863064, 7077122, 7074035, 7098269, 7234932, 7258116, 7322819, 7422011, 7470729, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945E Printed in U.S.A. - Copyright 2022 Heatilator • NBV4236I-B, NBV4842I-B Owner’s Manual • 2376-981 Rev. L • 5/22...
