Soft Menu Control Panel

The Soft Menu Display has 8 Top Menu selections (Mode,
Preset, Set Up, ECG, Archive, DICOM, AutoSeq and Cine)
and 8 Sub Menu selections (varies depending on choice of
Top Menu selection) available.
The Top Menu Select key toggles the soft menu display
on/off or returns to the top menu display from a sub menu.
The Sub Menu Select keys turn on a sub menu, move
through the sub menu selections and pages, change sub
menu values or turn on/off sub menu selections.
The up/down arrow keys turn on the sub menu.
The left/right arrow keys move through the menu selections
and pages.
B "
}
+
or Previous Page
B A
+
The up/down arrow keys change the highlighted
selection value or turn the sub menu selection on/off.
t
LOGIQ 400 Quick Start Guide
2237879–100 Rev. 0
All manuals and user guides at all-guides.com
Y "
+
}
Y or A
+ Next Page
A or "
+
LOGIQ 400 MD
1
B 1/4
2
Dynamic Gray Focus
Range Map Number
40 B–2

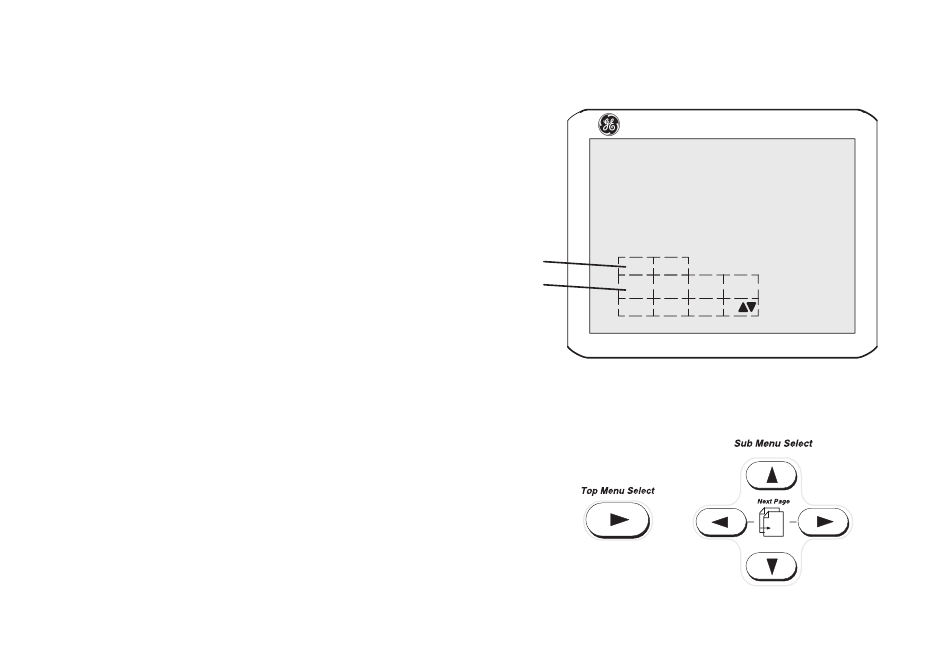

1. Top Menu Selections
2. Sub Menu Selections
Focus
Positn
2
Quick Start 7
