Matrox ConductIP Installation And User Manual page 40

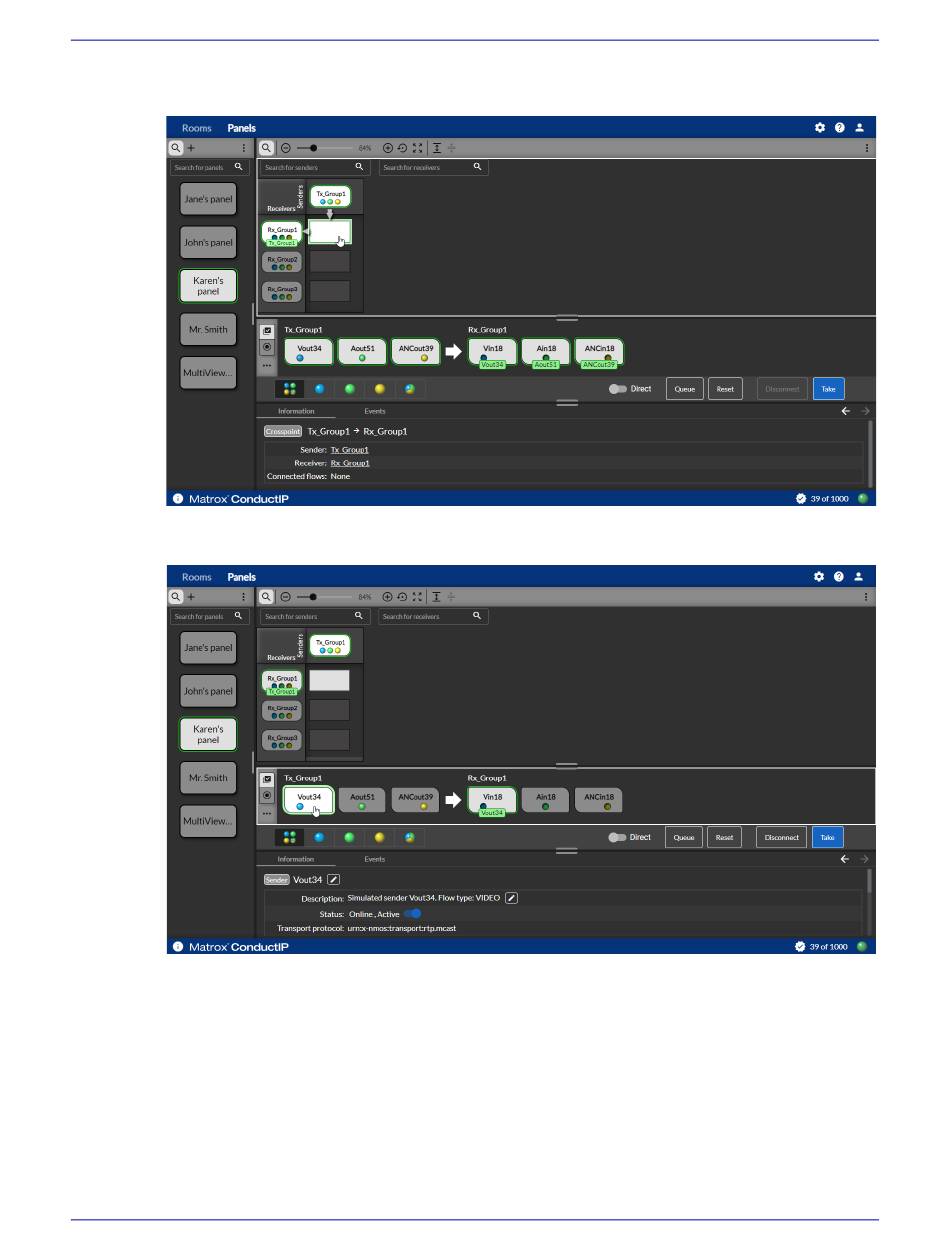

Step 2.
Step 3.
Part # V11550-301-0101(1)
Click the crosspoint of Tx_Group1 and Rx_Group1. The senders and receivers
will appear in the subpanel below the main panel area.
In the subpanel, click the video flow under Tx_Group1. This will select that
individual flow.
More info: When you click the sender flow, the compatible receiver is automat-
ically selected and a green label will appear above it to show the connection
that will be made when you click .
Take
Last updated: March 24, 2023
| 36 |
