Step 6.
Result of this task: The sender and receiver connections are applied and you can go to Karen's
room to see the flows. You can click
receiver flows.

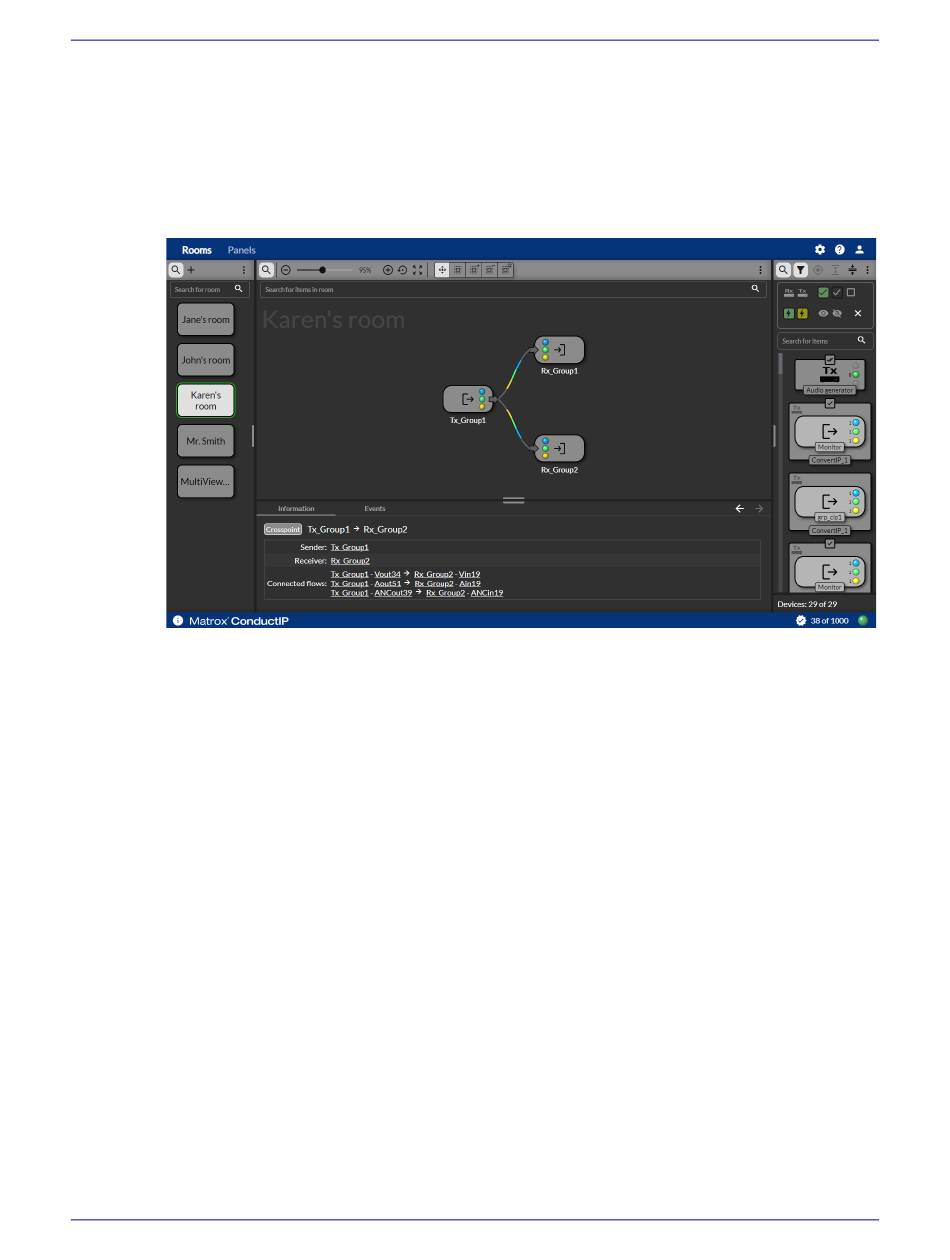

Image F. Karen's room with senders and receivers connected

Connecting individual sender and receiver flows

The connection options with ConductIP go beyond connecting sender groups to receiver
groups. You can also perform breakaway connections (i.e. send individual flows to different
receivers.
For example, you can have a typical sender group of video, audio, and ancillary data send each
of those individual flows to a different receiver. To illustrate this, we will add an extra receiver
group to Karen's room and send a flow to each (video to Rx_Group1, audio to Rx_Group2, and
ancillary data to Rx_Group3).
Part # V11550-301-0101(1)
Click to apply your connection(s) or click
Take
nections and start over. A "Take" should also clear any unconnected receivers.
Disconnect
to purge all queued con-
Reset
at any time to disconnect the sender and
Last updated: March 24, 2023
| 34 |
