the tubs of ice cream 10 . Its dimensions will vary based on
the model, while all the features are the same. The display
section is mounted with all the elements required to house
the tubs. Thanks to the careful design achieved by
Tecfrigo's technical staff, the customer has an excellent view
of the contents in the display section. Regardless of the type of
display case, all the display sections are equipped with lighting
to ensure excellent visibility of the contents by the customer,
even at night or in particularly dark rooms.
Located in the lower part of the window is a cooling system 11
that generates cold "temperature controlled" air and sends it
into the display section via specific channels.
WORK COUNTER (6)
The "operator side" work counter is a continuance of the display
section and it is used by the operator as a counter while he is
preparing the product to be served. lt is made of stainless steel,
and it is fastened to the display section with screws.
CONTROL PANEL (7)
The control panel is the element that manages the operation of
the display case.
This management (temperature control and maintenance,
defrosting) is entrusted to a command switchboard. In any
event, the operator can utilize this component to change the
temperature inside the display section.
7

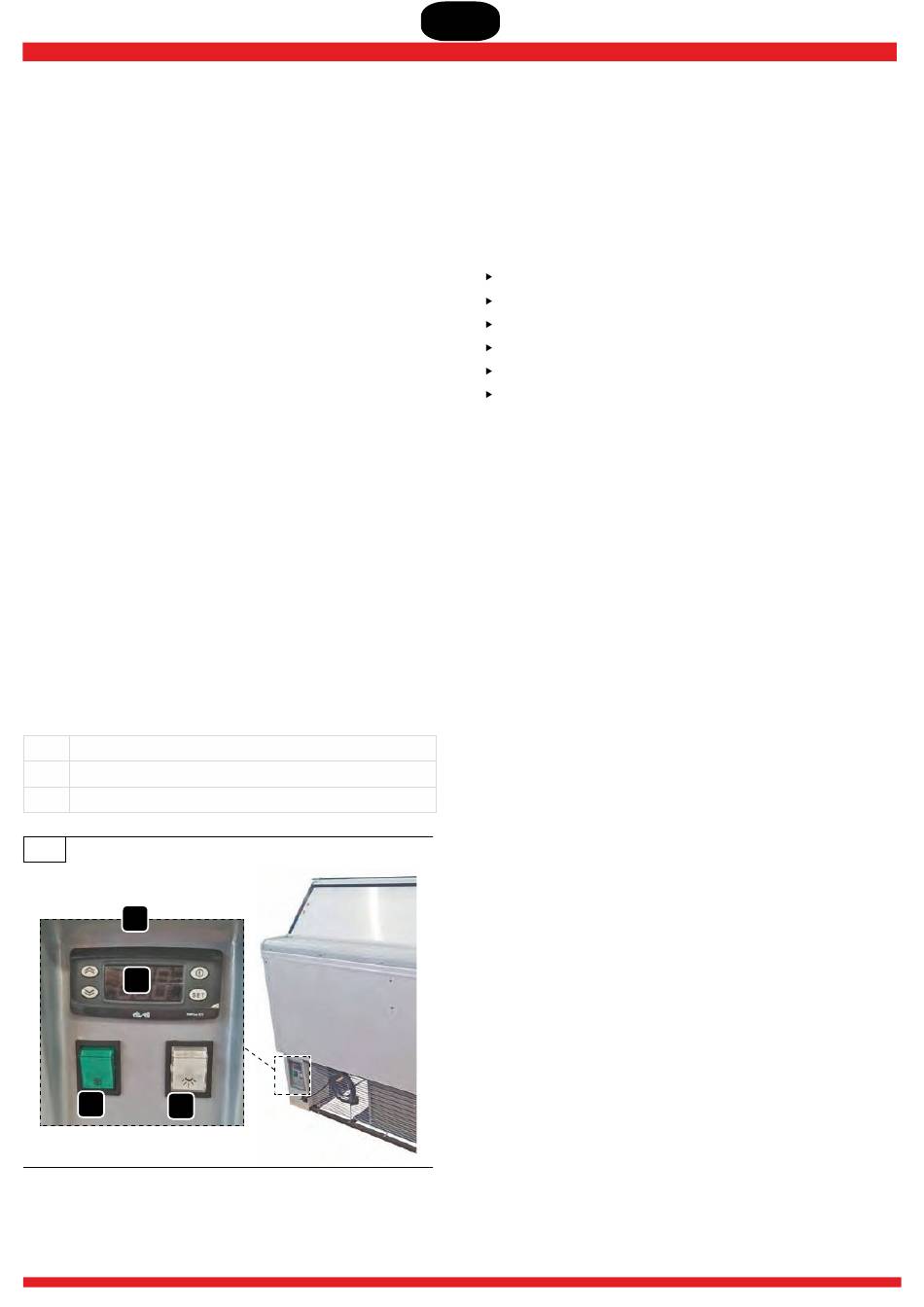

The control panel (Fig. 23) is composed of:
7.1 Electronic control unit for temperature control
7.2 Showcase ON/OFF switch
7.3 Showcase light ON/OFF switch
23
7
7.1
7.2
7.3
UK
MOTOR COMPARTMENT (9)
Only qualified technicians are allowed to access it,
observing safety and maintenance regulations.
The motor compartment is located in the lower section of the
display case and all the components required for machine
operation are positioned together in a unit referred to as the
condenser unit.
The main components of the condenser unit are:
Compressor
Condenser
Fan
Condensation evaporation tub
Solenoid valve
Filter
The motor compartment is protected by a casing and grid that
are bolted on to ensure maximum safety. In particular, during
normal operation no one is able to access it and come into
contact with live or moving elements.
