- Page 1 User Manual ENGLISH DC/AC Microprobe Models K100 & K110 CURRENT PROBES E N G L I S H WITH AEMC INSTRUMENTS ®...
- Page 2 (but not limited to) physical, emotional or monetary damages due to lost revenues or lost profits that may result from the use of this documentation, whether or not the user of the documentation has been advised of the possibility of such damages. DC/AC MicroProbe Models K100 and K110...
- Page 3 Serial #: Catalog #: 1200.67 / 2111.73 Model #: K100 / K110 Please fill in the appropriate date as indicated: Date Received: Date Calibration Due: Chauvin Arnoux , Inc. ® d.b.a AEMC Instruments ® www.aemc.com DC/AC MicroProbe Models K100 and K110...
-
Page 4: Table Of Contents
3.4 SAFETY SPECIFICATIONS ........... 12 3.5 TYPICAL FREQUENCY RESPONSE ........13 4. OPERATION ..............14 4.1 MAKING MEASUREMENTS WITH THE K100/K110 ..... 14 4.2 INDICATOR LIGHTS - GREEN AND RED LEDS ....14 4.3 MODEL K100 OPERATION EXAMPLES ....... 15 4.3.1 DC Current Measurement Example... - Page 5 5. MAINTENANCE ..............23 5.1 BATTERY INSTALLATION ............23 5.2 CLEANING ................24 5.3 REPAIR AND CALIBRATION ..........25 5.4 TECHNICAL AND SALES ASSISTANCE ......25 5.5 LIMITED WARRANTY ............. 26 5.5.1 Warranty Repairs .............. 26 DC/AC MicroProbe Models K100 and K110...
-
Page 6: Introduction
Example: hardwired equipment in fixed installation and circuit breakers. CAT II corresponds to measurements performed on circuits directly con- nected to the electrical distribution system. Example: measurements on household appliances and portable tools. DC/AC MicroProbe Models K100 and K110... -
Page 7: Precautions For Use
• Use caution on any circuit: Potentially high voltages and currents may be present and may pose a shock hazard. • Read the Safety Specifications section prior to using the Model K100/ K110. Never exceed the maximum voltage ratings given. -
Page 8: Product Features

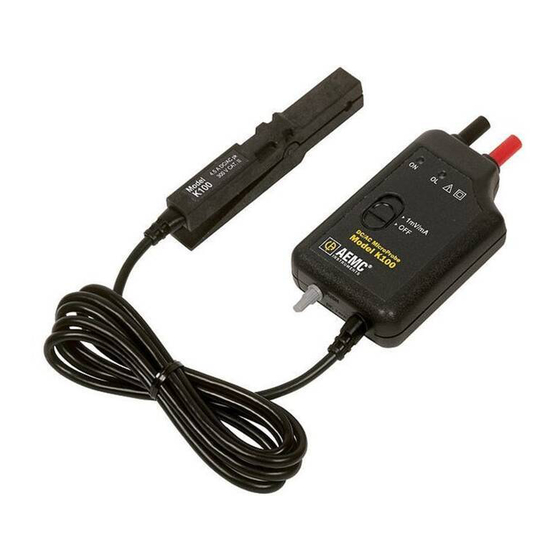

The K110 has an operating range of 100µA to ± 450mA Peak, from DC to 1500Hz.* Models K100 and K110 are designed to be operated in conjunction with a digital multimeter, oscilloscope or recording device. The MicroProbe out- puts the current measured in the form of a voltage that is the image of the current, in shape and amplitude. -
Page 9: Model K100 Features
Positive: Red banana plug (+) Negative: Black banana plug (-) Power ON indicator (green LED) OVERLOAD indicator (red LED) Power switch Zero adjust knob (push in and turn to zero) Probe window aperture Probe handle DC/AC MicroProbe Models K100 and K110... -
Page 10: Model K110 Features
Positive: Red banana plug (+) Negative: Black banana plug (-) Power ON indicator (green LED) OVERLOAD indicator (red LED) Power switch Zero adjust knob (push in and turn to zero) Probe window aperture Probe handle DC/AC MicroProbe Models K100 and K110... -
Page 11: Specifications
Fall Time: < 200 µS, (90 to 10) % Vout Output Impedance: 200 Ω Probe Inductance: < 1 µH Influence of Adjacent Conductor: < 50 µA/A (K100); <1 00 µA/A (K110) Influence of Earth’s Field: < 120 µA, null to maximum Overload LED (Red): Indicates momentary or continuous overload Power LED (Green): Indicates power ON and good battery LED (Green) ON between (6.5 to 10)V... -
Page 12: Environmental Specifications
Drop Test: 1 m per IEC 1010 Shocks: 100 G per IEC 68-2-27 Vibrations: IEC 529 Protection Index: IP 40 per IEC 529 Electromagnetic Compatibility: EN 50082-1 class A EN 50081-1 *All specifications are subject to change without notice. DC/AC MicroProbe Models K100 and K110... -
Page 13: Typical Frequency Response
Frequency (Hz) -0.5 -1.0 -1.5 30 mA -2.0 3.0 A -2.5 -3.0 -3.5 -4.0 Figure 3 Model K110 Frequency (Hz) -0.5 -1.0 -1.5 0 - 300 mA RMS -2.0 -2.5 -3.0 -3.5 -4.0 Figure 4 DC/AC MicroProbe Models K100 and K110... -
Page 14: Operation
Readings taken while the Red LED is ON or FLASHING should be considered inaccurate. Momentary or continuous currents exceeding ± 4.7 A for Model K100 and 470 mA for Model K110, and dynamic currents with large step discontinuities will cause the red LED to turn ON. -
Page 15: Model K100 Operation Examples
4.3.2 DC Current Measurement Example - Current Reversed (K100) • Conductor carrying 20.0 mA in opposite direction of arrow • Voltmeter placed in DC Volts mode • Voltmeter displays -20.0 mV -20.0 20 mA DC PUSH DC Zero Figure 6 DC/AC MicroProbe Models K100 and K110... -
Page 16: Two-Wire Sum-Of-Currents Example (K100)
(K100) • Two conductors in probe aperture (note orientations) • Voltmeter placed in DC Volts mode • Voltmeter displays - 4.0 mV -4.0 7 mA DC 11 mA DC PUSH DC Zero Figure 8 DC/AC MicroProbe Models K100 and K110... -
Page 17: Oscilloscope Measurement Example (K100)
4.3.5 Oscilloscope Measurement Example (K100) • Conductor carrying a 2 A peak AC waveform • Model K100 connected to oscilloscope To Oscilloscope 2.0 V -2.0 V Current Waveform Oscilloscope 2.0 A Output • 1 mV/mA • OFF AEMC ® DC/AC MicroProbe... -
Page 18: Model K110 Operation Examples
4.4.2 Measuring the AC Component of an (AC+DC) Waveform (K110) • Conductor carrying 20.0 mA + 15.0 mA • Voltmeter placed in AC Volts mode • Voltmeter displays 150.0 mV 150.0 15 mA AC 20 mA DC PUSH DC Zero Figure 12 DC/AC MicroProbe Models K100 and K110... -
Page 19: Oscilloscope Measurement Example (K110)
Here are some key considerations for getting the most accuracy from your displaying instrument: • When using the Model K100/K110 with a meter, it is important to select the range that provides the best resolution. Failure to do this may result in measurement errors. - Page 20 DC Zero 16.7mA Figure 14 Model K110 Resolution: 1mV Resolution: 10mV Resolution: 100µV Display Error: 0% Display Error: 0% Display Error: 1.8% PUSH PUSH PUSH DC Zero DC Zero DC Zero 16.7mA Figure 15 DC/AC MicroProbe Models K100 and K110...
- Page 21 • Do not allow probe jaws to abruptly snap closed from the open state. This can lead to residual readings. If this happens, the Model K100/ K110 will need to be rezeroed. • Beware of short-circuit currents. Large in-rush currents (which can occur when power is first applied in a circuit) and large high-current transients may cause varying degrees of residual readings.
-
Page 22: Residual Readings Following Severe Overloads
4.6 RESIDUAL READINGS FOLLOWING SEVERE OVERLOADS Large short-circuit and transient currents outside the operating range of the Model K100/K110 may cause large residual readings. In extreme cases, the Model K100/K110 will not zero. If this happens: • Remove the probe from the test conductor. -
Page 23: Maintenance
OFF and disconnect the unit from all circuits before opening the case. 5.1 BATTERY INSTALLATION Your Model K100/K110 has been shipped with a new 9 V battery installed. To replace the battery: • Remove probe from any conductor and place it away from any active conductors, circuitry, etc. -
Page 24: Cleaning
4. Repeat step (3) several times, using a new (dry) section of paper each time. 5. Open probe and inspect mating surfaces. They should be free of dust particles or any other contamination. Otherwise, repeat the cleaning process starting again at Step (1). Figure 17 DC/AC MicroProbe Models K100 and K110... -
Page 25: Repair And Calibration
Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® Phone: (800) 343-1391 (Ext. 351) Fax: (603) 742-2346 E-mail: techsupport@aemc.com www.aemc.com DC/AC MicroProbe Models K100 and K110... -
Page 26: Limited Warranty
Instruments, not by the distributor from whom it was purchased. ® This warranty is void if the unit has been tampered with, abused, or if the defect is related to service not performed by AEMC Instruments. ® Full warranty coverage and product registration is available on our website at www.aemc.com/warranty.html... - Page 27 NOTES: DC/AC MicroProbe Models K100 and K110...
- Page 28 03/23 99-MAN 100091 v16 AEMC Instruments ® 15 Faraday Drive • Dover, NH 03820 USA Phone: (603) 749-6434 • (800) 343-1391 • Fax: (603) 742-2346 www.aemc.com © Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All Rights Reserved. ® ®...
