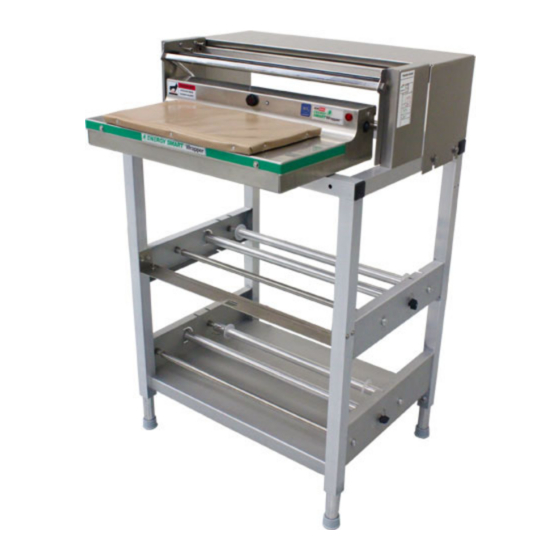

- Page 1 Wrapping Machine Model SE-US-200ESD6 Item 47480 Instruction Manual Revised - 09/22/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model SE-US-200ESD6 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications ---------------------------------------------------------------------- 5 - 7 Installation and Operation ------------------------------------------------------------------------ 7 Maintenance ------------------------------------------------------------------------------------- 7 - 8 Troubleshooting -------------------------------------------------------------------------------- 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
Safety and Warranty Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either Omcan authorized service depot in the area, or to Omcan Service warehouse to repair the equipment. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. - Page 6 Technical Specifications • Heat Seal tests all seal plates before they ship. • Due to the advancement of this technology, it is important to maintain the non-stick cover in good condition. It is recommended to replace the cover once every 3 months to maintain a sanitary surface. HOT ROD HEAT UP •...
-
Page 7: Installation And Operation
Technical Specifications THERMISTOR TEMPERATURE CONTROL • Due to the rapid response of the seal plate and residual heat that can remain from previous cycles, a thermistor is incorporated as a temperature control device. The heat cycle can be shorter than 3 seconds when residual heat is present in the seal plate. -
Page 8: Troubleshooting
Maintenance • The seal plate can be cleaned with a mild degreaser. Spray the degreaser onto a soft rag or paper towel and clean the plate while cool. CLEANING THE CUT OFF ROD • Make sure that the unit is turned off and the cut off rod is cool to the touch. •... - Page 9 Troubleshooting Unit has power but the seal Verify power. Does the LED light turn ON when photo eye is triggered? plate does not work. 1. If neither the LED or seal plate work, verify that the 20A circuit breaker has not tripped. 2.
-
Page 10: Parts Breakdown
Parts Breakdown Model SE-US-200ESD6 Major Assembly 47480... - Page 11 Parts Breakdown Model SE-US-200ESD6 Electrical Box 47480...
- Page 12 Parts Breakdown Model SE-US-200ESD6 Major Assembly 47480 Item No. Description Position Item No. Description Position Item No. Description Position Cover with Non-Stick Coating 6x15 for Stainless Steel Wrapping Bridge for 28511 AK517 Hot Rod Replacement Kit for 47480 AK519 47480...
-
Page 13: Electrical Schematics
Electrical Schematics Model SE-US-200ESD6 47480... -
Page 14: Notes
