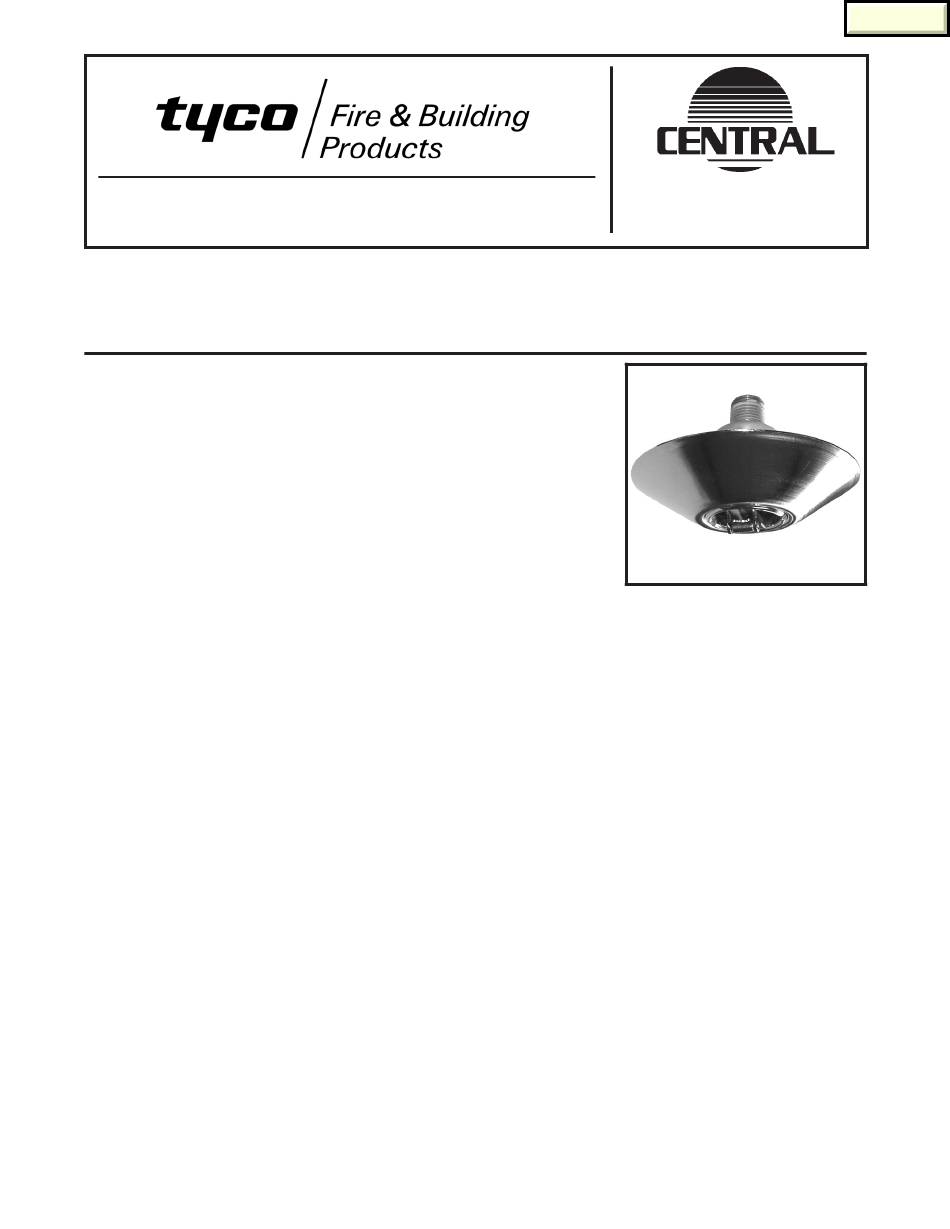

Model TFP PH2 — 5.6 K-factor
Institutional Pendent Sprinklers
Standard Response, Standard Coverage
General
Description
The Model TFP PH2, 5.6 K-factor, In-
stitutional Pendent Sprinklers are
standard response - standard cover-
age, fusible solder type spray sprin-
klers designed for use in areas such as
correctional, detention, and mental
health care facilities.
The unique features of the Model TFP
PH2 provide a tamper resistant sprin-
kler design that helps eliminate the
opportunity for individuals to injure
themselves or others with the compo-
nents of a fire sprinkler. At the same
time, the Model TFP PH2 optimizes an
aesthetically appealing flush design
that conceals most of the operating
parts.
WARNING
The Model TFP PH2 Institutional Pen-
dent Sprinklers described herein must
be installed and maintained in compli-
ance with this document, as well as
with the applicable standards of the
National Fire Protection Association,
in addition to the standards of any
other authorities having jurisdiction.
Failure to do so may impair the integ-
rity of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted relative to
any questions.
Page 1 of 4
Sprinkler
Identification
Number
SIN TY3290
Technical
Data
Approvals
UL and C-UL Listed.
(Refer to the Design Criteria section.)
NYC under MEA 351-01-E.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connection
1/2 inch NPT
Discharge Coefficient
1/2
K = 5.6 GPM/psi
1/2
(80,6 LPM/bar )
Temperature Ratings
140°F/60°C,
165°F/74°C, or
212°F/100°C
Finishes
Sprinkler: Chrome Plated
Escutcheon: Chrome Plated
Physical Characteristics
Body . . . . . . . . . . . . . . Brass
Deflector . . . . . . . . . . . . Bronze
Deflector Reinforcement . . . . . . .
. . . . . . . . . . . . . . . . Bronze
Deflector Post . . . . . . . . . Bronze
Deflector Post Pin . . . . . . Bronze
Deflector Core . . . . . . . . Bronze
Compression Screw . . . . . Bronze
Lever . . . . . . . . . . . . . Bronze
Release Spring . . . . . . . . Bronze
Core Sleeve . . . . . . . . .
Sealing Assembly . . . . . . . . . . .
. . . . . . Beryllium Nickel w/ Teflon*
Fusible Element . . . . . . . . . . . .
. . . Solder, Copper, Stainless Steel
Dust Cover . . Chrome Plated Steel
JANUARY, 2003
Customer Service/Sales:
Tel: (215) 362-0700 / (800) 523-6512
Fax: (215) 362-5385
Operation
In the standby condition, the design of
the Model TFP PH2 is such that a
suspended load of 80 lbs. (36 kg) or
more applied to the linkage mecha-
nism will release the sprinkler. Also,
when properly installed, the escutch-
eon is held fast to the ceiling to deter
its removal. The shape of the escutch-
eon cannot be easily grasped, which
further deters tampering.
A fusible solder operating element se-
cures the linkage mechanism of the
Model TFP PH2. When the rated tem-
perature is reached, the solder melts
releasing the linkage mechanism that
holds the sprinkler closed. This allows
the deflector to extend downward and
water to flow.
Design
Criteria
Copper
The 5.6 K-factor, Model TFP PH2 (SIN
TY3290) Institutional Pendent Sprin-
klers are intended for use with fire pro-
tection systems designed in accord-
ance with the standard installation
rules recognized by the applicable
Listing or Approval agency (e.g., UL
Close
TFP650
